Yamaha DX-5 (1985)
Digital Programmable Algorithm Synthesizer



A cut-down version of mighty FM king DX-1 that would lead to best-seller synth DX-7.

The DX-5 can combine 2 engines, so it is often considered as double DX-7 engine ... with some extras!.

logo
edit

info SYNTHESIZER 76 dynamic keys with aftertouch.
Main panel features a backlit 40 x 2 LCD display, 4 sliders, 66 push buttons and 2 wheels for modulation and pitchbending.

Rear
panel terminal connectors:
- 3 non-balanced outputs part A / part B / mix A-B
- 3 XLR balanced outputs part A / part B / mix A-B
- 2 pedalswitch inputs for portamento and sustain
- 2 foot controller inputs for modulation and volume
- Midi interface

Front panel termina connectors:
- headphones out (with volume trimmer)
- breath controller input
- 2 data catridge inputs





edit TECH CPU based on a master 6809 (HD68B09P +2 sub-slaves) - a double FM syntesis engine (A/B) manages up to 32 digital voices polyphony (organized in to 16 X 2) ADC converter is based on BA9221, 12 bits resolution, also fitted on DX7.

STRUCTURE
Main FM YM2128 generate 6 syncable sinewave oscillators (+YM2129 IC for EG) or operator each with individual volume settings and pitch detune.

polyphony



edit SYNTHESIS OP FM synthesis generates 6 sinewave operators organized as algorithms, assigned as carrier or modulator, linked between them on different pathways interacting on their harmonic contents depending on the variable feedback strength.

alg

Carrier defines the amplitude and the spectral frequency - Modulator sets the sound timbre and the relative harmonic contents.




edit ALGORITHMS
DX5 features 32 algorithms with frequency ratio or fixed frequency.
The output is fed back to its input with 7 different levels feedback, as general rule: high values feedback results in richer harmonic contents.
fm


lfo LFO 2 digital modulators (shapes: sine, triangle, saw up/down, square and sample & hold) with adjustable start delay and sync retrigger:

LFo - PMD modulates pitch
- AMD processes the amplitude.





adsr ENVELOPE
up to 7 envelopes:

EG - 1 EG pitch: 4-segments structure + 4 time levels.

- 1 EG for each operators: 4-segments structure + 4 time levels

The Scaling Level is a very precise key follower with 4 linear / exponential curves




lfo PERFORMANCE
the bi-timbric structure allows some special fantastic playmodes:

- single : part A/B play same patch for a total of 32 voices
-
dual : stacks 2 parts with possible DETUNE
- split: part A/B are assigned to an adjustable keyzone.
- balance: sets mixing between A/B (in dual or split mode)
- monophonic mode
- portamento: 4 different modes with variable glide time
- aftertouch can be assigned to amplitude/pitch modulation depth, volume and brillance.
performance




memory MEMORY:
- 32 RAM patches for EACH part A/B
- 64 RAM performances COMBI.
System works with soldered CR2032 3V battery.
TIP: DX-5 uses same DX7 RAM1 cartriges for backup and library sounds.



lfo EDIT there is only 1 editor for specific bitimbric features, the MIDIQUEST.
However there are plenty of other compatible standard DX7 editors:
- Atari ST: Dx-android, Dx expert or caged ST

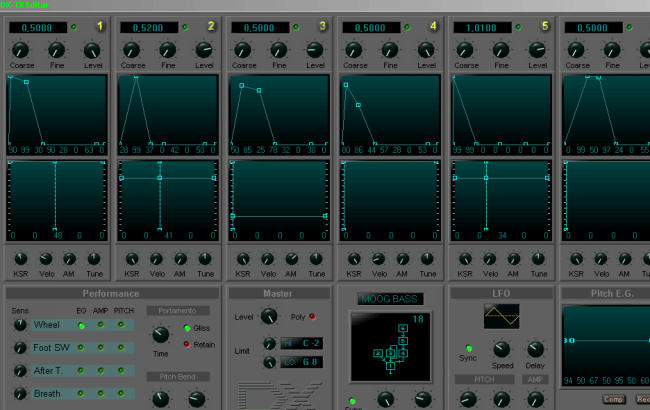

- PC: Soundiver, Midiquest, DX-manager, Synlib ...
- MSX: YRM 103 -102 cartridge Voicing program also YRM304
- IOS: Yamaha DX7 /TX7 / TX816 Editor

thumb






edit
RELATED FAMILY:


LINKS: TX802 - Tx816 - Tx7 - Sy99 - DX200 - DX7 -

dx7 family tree




effet VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

dexed VST plugin -DEXED
-MDA DX10

-OXE FM SYNTH
-VX7
-HEXTER

free VST

dexed




demo
AUDIO DEMO

demo classic rhodes
demo arpeggio bass
demo another arpeggio
demo hellraiser carillon
demo softpad
demo texture pad
demo fat cat
demo split balance time
demo edm simple
demo dirty
demo bass + sinewave
demo ambient DX
demo drum split
demo




video VIDEO SELECTION

demo1 demo2 demo3
DX tines with Yamaha RX-5 Circuit bent modular



Company: Yamaha
Model: DX-5
Class: Synthesizer
Keys: 76 dynamics
Display: 40 x 2 LCD

Dates: 1985
Synthesis: FM
FM Class: 6 Op
Algorithms: 32 models
Polyphony: 32 voices
Multitimbric: 2 parts
Filter: none
LFO: 2 modulators
Envelope: 7 EGs
Effects: none
Sequencer: none
Midi: IN / OUT / THRU
CPU: 6809
