Roland PG300







roland pg300
info Country: Japan
Weight: 1,7 kg
Dimensions: na
audio demo trend price : 250€
manual demo video comments

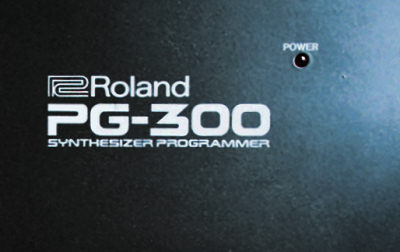

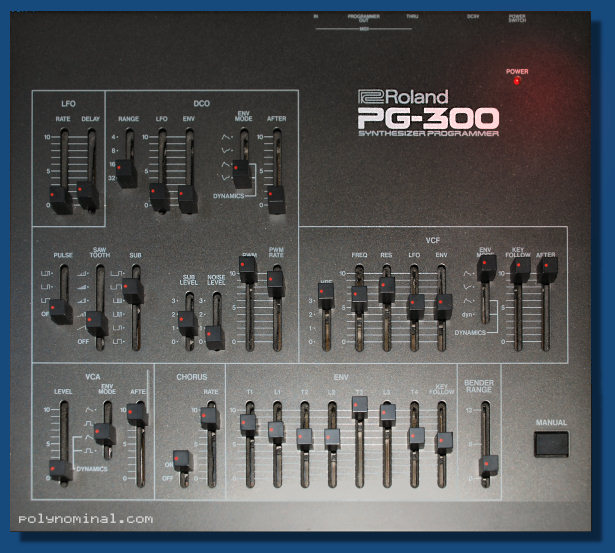

Roland PG-300
Alpha juno programmer



Programmer simply generates Midi exclusives strings that enhances Apha Juno series real-time tweaks controls.

Finally some real-time controls, but these PG are now quite hard to find out on the market.

alpha juno waveforms
DCO

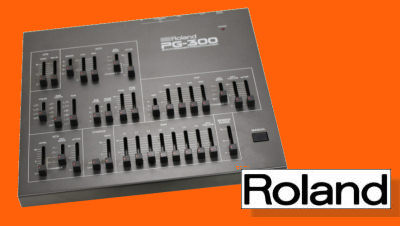

info PROGRAMMER Unit features 30 sliders for total control and no display (anyway it is not necessary).

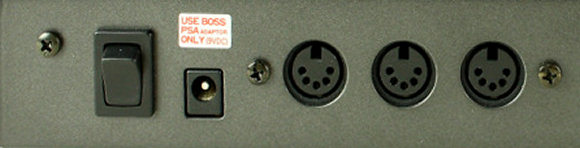

Back panel terminal connectors:
- Midi input
- Midi ouput
- Midi thru

info Power supply is external PSU with standard 9V negative in center polarity.





edit MIDI the PG generates Sysex Midi strings that quicken edit process: no more submenus or other deep hidden sections, a breeze!

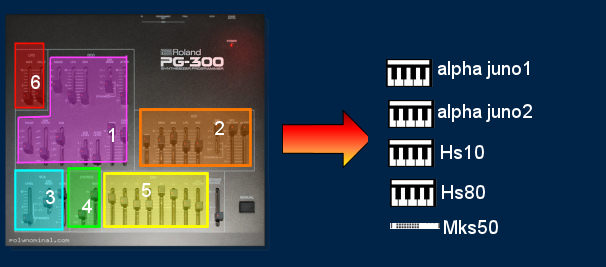

The PG300 is organized into 6 main sections:
1- DCO oscillators
2- filter VCF
3- amplifier VCA
4- effect chorus
5- ENVELOPE EG
6- LFO modulation



roland pg300 tech

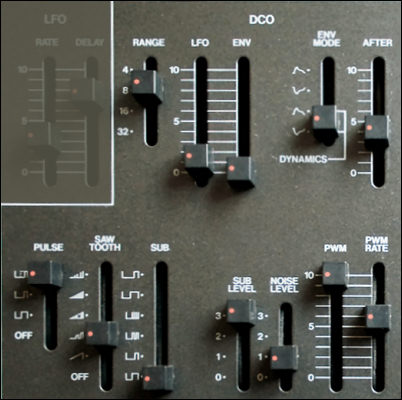

edit OSCILLATOR: defines the DCO parameters including waveforms, shape widht suboscillator, noise and DCO lfo settings.

alpha juno editor

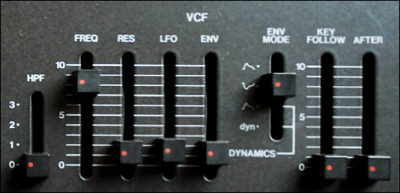

edit FILTER : defines the VCF parameters including: resonance, cutoff, highpass amount, VCF Eg mode and keyfollow amount-


VCF

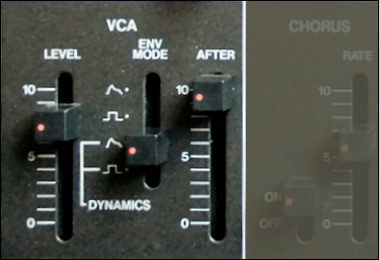

edit VCA : defines the VCA parameters including: the level, the envelope mode and aftertouch settings.


VCA

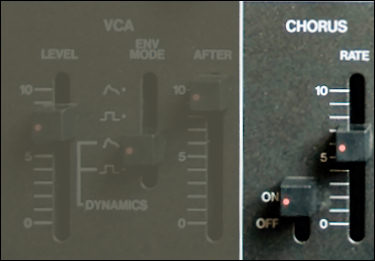

edit FX : defines the amount and rate of internal chorus based on BBD.


chorus

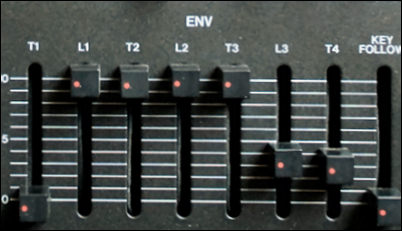

edit EG : defines the 4-stages + 3 time levels with polarity inversion EG:


chorus

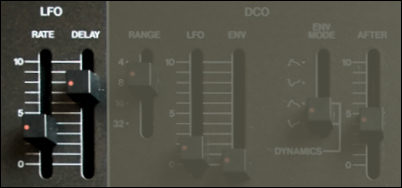

edit LFO : defines the modulator frequency and start-delay amount.


chorus

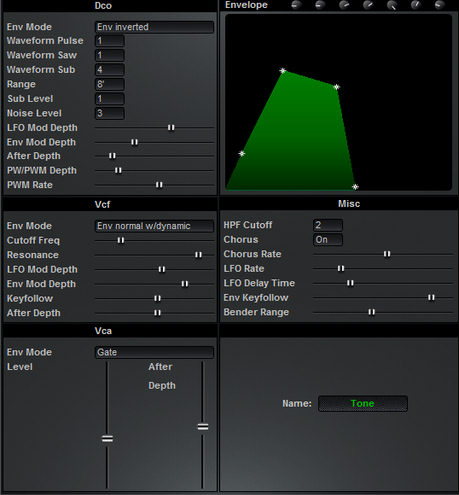

edit ALTERNATIVE TO PG300: if you don't manage to get the PG300 for your synth or module, there are some software based programs that badly helps and quite replace the hardware programmer.

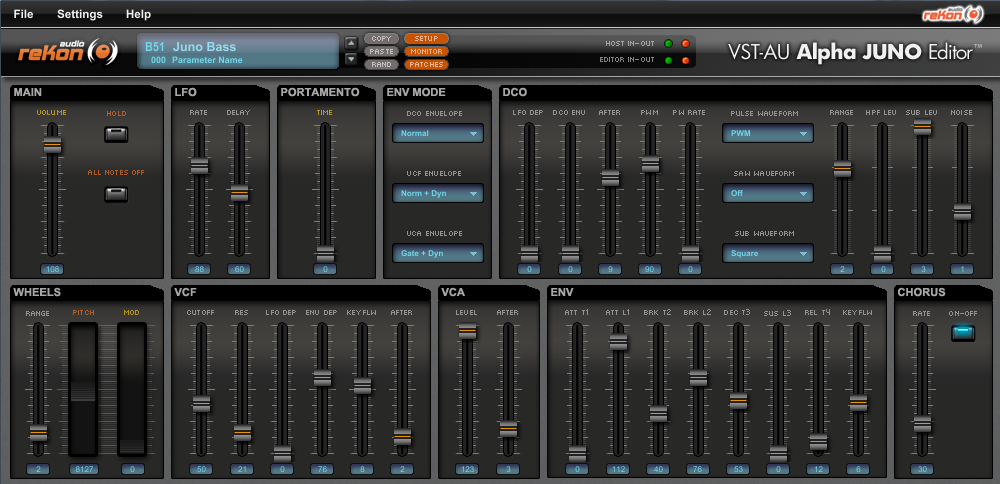

- VST AU Alpha JUNO Editor (MAC-PC / $$) PIC
- Midiquest (MAC-PC / $$) PIC

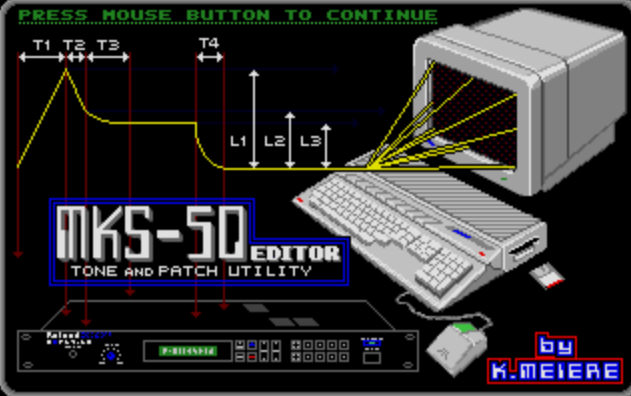

- MKS-50 (Atari ST / freeware now) PIC

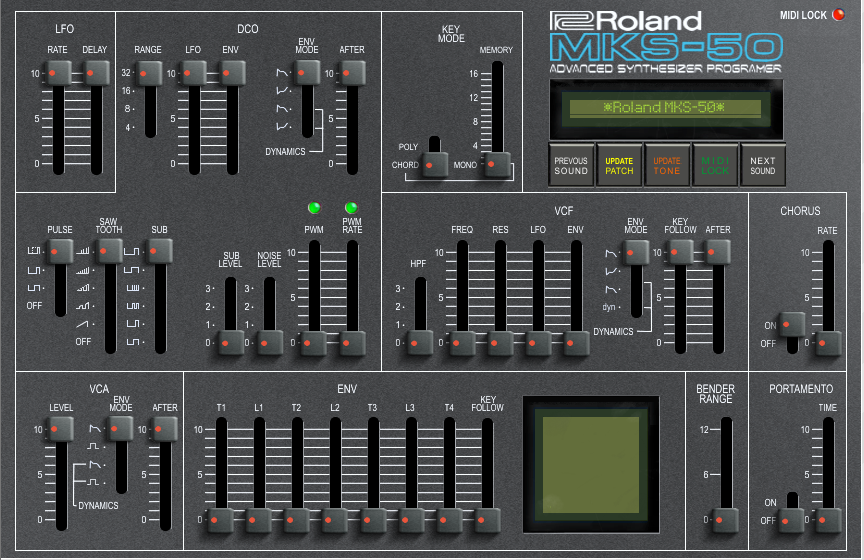

- CTRLR (MAC-PC-LINUX / free) PIC
- Alpha BASE (PC / free) PIC

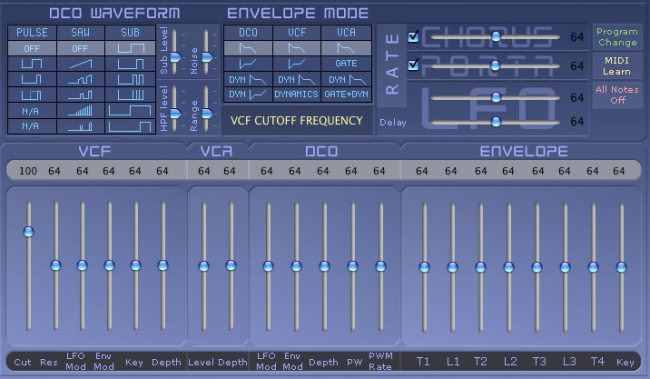

- Alpha Juno Control (MAC / free) PIC below.



alpha juno editor



family RELATED MODELS :

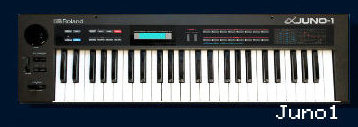

Alpha Juno 1 Alpha Juno 1 smaller version with 49 keys (no velocity) and no cartridge port.

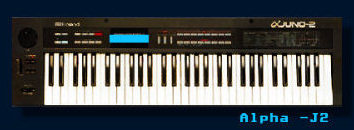

Alpha Juno 2 Alpha Juno 2

ALPHA JUNO1 VS ALPHA JUNO2:

Ju2 is bigger with 5 octave keyboard velocity and aftertouch sensitive keys
MKS-50 MKS-50 rack unit with some enhancements like Detuning, Portamento and a double RAM memory.
HS-80 HS-80 consumer version of alpha Juno2 with different outfit.
HS-10 HS-10 - an alpha juno1 with different case.

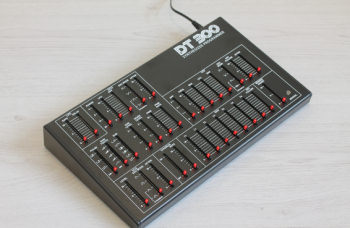

Dtronics DT300 i Dtronics DT300 is a modern Pg300 clone made by third part company.




demoAUDIO DEMO

demo SANXION (track overdub) with TR-606
demo Performance 1 + drum samples
demo Performance 2 + drum samples
demo Performance 3 + drum samples
demo Performance 4 + drum samples
demo Performance 5 + drum samples
demo Performance 6 + drum samples
demo Organ: b3 even more poor
demo Harpsichord: like a 8 bits
demo Piano: analog poor
demo Clavinet: naaaa
demo Bass: funky
demo Bass: mooga
demo Bass: razor
demo Bass: jumpy
demo Bass: soft quiet
demo Bass: attack
demo Drums: analog kit
demo Drums: timpani
demo FX: scary ohhhhohhhh LOL
demo Ambient: chill
demo Ambient: space
demo Ambient: system
demo Pad: murky
demo Pad: chorus
demo Pad: time bandit
demo String: LFO movement
demo String: very simple
demo Synth: WOOObled
demo Synth: what's a hoover?
demo Synth: Drill
demo Synth: droning
demo Synth: melodie d'amour
demo Synth: rate by rate
demo Synth: resonance up
demo Synth: square world
demo Synth: slippery when dry
demo XP: waveforms all pulses
demo XP: suboscillators waves
demo XP: sawtooth width
demo XP: pulse width
demo XP: white noise and filter
demo XP: lowpass and resonance
demo XP: highpass mode filter
demo XP: LFO all shapes
demo XP: Chorus BBD


effet Soundcloud Alpha Juno1

demo1 3 tracks 3 tracks


video VIDEO CLIP SELECTION

Roland mks-50 & pg-300 Rare Roland PG-300 Programmer for Alpha Juno 1 & 2 Roland MKS-50 & PG-300 test
Roland mks-50 & pg-300 Programmer for Alpha Juno 1 & 2 Roland MKS-50 & PG-300 test





roland aplha juno pic
Alpha juno with mimi the synthcat




















manual
ROLAND PG300 MANUAL










pg300 demo
SERVICE MANUAL




original scan





original scan








Roland PG300 For sale:

Roland PG300 For sale
CHECK OUT EBAY OFFERS

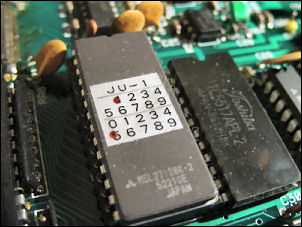

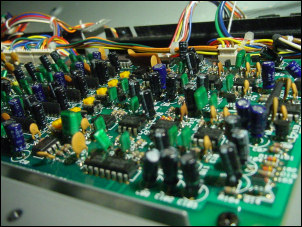

roland epom pg300 demo alpha juno motherboard


manual

-access all parameters in a breeze!

manual

-overpriced

comment
REVIEW "Handy tool for alpha Juno and mks-50 fans. keep in mind that an external editors can do this more. PG is nice but not essential. Worth a buy at a good price."
