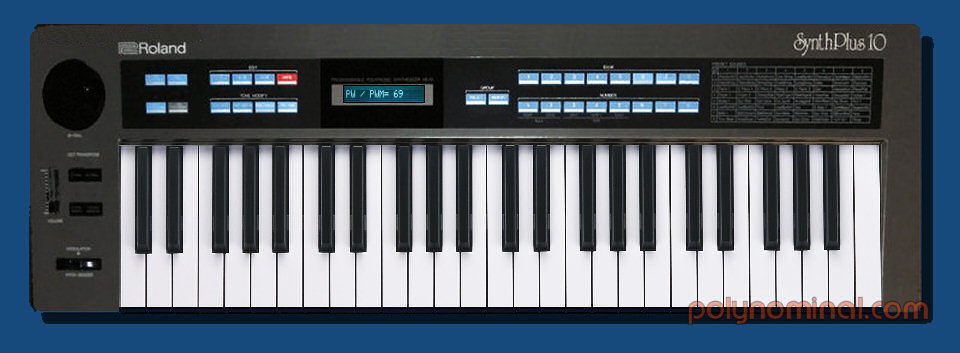

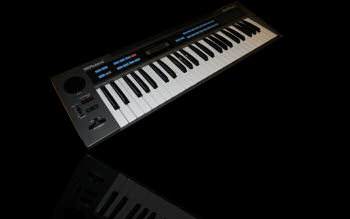

Roland HS-10
Synthplus 10 (1987)



Consumer version of the famous ALPHA JUNO technically the same with different outfit.

Quite a rare version !



roland hs10

DCO

info KEYBOARD 49 keys with no velocity.
The main panel features an LCD display, 36 buttons and a data wheel "Alpha Dial". On the left side a joystick that acts as both pitch bender and modulation functions.

Rear panel terminal connectors:
- Midi interface
- tape interface
- main signal out
- headphones out
- expression pedal assignable to volume / aftertouch / velocity
- assignable pedalswitch: patch up / portamento on-off / chord memory
- hold pedalswitch input.





edit VOICE CPU Intel MCS-51 P8032AH manages up to 6 voices polyphony.
Each voice has an assigned DCO oscillator based on custom Roland IC MB87123PG and each DCO is composed 2 summable waveforms + 1 sub oscillator + 1 noise generator:

roland mks50 tech



edit WAVEFORMS OSCILLATOR DCO DETAILS:

wave Harmonic variations: Level width: range:
pulse 3 - yes (3rd shape) 4' 8' 16' 32'
saw 5 - yes (3rd shape) 4' 8' 16' 32'
suboscillator 5 yes - 1 / 2 oct below
white noise 0 yes - -
demo HEAR waveforms all pulses
demoHEAR suboscillators waves
demoHEAR pulse width
demoHEAR sawtooth width




filter FILTERFILTER multimode VCF based on 6 X IR3R05 IC (also VCA), the VCF also provides a 15-levels keytracking system.

IC filter

- lowpass at -24dB/Oct : with resonance that does not reach auto-oscillation demo
- highpass: 4 scaled values demo




adsrLFO
a single delayed modulator and 2 destinations with individual depth values:

lfo

- LFO to DCO pitch
- LFO to DCO VCF filter.
demo HEAR LFO all shapes




adsrENVELOPE
a single 4-stages + 3 time levels with polarity inversion EG-
In addition the VCA provides a 15-levels keytracking system

DCO EG

- DCO pitch
- VCF filter cutoff
- VCA amplitude with special gate mode




adsr
PERFORMANCE monotimbric synth with some special functions:

- octave transpose keyboard
- portamento
- chord mode learn (it outputs Midi)
- bender range 1 octave setting
- key transpose
- 15 aftertouch levels (by Midi IN) assignable to VCF / DCO / VCA.
Hs10 tech



fxEFFECT section features an analog stereo chorus based on MN3101 + MN3009 IC like Juno-60 or Jx-3p with adjustable rate

chorus

demo HEAR chorus mode on/off




memory MEMORY:
- 64 ROM presets
- 64 RAM slots.
Sounds must be saved to magnetic tape or Midi exclusives data dump

solder battery

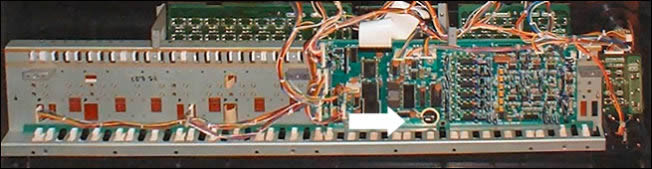

ABOVE: BATTERY REPLACEMENT - change lithium battery model CR-2032 soldered to the mainboard.






edit EDIT main panel lacks many real-time commands, but there are many computer software or it is possible to use the dedicated optional programmer model PG-300.

- VST AU Alpha JUNO Editor (MAC-PC / $$) PIC
- Midiquest (MAC-PC / $$) PIC
- MKS-50 (Atari ST / now freeware ) PIC
- CTRLR (MAC-PC-LINUX / free) PIC
- Alpha BASE (PC / free) PIC
- Alpha Juno Control (MAC / free)
alpha juno editor


family RELATED MODELS :

alpha juno1 Alpha Juno 2 HS-80
Alpha Juno 1 same as HS10 with different case. Alpha Juno 2 5 octave velocity and aftertouch sensitive keyboard HS-80 consumer version of alpha Juno2

MKS-50 PG-300
MKS-50 rack unit with some enhancements like detuning, Portamento and a double RAM memory. PG-300 programmer compatible with all the JUNO series.




effet VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

EFM Oddse

PHUTURA

SMC Joono VST

free VST emulation

phutura vst

odsay REDOMINATOR

commercial VST plugin

redominator



demoAUDIO DEMO

demo Performance 1 + drum samples
demo Performance 2 + drum samples
demo Performance 3 + drum samples
demo Performance 4 + drum samples
demo Performance 5 + drum samples
demo Performance 6 + drum samples
demo Organ: b3 even more poor
demo Harpsichord: like a 8 bits
demo Piano: analog poor
demo Clavinet: naaaa
demo Bass: funky
demo Bass: mooga
demo Bass: razor
demo Bass: jumpy
demo Bass: soft quiet
demo Bass: attack
demo Drums: analog kit
demo Drums: timpani
demo FX: scary ohhhhohhhh LOL
demo Ambient: chill
demo Ambient: space
demo Ambient: system
demo Pad: murky
demo Pad: chorus
demo Pad: time bandit
demo String: LFO movement
demo String: very simple
demo Synth: WOOObled
demo Synth: what's a hoover?
demo Synth: Drill
demo Synth: droning
demo Synth: melodie d'amour
demo Synth: rate by rate
demo Synth: resonance up
demo Synth: square world
demo Synth: slippery when dry
demo XP: waveforms all pulses
demo XP: suboscillators waves
demo XP: sawtooth width
demo XP: pulse width
demo XP: white noise and filter
demo XP: lowpass and resonance
demo XP: highpass mode filter
demo XP: Chorus BBD





video VIDEO SELECTION

Roland Alpha Juno 1 Roland Alpha Juno Techno Demo Track Alpha Juno 1 Hoover
demo1 Techno Demo Track Hoover





Company:Roland
Model: HS-10
Class: Synth
Keyboard: 49 keys
Dates: 1987
Display: LCD
Synthesis: analog
Polyphony: 6 voices
Multitimbric: 1 part
Oscillator: 1 DCO
Filter: analog LP + HP
LFO: 1 modulator
Envelope: 1 EGs
Memory: 128 slots
Effects: analog chorus
Arpeggiator: none
CPU: P8032AH
IC: IR3R05, MB87123PG
OS: latest V2.1
Demo: 50



manual
MANUAL



manual
HS FACTORY PATCH




Roland HS-10 service manual
SERVICE MANUAL






original scan









synthplus



Roland HS-10 synthplus for sale

Roland HS-10 synthplus for sale
CHECK OUT EBAY OFFERS















roland epom demo alpha juno motherboard
