Roland Mks-50
Synthesizer Module (1987)



The MKS-50 is the Alpha Juno module version with some minor enhancements but keeping same sound.

module

roland corp

info RACKMOUNT 1 rack unit.

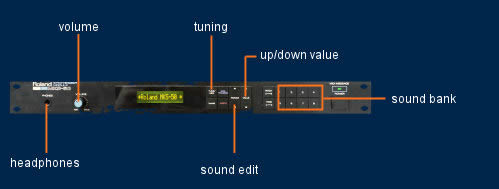

The main panel features a LCD display, 1 knob and 17 buttons.

Rear panel terminal connectors:
- main signal out
- Midi interface
- tape interface

Front panel terminal connectors:
- headphones





edit TECH main 8 bits CPU M80C31 (MSM80C31F) manages 6 voices polyphony.

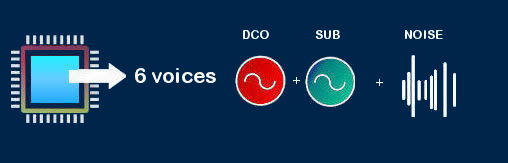

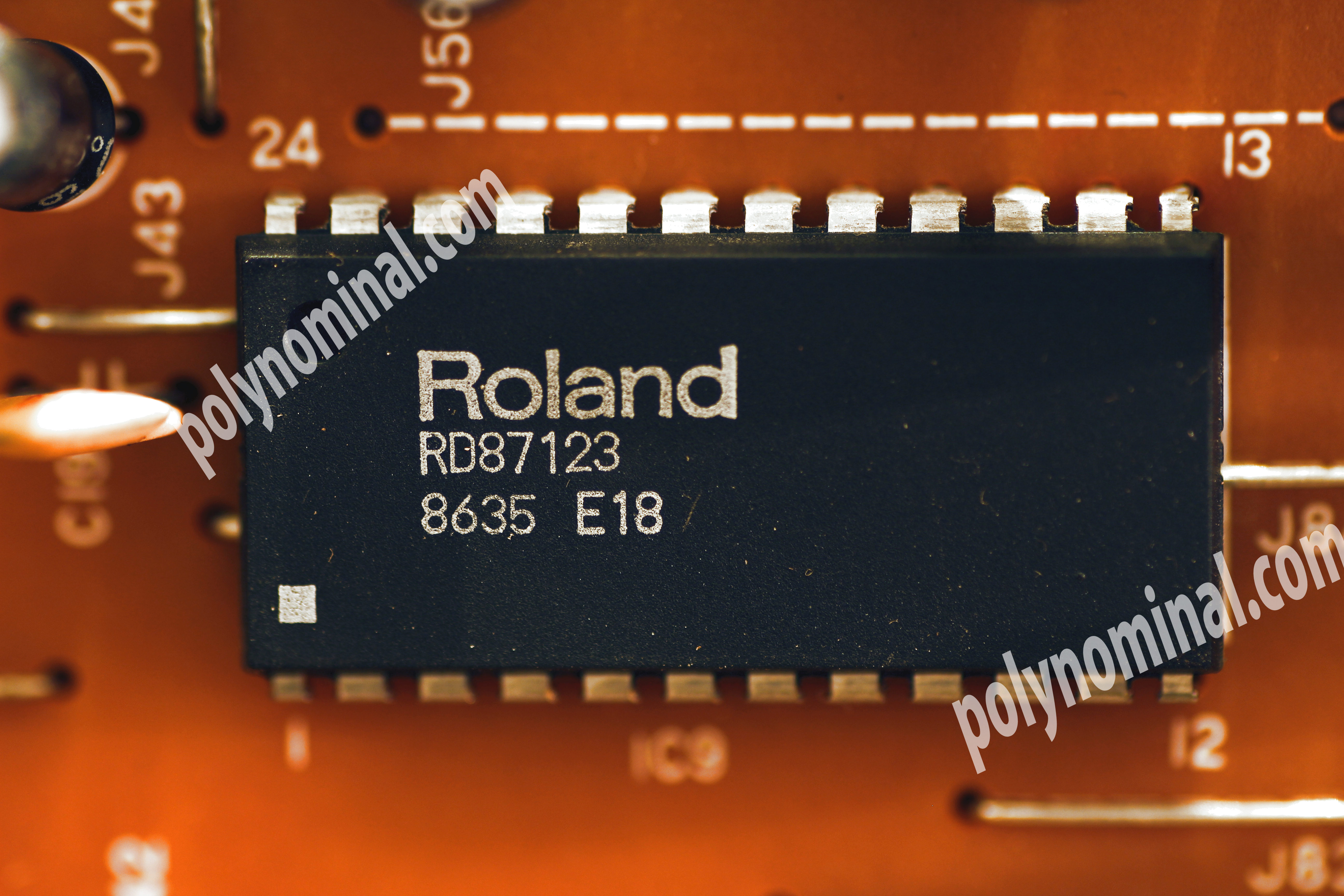

Each voice has 1 assigned DCO oscillator based on custom Roland IC RD87123, and each DCO is composed by 2 summable waveforms + 1 sub oscillator + 1 noise generator

roland mks50 tech




filter OSCILLATOR DCO DETAILS:

wave Harmonic variations: Level width: range:
pulse 3 - yes (3rd shape) 4' 8' 16' 32'
saw 5 - yes (3rd shape) 4' 8' 16' 32'
suboscillator 5 yes - 1 / 2 oct below
white noise 0 yes - -
demo HEAR waveforms all pulses
demo HEAR suboscillators waves
demo HEAR pulse width
demo HEAR sawtooth width






filter FILTER

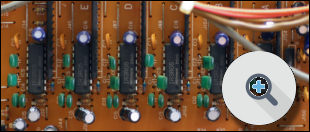

multimode VCF based on 6 X IR3R05 IC (also VCA), the VCF also provides a 15-levels keytracking system.

IC filter

- lowpass at -24dB/Oct : with resonance that does not reach auto-oscillation demo
- highpass: 4 scaled values demo




adsr LFO
a single delayed modulator and 2 destinations with individual depth values:

lfo

- LFO to DCO pitch
- LFO to DCO VCF filter.
demo HEAR LFO all shapes




adsr ENVELOPE
a single 4-stages + 3 time levels with polarity inversion EG-
In addition the VCA provides a 15-levels keytracking system

DCO EG

- DCO pitch
- VCF filter cutoff
- VCA amplitude with special gate mode




adsr
PERFORMANCE monotimbric machine with some special functions:

- octave transpose keyboard
- 15 aftertouch levels (by Midi IN) assignable to VCF / DCO / VCA.
- portamento
- chord mode learn (it outputs Midi)
- bender range 1 octave setting
- key transpose
roland mks50 tech




fxEFFECT
section features an analog stereo chorus based on MN3101 + MN3009 IC like Juno-60 or Jx-3p with adjustable rate:

chorus

demo HEAR chorus mode on/off





memory MEMORY
:
- 128 RAM slots.
- 64 RAM chords
Sounds must be saved to magnetic tape or Midi exclusives data dump

roland mks50 tech

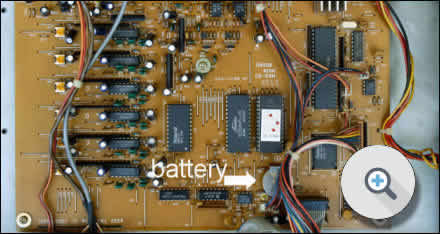

LEFT -BATTERY REPLACEMENT : change lithium battery model CR-2032 soldered to the mainboard.

- Click to enlarge picture -




edit EDIT
main panel lacks many real-time commands, but there are many computer software or it is possible to use the dedicated optional programmer model PG-300.

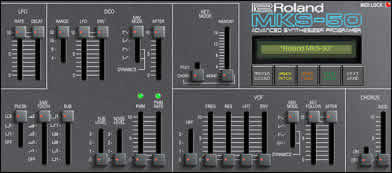

- VST AU Alpha JUNO Editor (MAC-PC / $$) PIC
- Midiquest (MAC-PC / $$) PIC
- MKS-50 (Atari ST / freeware now) PIC
- CTRLR (MAC-PC-LINUX / free) PIC
- Alpha BASE (PC / free) PIC
- Alpha Juno Control (MAC / free
alpha juno editor



edit OS latest is Ver 2.1 11.07.86 burnt into a EPROM

EPROM

LEFT - M5L27128K EPROM with OS - DOWNLOAD BINARY

- Click to enlarge picture -




family RELATED MODELS
:

alpha juno1 Alpha Juno 2 HS-80
Alpha juno1 first of the series 49 keys Alpha Juno 2 5 octave JU1 keyboard velocity and aftertouch HS-80 consumer version of alpha Juno2

HS-10 PG-300
HS-10 - an alpha juno1 with different case. PG-300 this programmer allows to fully edit the MKS module.




effet
VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

EFM Oddse -PHUTURA
-SMC Joono VST

FREE

phutura vst

odsay REDOMINATOR

commercial VST plugin

redominator




demo
AUDIO DEMO

demo Performance 1 + drum samples
demo Performance 2 + drum samples
demo Performance 3 + drum samples
demo Performance 4 + drum samples
demo Performance 5 + drum samples
demo Performance 6 + drum samples
demo FX: scary ohhhhohhhh LOL
demo Organ: b3 analog
demo Harpsichord: like a 8 bits
demo Piano: analog poor
demo Clavinet: naaaa
demo Bass: funky
demo Bass: mooga
demo Bass: razor
demo Bass: jumpy
demo Bass: soft quiet
demo Bass: attack
demo Drums: analog kit
demo Drums: timpani
demo Ambient: system
demo Ambient: chill
demo Ambient: space
demo Pad: murky
demo Pad: chorus
demo Pad: time bandit
demo String: LFO movement
demo String: very simple
demo Synth: WOOObled
demo Synth: what's a hoover?
demo Synth: Drill
demo Synth: droning
demo Synth: melodie d'amour
demo Synth: rate by rate
demo Synth: resonance up
demo Synth: square world
demo Synth: slippery when dry
demo XP: waveforms all pulses
demo XP: suboscillators waves
demo XP: sawtooth width
demo XP: pulse width
demo XP: white noise and filter
demo XP: lowpass and resonance
demo XP: highpass mode filter
demo XP: LFO all shapes
demo XP: Chorus BBD
demo RETRO: SANXION with TR-606



video VIDEO SELECTION

video1 video2 video3
demo1 demo2 demo3

Company:Roland
Model: MKS-50
Class: Module
Rackmount: 1 unit
Dates: 1987
Display: LCD
Synthesis: analog
Polyphony: 6 voices
Multitimbric: 1 part
Oscillator: 1 DCO
Filter: analog LP + HP
LFO: 1 modulator
Envelope: 1 EGs
Memory: 128 slots
Effects: analog chorus
Arpeggiator: none
CPU: M80C31
IC: IR3R05
OS: latest V2.1
Demo: 52
