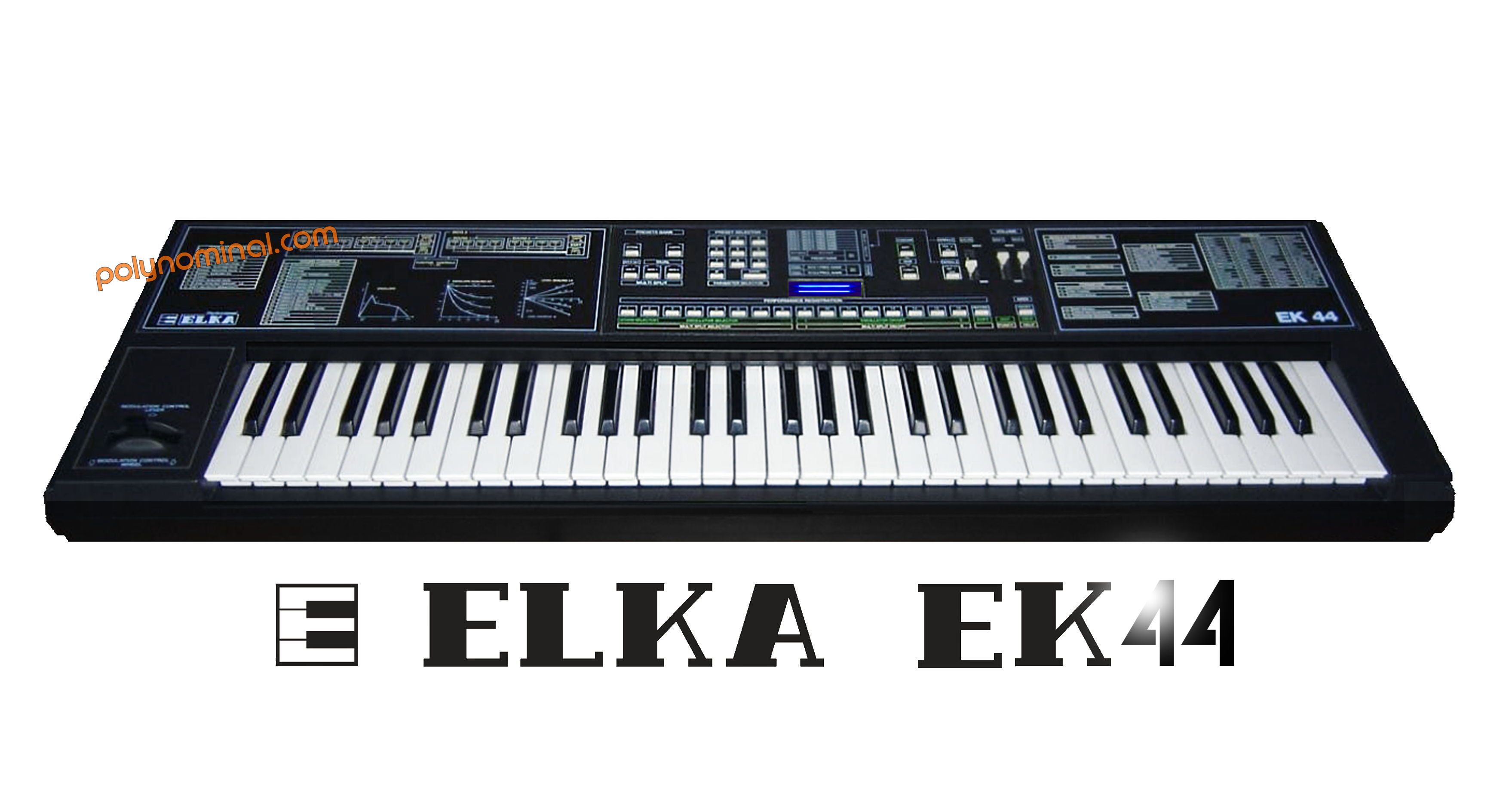

Company: Elka
Model: EK44
Class: Synthesizer
Keys: 61 velocity
Display: LCD no backlight
Synthesis : frequency Modulation
Dates: 1974
Country: Italy
Polyphony: 18 voices (2x9)
Operators: 4 (sinewave)
Algorithms: 8 models
Memory: 96 slot (64 ROM) + 16 performances
Multitimbric: 8 parts
EG: 4 DCO + 1 EG AMP
LFO: 1 vibrato
Weight: 11,5kg
Dimensions: 101,5 x 11 x 33 cm
IC YM2203 OPN / MN3009 + MN3101 /
CPU: TMS 7001 + Motorola 68b09
61 keys keyboard with velocity Controls: Aftertouch, Buttons, Faders, pitch bender.
The rackmount version is ER-44 and a module version EM-44 .
Rear panel connectors:
- Stereo out
- headphones out
- Midi interface (IN OUT THRU)
- ROM and RAM cartridge slot
- volume input pedal
- sustain input pedal
- portamento input pedal
- program UP input pedal
none
- No official VST plugin No free samples
- looking for Elka Ek44 service manual and schematics
- download free EK44 user manual
Scegli tra la vasta selezione di blocchi già pronti più recenti: intro a tutto schermo, caroselli immagini di bootstrap, Slider dei contenuti, galleria di immagini responsive con lightbox, parallax-scrolling, sfondi video, menu hamburger, intestazioni fisse e altro ancora.
VOICE Cpu 8-Bit Microcomputers TMS 7001 + Motorola 68b09 handle 18 voices polyphony: 2 detunable x 9 voices engine DEG1 + DEG2 .
Main IC is based on a FM YM2203 (SG1/6 these are yamaha IC but sanded) CHIP - able to generate 4 sinewave OP routed into 8 possible algorithms.
DEG1 8 voices
DEG2 8 voices
Sinewave shape called "DCG"
Check out the table picture
FM Operator Type-N 3-channel sound chip developed by Yamaha. The YM2203 has been mainly implemented on arcades games from era. usual DAC driver is YM3014 here's called DA1. Wow
-arabian Scale
-Portamento
- fine tuning
- basic sequencer
- analog chorus based on BBD MN
NONE
1 delayed modulator (shapes: Sawtooth Sinewave, random and Square) with variable depth
- 4 EG FM (ADSR)
- 1 pitch EG
96 slot (64 ROM) + 16 performances
can be expaned with cartridge
<- internal battery sanyo
- interface
- bulky
-limited 4 OP
-rare
- FM
-chorus
