GEM S2R
Music Processor (1992)
Music Processor (1992)
Company: GEM
Model: S2R
Class: Rompler module
Dates: 1992
Rackmount: 4 units
Weight: 4kg
Display: neon 240 x 64 pixels
Synthesis: digital rompler
Polyphony: 32 voices
Multitimbric: 16 parts
Resolution: 16 bits
Sample Freq: 41,7 kHz
N. PCM: 209 waves
Oscillator: 2 PCM
Filter: LPF / HPF / BPF / BOOST
LFO: 3 modulators
Sequencer: 250.000 notes
Sync: Midi Clock
Midi: IN / OUT / THRU
CPU: 68302
DAC: AD1865N

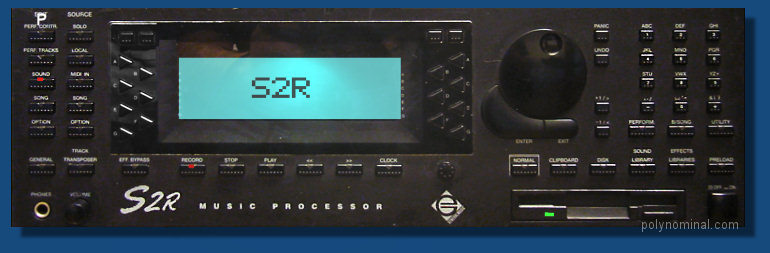

MODULE main panel features a 240 x 64 pixels display, 78 buttons and a jog data wheel for parameter value entries.
Back panel terminal connectors:
- double Midi interface
- 2 main stereo outs with effects
- 4 assignable DRY AUX outs
- volume pedal input
- 2 pedalswitches assignable to damper / expression / start-stop / patch change.
NO factory reset procedure
FREE SAMPLE PACK!! SOON! visit our SAMPLE SHOP!
Have some sounds or demo want to share? CONTRIBUTE :)
Scegli tra la vasta selezione di blocchi già pronti più recenti: intro a tutto schermo, caroselli immagini di bootstrap, Slider dei contenuti, galleria di immagini responsive con lightbox, parallax-scrolling, sfondi video, menu hamburger, intestazioni fisse e altro ancora.
TECH core is based on a CPU Motorola 68302 clocked at 16 MHz manages 32 voices polyphony - 18 bits resolution DAC model AD1865N.
A S2R patch is composed by 1 or 2 PCM samples that can be combined in 3 modes:
1 digital oscillator PCM per voice, simple sample for 1 voice polyphony. Very simple to start a new sound.
2 layered oscillators but no interaction between waves but a simple volume balancing.
The GEM system crossfades 2 times the same PCM for a better wave rendering, but this process takes twice voices polyphony.
The 6mb ROM wavetable is organized into 16 instrument categories (piano, reed, string, effects, chromatic, pipe, ensemble, ethnic, organ, synth lead, brass, percussive, guitar, synt pad, bass and drumkit).
There are 3 ROMS for the whole wavetable, which cannot be expanded but by loading external samples if turbo kit is mounted (check "sample import below)

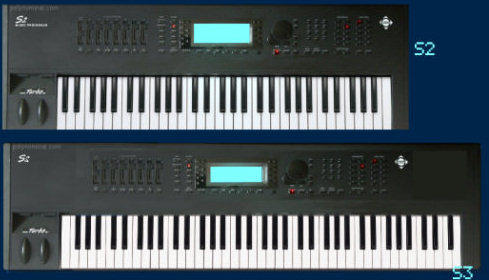

The S2/S3 features some waveforms inspired from classic analog synthesizers e.g Elka Synthex, Roland Jupiter 8.
This function available only if turbo option is fitted which adds 3 import modes:
- floppy MS- DOS & Atari ST format supports .wav .aif - Avalon
- standard SDS Midi dump.
- floppy disk Akai S1000 format
TURBOKIT is a S2 / S3 expansion board with some new features and enhancements including the sample translator which is a tool for samples import. The installation is not easy and requires some technical knowledge.
Note that rackmount S2r is TURBO standard factory.
GEM MIOS is a multi-thread Kernel which manages 16 parts with individual settings:
- Midi channel assign
- dynamic zone split
- pitch tune
- stereo panning
- microtonal control 10 scale presets + 4 users- CC# are supported but MIOS cannot handle extended Midi Sysex. Full control change LIST.
EFFECT S2R handles 2 main engines:
- DSP 1 is dedicated to reverb and echoes
- DSP 2 is mainnly focuses to modulation e.g chorus, flanger, phaser and organ rotary speaker.
Full effects LIST
2 independent resonant multimode filters, each provides a -12 dB per octave slope and combined they operate as a single 4-poles filter:
- lowpass
- highpass
- bandpass
- parametric boost / cut
up to 2 interchangeable and Midi syncable modulators (shapes: sinewave, triangle, sawtooth, square, random and sample & hold) and 4 destinations:
- LFO to amplitude
- LFO to pitch
- LFO to filter 1 / filter 2
2 EGs
- EG 1 amplitude: 10 segments when note engaged + 10 others when key is released
- EG 2 filter: same as EG1
TIP: It is possible to select also a 1 / 3 /6 macro segments all edited graphically using the data encoder.
Internal 16 tracks Midi SMF compliant (with import functions).
Some standard edit functions such as copy, insert, delete, quantisizer and microscope edit.

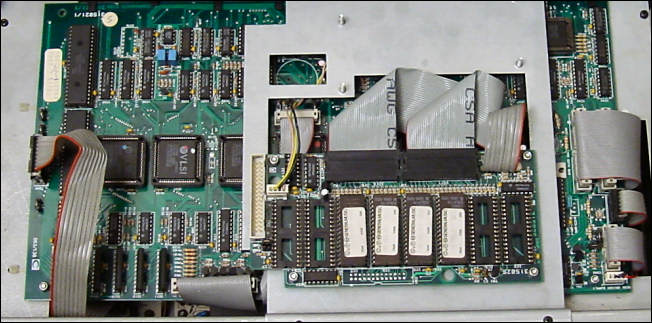

Infamous internal Ni-cad 3.6V battery leakage.To replace it unsolder the battery, clean the board from the acid-salt and eventually replace it with a fresh one.
