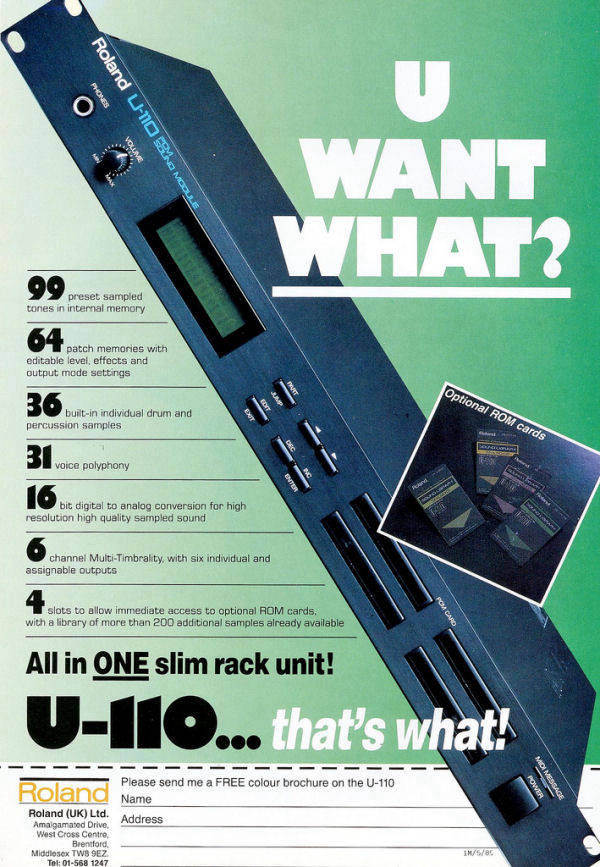

Roland U-110

PCM SOUND MODULE (1988)

Roland u110

"Multitimbral rackmount expander- the first fully PCM rompler unit from Roland, then replaced by upgraded U220"

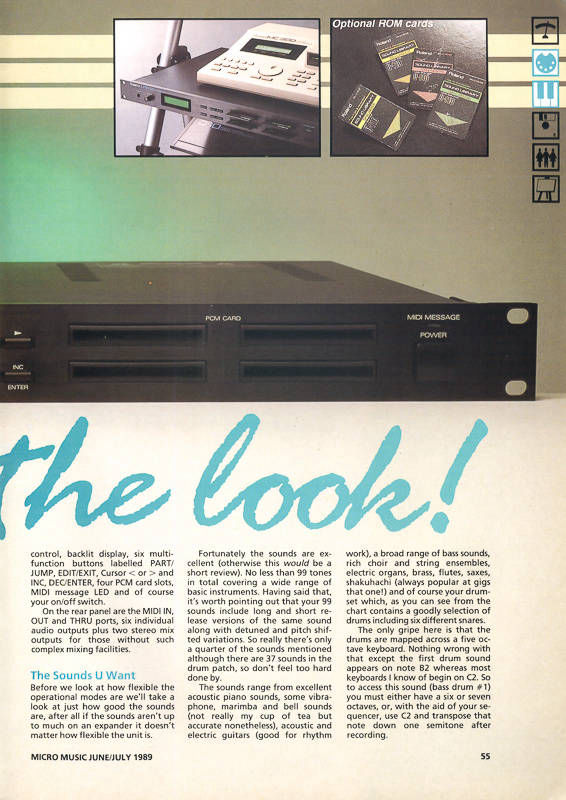

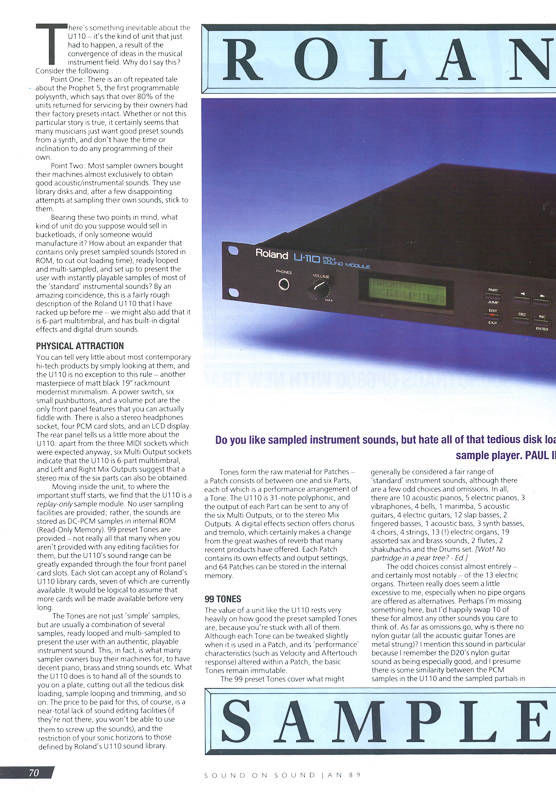

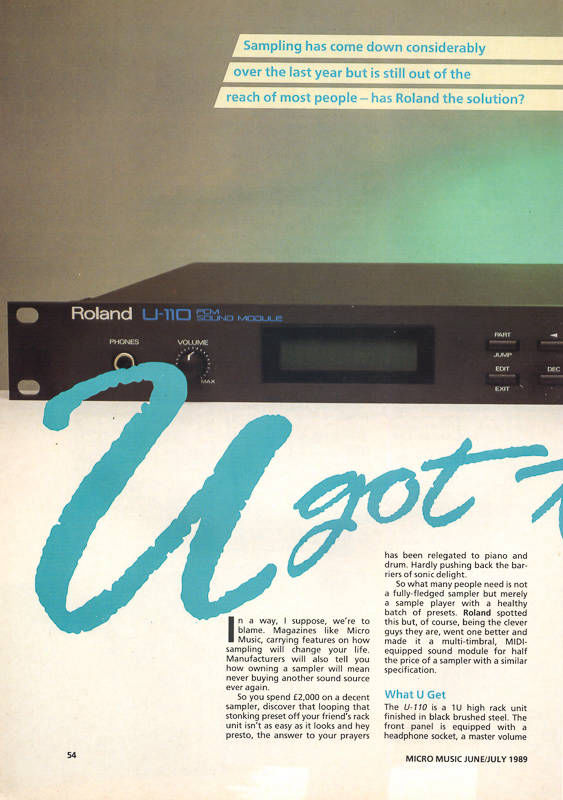

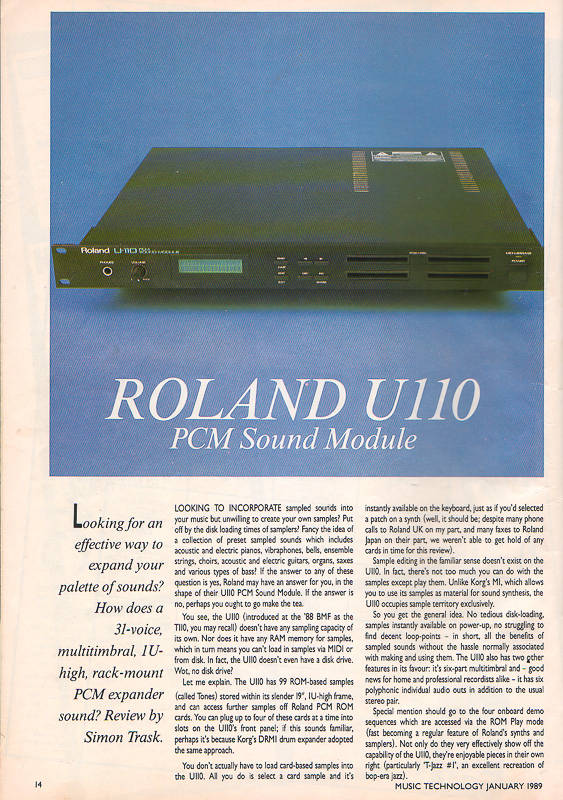

Overview

MODULE The main panel features a 16 x 2 lines display, 6 buttons, volume knob.
4 PCM card slots and headphones output.


FACTORY U110 RESET
SWITCH ON the machine while holding down [part/jump] + [edit/exit]


TERMINAL CONNECTORS:
1- Midi interface  IN/OUT/THRU
2- x6 stereo aux outputs (no effects)
3- x2 main stereo outputs

roland u110

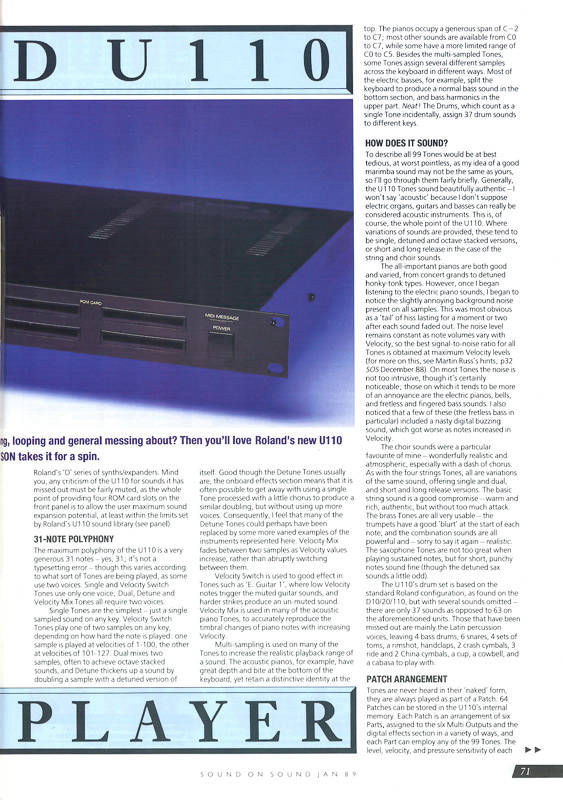

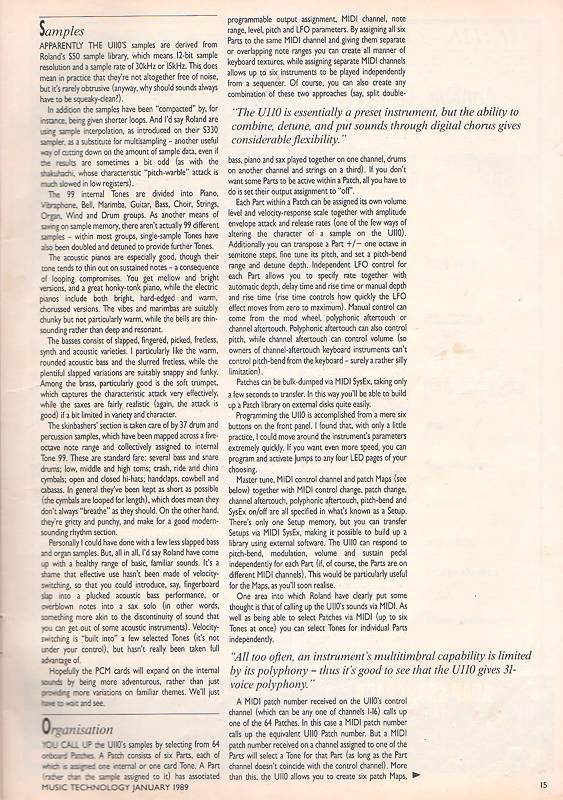

Sound

SOUND Intel system HMOS 8097Bh handles 31 digital voices polyphony based on synthesis DC PCM Pulse Code Modulation (BB PCM54HP DAC, no filter)-  U110 has different sound levels: the lowest one is a tone which is composed by either 1 or 2 samples (2 samples tone reduces the whole polyphony) out of 128 tones available (drum is apart) with no possible edit.  Upper level is the timbre composed by a single tone that has some editable parameters including: volume , detune  and vibrato (LFO). Finally 6 timbres make a patch for performace.

WAVETABLE  2MB ROM (4X 512 kb ROM) is organized in 2 sound groups:
- acoustic samples eg: piano, bell, guitar, string, organ, brass [...]
- precalculated basic waveforms eg: pulse, sawtooth and generated harmonics.

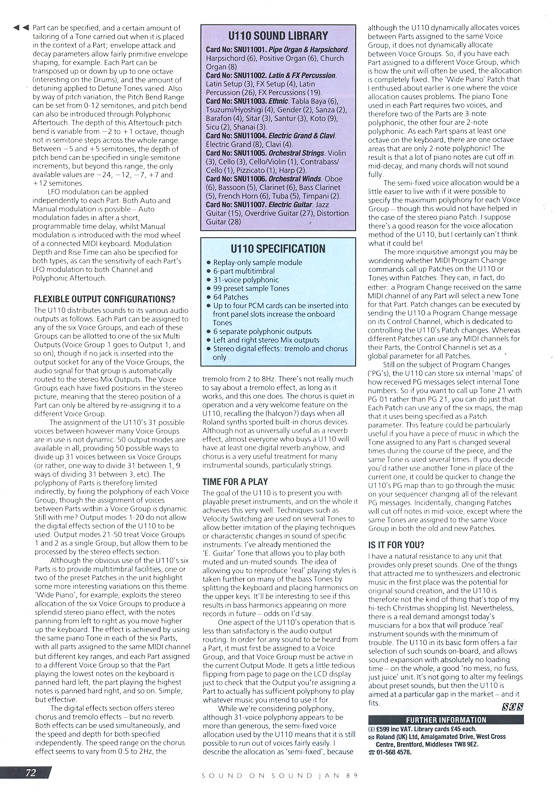

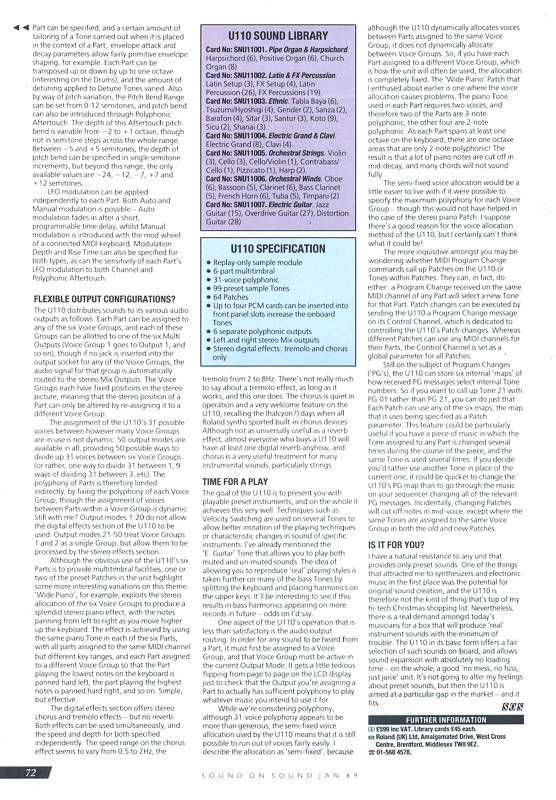

CARD EXPANSION The ROM can be expanded using special PCM cards, also compatible with: Here's the list of available models:
SN-U110-01: Pipe Organs & Harpsichords
SN-U110-02 :Latin and FX Percussion
SN-U110-03:Ethnic
SN-U110-04: Electric Grand and Clavi
SN-U110-05: Orchestral Strings
SN-U110-06: Orchestral Winds
SN-U110-07: Electric Guitar
SN-U110-08: Synthesizer
SN-U110-09: Guitar and Keyboards
SN-U110-10: Rock Drums INFO
SN-U110-11: Sound Effects
SN-U110-12: Sax & Trombone
SN-U110-13: Super Strings
SN-U110-14: Super Ac Guitar
SN-U110-15: Super Brass
>Also third part cards from Musitronics Akkordeon (ID: 25 / Analog Synthesizer / Voices (ID: 22) / Eldek (ID: 21)
Roland u110

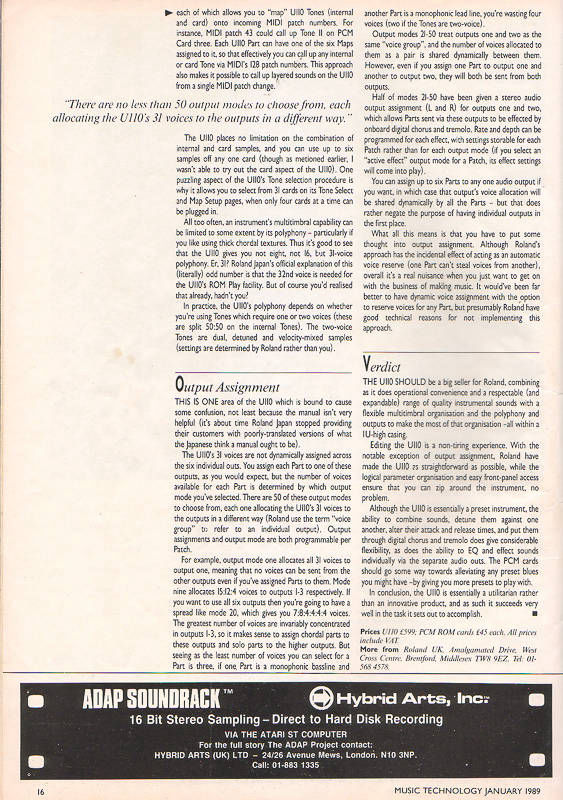

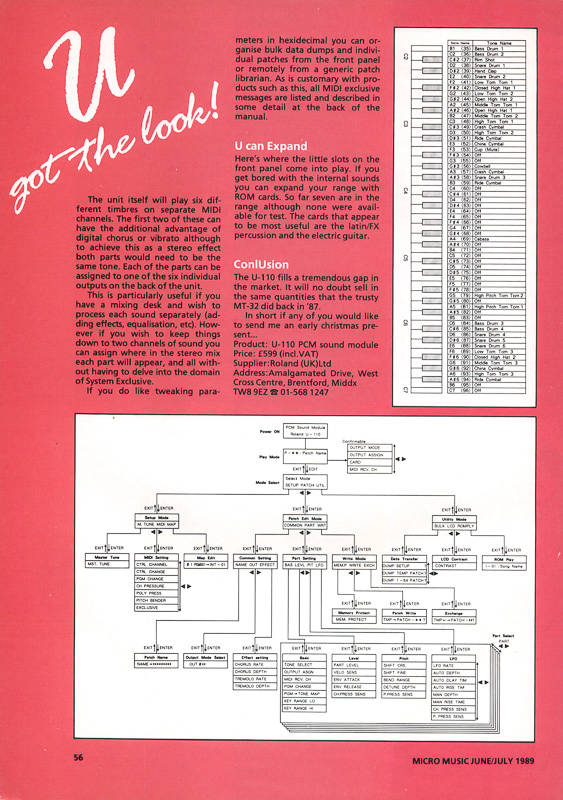

U110 Parameters

ENVELOPE section offers a single 2-stages AR for amplitude.

LFO  a single modulator for the amplitude control (vibrato), extremely simple with just a single waveform, a delay time and depth value. The special RISE function sets the necessary time for the Vibrato to reach the maximum value (0-15).
TIP: the modulation can be also assigned to Midi aftertouch

EFFECTS section features digital chorus and tremolo at the same time for whole parts (MASTER). Both effects have just 2 parameters: depth and rate (quantisized in 15 levels).

MEMORY - 99 tones + 64 patches.
Battery replacement: open the rack, locate the holder, remove the CR-2032 and place a fresh one.
TIP: unlike later u220 or u20 models, this unit cannot save sounds to standard Roland m-256 memory cards.

Roland u110

Roland U110 Specifications

Titolo articolo con sfondo a tinta unita

Company: Roland
Model: U-110 PCM SOUND MODULE
Class: digital rackmount module
Rack unit: 1U Rack Mount Type
DISPLAY: 1 6 x 2 backlit LCD
Synthesis: DC – PCM Sound
Country: Japan
Dates: 1988
LAST RETAIL PRICE: $1095
Actual Price: 100€
FRONT PANEL:
Volume Control Knob
Part / Jump Button
Cursor Buttons
Edit / Exit Button
Decrement Button
Increment / Enter Button
Headphones Socket
Card Slots ( x 4 )
Power Switch
REAR PANEL:
MIDI Connectors (IN / OUT / THRU)
Multi Output Sockets (1 to 6)
Mix Output Sockets (L / R)
Synthesis: PCM rompler
Wavetable: 2 mb Rom
ROM CARD SLOTS: 4 – compatible with SN-U110
Polyphony: 31 voices
Multitimbric: 6 parts
LFO: 1 modulator
Midi: in out thru
Effects - chorus and tremolo
Memory: 99 tones + 64 patches.

IC: BB PCM54HP
OUTPUTS: 6 – 2 1/4′ L/R + 2 sets of 1/4′ L/R Direct
Dimensions : 482 (W) x 358 (D) x 45 (H) mm
Weight : 4,5 kg
Power W : 21 W
