KEYBOARD 61 keys sensitive to velocity and two knobs (pitch bend and modulation) with no aftertouch, but you can use the modulation wheel to apply this effect or use an external sequencer, also a simple 16x2 lcd display with backlight.
RELATIVE module version is KORG X5DR
TERMINAL CONNECTIONS
- external PSU input (12Vdc negative center at least 700mA)
-stereo out L/R jack
-2 assignable pedal
-Midi interface
-obsolete PC to HOST rs232
SYNTHESIS 64 voices polyphony based on 16 bits (AI) synthesis engine (8 mb ROM) with 430 multi-samples and 215 drum PCM including pianos, strings, brass, winds, guitars and basses plus assorted drums and percussion. The machine handles 16-part multi-timbral channels.
MEMORY standard 200 programs and 200 Combinations ROM + 100 programs and 100 combinations in RAM memory (no external storage).
A X5D Combination is made up of several programs each assigned to a timbre, up to a maximum of eight programs and they can be combined in several ways: by layer, by sharing the keyboard with zones comprising different programs (split) or by layering programs which will be triggered according to a set velocity (VSW). The second special bank is specially dedicated to General MIDI and includes the 128 standard sounds as well as 8 drum kits; however, you cannot modify it.
EFFECTS two digital multi-effect processors, each producing an effect to be chosen from among the 47 different algorithms available (e.g reverb, chorus, leslie, delay, flanger) they are organized into three groups and that one of these groups allows four independent effects to be used simultaneously. The parameters are editable and can be stored with programs and combinations
Year Released: 1995
Keyboard: 61 keys with velocity
Polyphony: 64 notes
Multitimbral: 16 parts
Preset Patches: 128 x 2
User Patches: 200
User Performances: 200
Preset Drum Kits: 2
ROM: 8MB (430 instruments, 215 drums)
Effects: 2 independent processors with 47 effects
Screen: 16 x 2 character LCD
Power Consumption: 12V. 700 mA
Dimensions: 900 mm x 254.2 mm x 83.4 mm
Weight: 4.5 kg

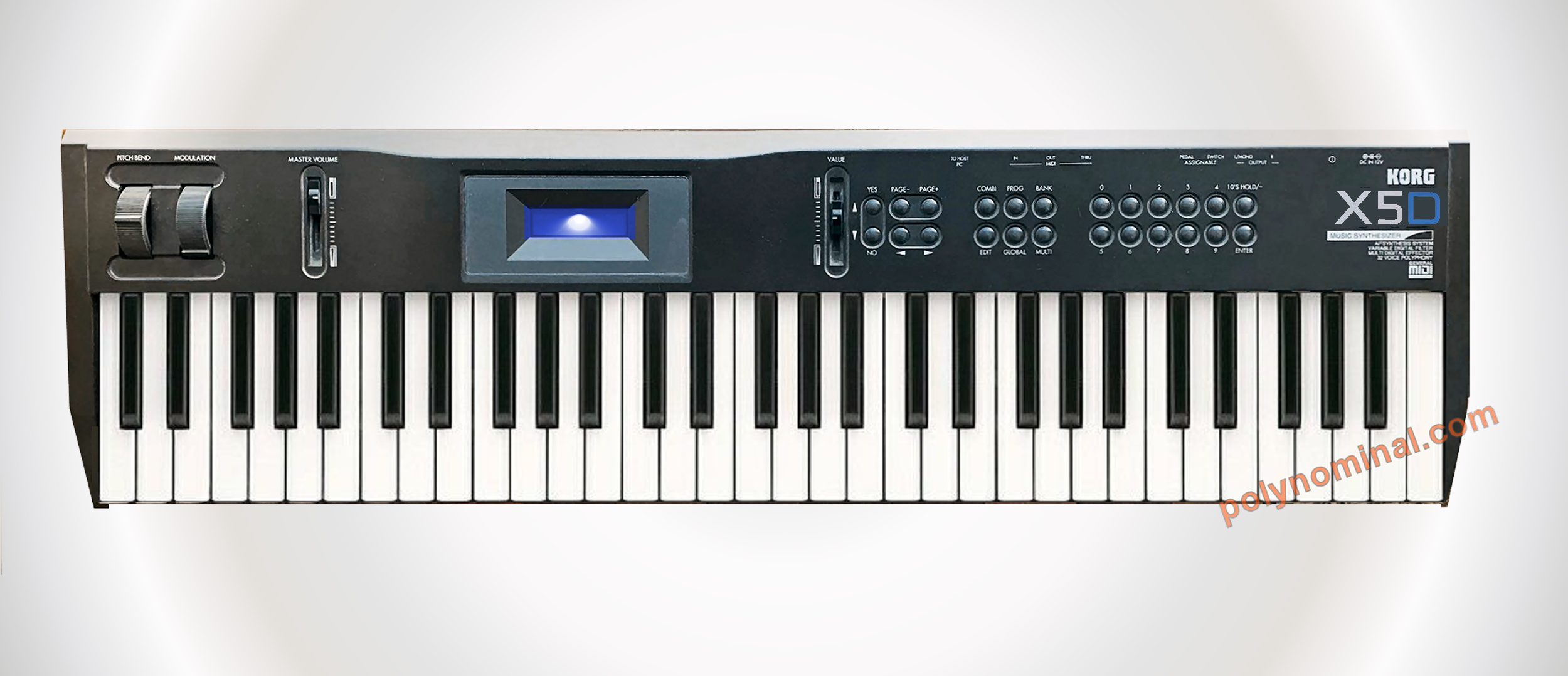

KORG X5D
