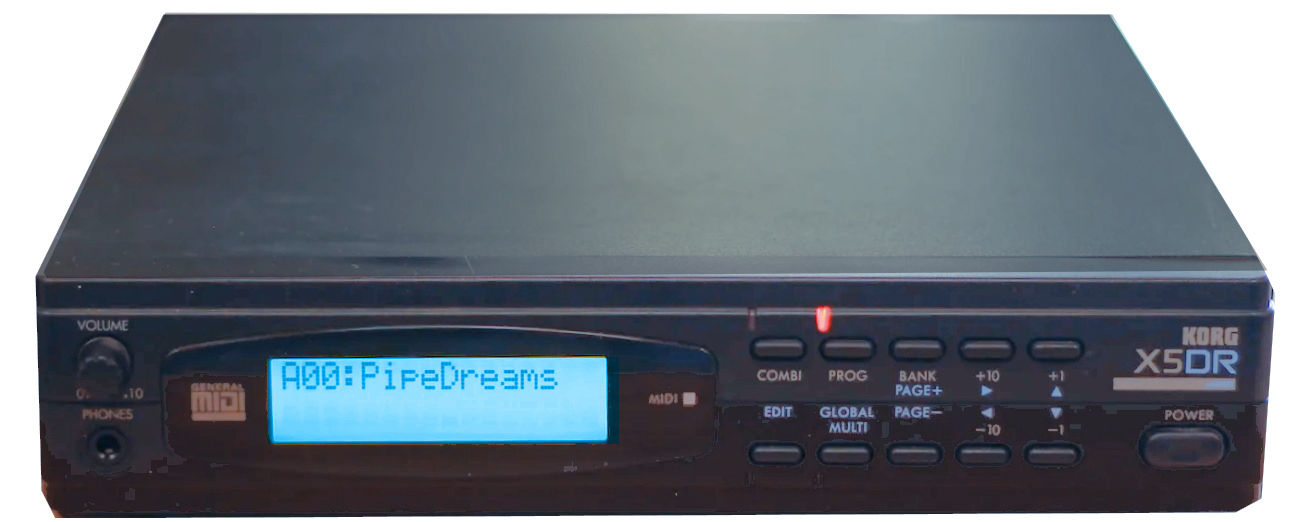

MODULE half rack modle with a simple 16x2 lcd display with backlight. Volume knob, phones frontal and 10 buttons for edit (a bit difficult without external programmer). Handy Midi led activity
TERMINAL CONNECTIONS
- external PSU input (12Vdc negative center)
-stereo out L/R jack
-Midi interface
-obsolete PC to HOST rs232
SYNTHESIS 64 voices polyphony based on 16 bits (AI) synthesis engine (8 mb ROM) with 430 multi-samples and 215 drum PCM including pianos, strings, brass, winds, guitars and basses plus assorted drums and percussion. The module handles up to 16-part multi-timbral channels.
MEMORY 236 programs (100 ram + 136 ROM) (no external storage). There are also 100 RAM combination which are made up of several programs each assigned to a timbre, up to a maximum of eight programs and they can be combined in several ways: by layer, by sharing the keyboard with zones comprising different programs (split) or by layering programs which will be triggered according to a set velocity (VSW). The second special bank is specially dedicated to General MIDI and includes the 128 standard sounds as well as 8 drum kits; however, you cannot modify it.
EFFECTS two digital multi-effect processors, each producing an effect to be chosen from among the 47 different algorithms available (e.g reverb, chorus, leslie, delay, flanger) they are organized into three groups and that one of these groups allows four independent effects to be used simultaneously. The parameters are editable and can be stored with programs and combinations
Year Released: 1995
class: Midi module
Polyphony: 64 notes
Multitimbral: 16 parts
Preset Patches: 236
User Patches: 100
Preset Drum Kits: 2
ROM: 8MB (430 instruments, 215 drums)
Effects: 2 independent processors with 47 effects
Screen: 16 x 2 character LCD
Power Consumption: 12V. 700 mA
Dimensions: 218 mm x 241 mm x 45 mm
Weight: 1,3 kg
KORG X5DR
