Arp 1601
16 steps sequential voltage generator (1976)
16 steps sequential voltage generator (1976)
Company: ARP
Model: 1601
Class: step sequencer
Keyboard: none
Dates: 1976
Country: United States
Weight: 3,6 Kg
Dimensions: / mm
Price: 2000€
Display: none
Technology: analog
Tracks: 2 (A/B)
Memory: none
CV range: 0-10V
Scale : 1V/Oct (1/12V per semitone)
Clock: internal generator or external trigger input
PSU: internal
panel connectors:
- CV IN, CV OUT
- Gate In, Gate Out
- Trigger In
- gate bus out 1 2 3
- step advance input
- reset input
- clocked gate out
- quantized out 1 /2
- CV input (transpose)
- quantized input 1/2
- multiple (x4) patch
- clock normal out
- footswitch out
- Start/stop + reset clock
- pulse witdh adjust
none yet
- No official VST plugin
Scegli tra la vasta selezione di blocchi già pronti più recenti: intro a tutto schermo, caroselli immagini di bootstrap, Slider dei contenuti, galleria di immagini responsive con lightbox, parallax-scrolling, sfondi video, menu hamburger, intestazioni fisse e altro ancora.
VOICE structure works with either 16 x 1 steps or 8 x 2 mode with a simple switch. The 1601 works with 1V/Oct. Each step can be set to a specific voltage note value (plays if relative red led is switched on). Each step also generates different voltage gate on 3 different gatebus 1-2-3 which can be also used as smart Envelope generator.
It is also possibile to skip a note or generate a reset to first step and play in a special Randomish mode.
- 1 track with up to 16 steps
- OR 2 tracks with up to 8 steps each.
- Straight note playmode, no backwards, pendulum or other Doepfer weird stuff but a randomish mode (activate the switch).
Scale 1V/oct with 0-10V range
and a Positive gate (no S-trig for Anti-moog purposes).
- Transpose whole sequence with CV adding tension from external keyboard.
Dual VCO quantisizer voltages to the nearest relative note. A very smart function way ahead of its time, especially if you are NOT into microtonal music.
Internal clock with frequency an manual button for step advance or reset.
Sequencer can be sync also with external triggers (patch trigger clock into step IN)
- pricey
- not really modern
- hard to find
-Rare
- powerful
- fun

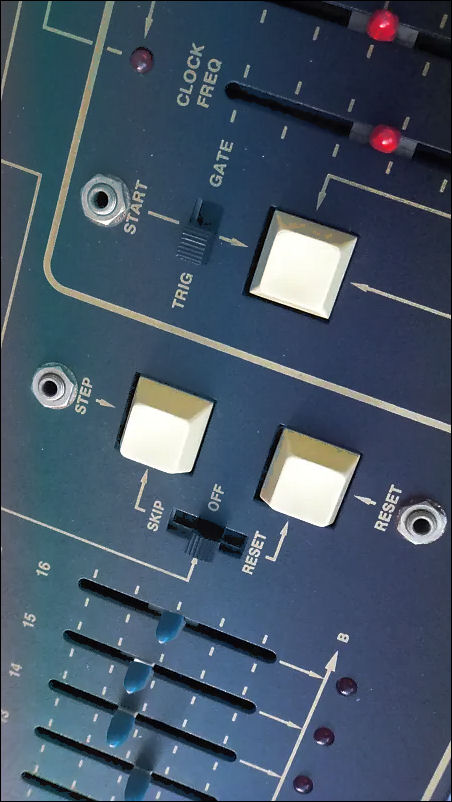

ARP 1601 sequencer
