Arranger keyboard (1995)
KEYBOARD 61 keys with velocity, a 2x 40 characters display LCD, 2 wheels for pitch and modulation.
The relative Midimodule version is the technics AC1200
SYNTHESIS 32 notes polyphony based on PCM rompler technology.
The internal memory features 200 sounds with some minimal easy edit (volume, sustain , tuning, glide, autobend, filter, envelope)
EFFECTS DIGITAL EFFECT, SUSTAIN, DIGITAL REVERB
MIDI the Technics keyboard recognizes the General MIDI standard and thus gives access to the loading of MIDI File sequences in format 0 or 1 in the internal 16-track sequencer.
DISK STORAGE The KN1200 reader accepts both dual-density and high-density formatted floppy disks.
MAXIMUM NUMBER OF NOTES PRODUCED SIMULTANEOUSLY : 32 NOTES
SOUNDS : 200 SOUNDS
EFFECTS : DIGITAL EFFECT, SUSTAIN, DIGITAL REVERB
PART SELECT : RIGHT 1, RIGHT 2, LEFT
RHYTHM : 100 RHYTHMS
CONTROLS : MAIN VOLUME, OTHER BALANCE, CONDUCTOR, START/STOP, INTRO & ENDING, FILL IN 1, FILL IN 2, VARIATION, COUNT INTRO, SYNCHRO & BREAK,
AUTO PLAY CHORD : ONE FINGER, FINGERED, PIANIST, MEMORY, ON BASS, MUSIC STYLE ARRANGER, SOUND ARRANGER
PANEL MEMORY : 2 BANKS x 8, SET
SEQUENCER : 16 TRACKS
INPUT MODES : EASY RECORD, REALTIME RECORD, STEP RECORD FUNCTIONS: TRACK ASSIGN, EDIT (SONG CLEAR, TRACK CLEAR, VELOCITY CHANGE, QUANTIZE, TRACK MERGE, MEASURE ERASE, MEASURE COPY, MEASURE INSERT, MEASURE DELETE), PUNCH RECORD, PLAY, MEDLEY
COMPOSER : 5 PARTS: BASS, ACCOMP 1, ACCOMP 2, ACCOMP 3, DRUMS STORAGE CAPACITY: APPROX. 8600 NOTES INPUT MODES: REALTIME RECORD, STEP RECORD FUNCTIONS: COMPSER LOAD, CLEAR, MODE SELECT, COPY, LOAD SINGLE COMPOSER PATTERN MEMORY: 2 BANKS x 10 (MEMORY 1-6, INTRO, FILL IN 1, FILL IN 2, ENDING)
DISK DRIVE : 3.5 INCH DISK DRIVE FOR 2HD (1.44 MB), 2DD (720 KB)
SOUND SETTING : PART SETTING (VOLUME, SUSTAIN, PAN, KEY SHIFT, TUNE, PITCH BEND RANGE, GLIDE SETTING), TUNING, TECHNI-CHORD TYPE, LEFT HOLD, REVERB
SOUND EDIT : EASY EDIT, GENERAL EDIT (OCTAVE SHIFT, VIBRATO, AUTOBEND, REVERB).
TONE EDIT (TONE, LEVEL & PITCH, ENVELOPE, FILTER), EFFECT EDIT MEMORY: 36
DISPLAY : LCD (40 CHARACTERS x 2 LINES) EXIT, DISPLAY HOLD

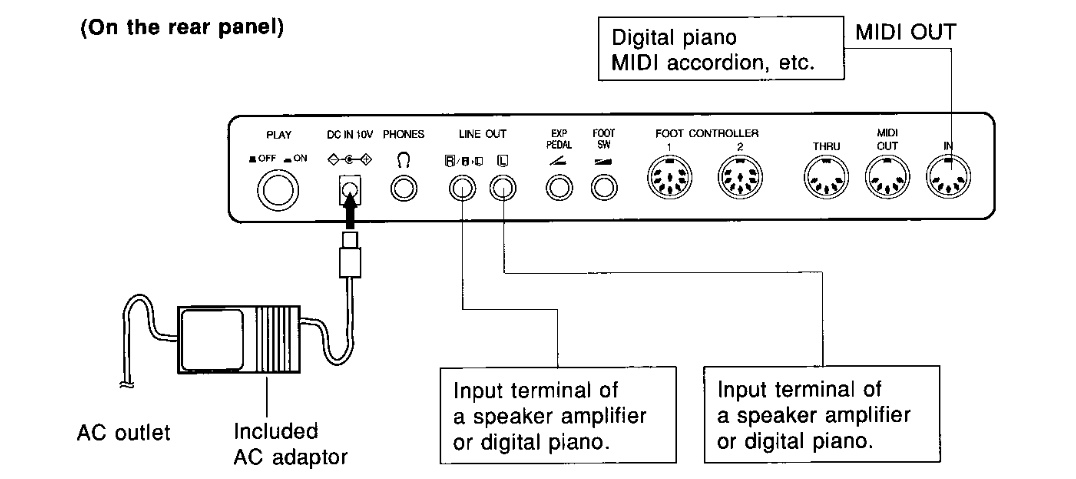

TERMINALS : DC IN 10V, PHONES, LINE OUT (R/R+L, L), FOOT SW, EXP PEDAL, FOOT , 2, MIDI (IN, OUT, THRU)
