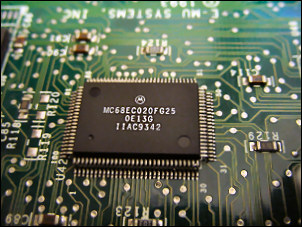

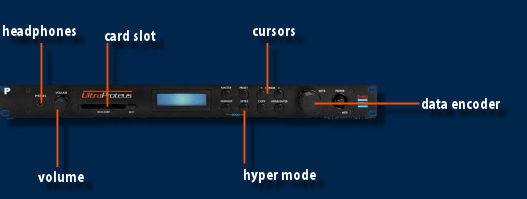

VOICE a 16 bits core Motorola MC68020 manages up to 32 voices polyphony, EMU DACS are 6 X 16 bits analog devices AD1860. A basic sound patch is a combination of 2 samples primary + secondary - each with individual parameters:
|
-
oscillators crossfade osc1-> osc2 / osc2 -> osc2
- stereo panning position
-
keyrange
-
pitch tune
- monophonic with portamento
- reverse sample play
- loop mode
|
WAVETABLE the internal 16 MB ROM contains 484 PCM waves at 39 kHz / 16 bits resolution, most of these are from previous Emu Proteus machines.
|
The wavetable contains various kind of PCM including: drums, choir, strings, organ, moog bass, guitar, harmonics, piano, basic waveforms and ethno percussions. |
MULTIMBRAL the 32 voice polyphony can be assigned to hypermode performance mode which manages 16 parts with individual settings:
- volume gain
- stereo
panning
- pitchtranspose
- keyboard zone
- velocity offset
- effect amount
|
|
FILTER this section features 288 Z-PLANE pre-calculated filters, these are combinations of 20 comb EQ with variable bandwidth parameters. The famous filter Morphing function interpolates 2 selected filter models simply using the modulation wheel control.
ENVELOPE 3 EGs:
|
- Primary amp : 4 segments +2 level times
- Secondary amp: 4 segments +2 level times
- AUX assignable: 4 segments +2 level times
Special function generator segments a curve into 8 parts and creates a special motion mode using 64 preset shapes (e.g: linear, exponential or random).
|
LFO up to 2 delayed modulators (shapes: triangle, sinewave, square, saw and random). Modulators offer other special parameters such as depth and variance mode which is a natural strings instruments emulation, a kind of natural desynch process.
LFO destinations:
|
-
LFO to filter cutoff
-
LFO top anning image
-
LFO to volume
-
LFO to pitch tuning. |
MATRIX matrix mod codes every parameters from one the another with many different path routing assignable to Midi CC# - these are really similar on the one found on the EMU samplers like ULTRA series.
SOURCES: |
DESTINATIONS: |
pitch wheel |
pitch OSC 1-2 |
Midi control assignable ABCD |
volume OSC 1-2 |
mono pressure |
ADSR osc1-2 |
polyphonic pressure |
crossfade |
LFO1 |
LFO1-2 amount/rate |
LFO2 |
AUX EG amount |
AUX EG |
AUX EG ADSR |
function generator 1 |
portamento OSC1-2 |
function generator 2 |
filter morph 1-2 |
free run function generator |
pan 1-2 |
|
function gen1 -2 amount |
|
EFFECT there are 28 effects e.g : ring modulation, reverb, shimmer, phaser, delay, echo and fuzz.
hear phaser
MEMORY:
-
128 ROM presets
-
128 RAM sounds
RAM card doubles
using PCMCIA SRAM cards.
|

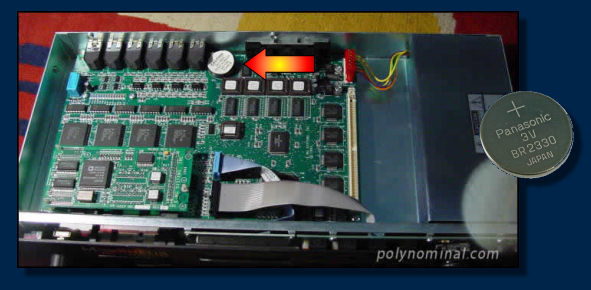

LEFT - BATTERY REPLACEMENTRAM system works with a lithium battery model BR-2330, but it is possible to use more common BR-2325 model.
- Click to enlarge picture - |

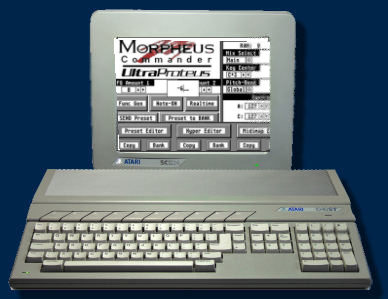

EDITOR softwares for the module:
- Midiquest ($$$, PC/Mac)
- Morphedit (freeware, PC) PIC
- Zeus (freeware, Atari ST)
|
|
VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:
|
Rhythm lab |
free
sample set 65Mb
|
|
Creative/EMU Emulator X3 |
Commercial VST
a sampler with Zfilters.
Closest plugin available
|
AUDIO DEMO
