EMU B3



emu b3

audio demo Country: USA
Weight: 3 kg
Dimensions: n/a
audio demo trend price : 200€
manual demo video comments

Emu B3
64 Voice Tone Wheel Organ (2000)



Rackmount expander based on proteus 1000 series mainly aimed at Hammond organs emulation like Model B3, C3 and A100 with different Leslie settings.

The B3 is fully loaded with samples from original hammonds from the golden era.

edit emu b3
Tone Wheel Organ

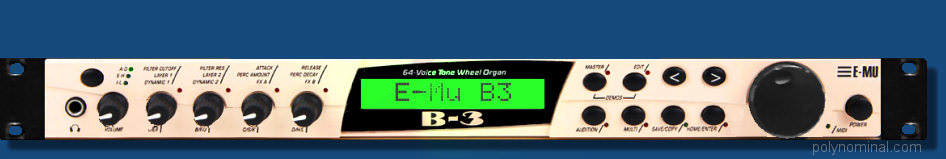

info RACKMOUNT 1 unit. The front panel features a LCD display, 9 buttons + 4 knobs for real-time parameter controls (they do transmit Midi CC#)

Back panel terminal connectors:
- Midi interface
- main out

Front panel terminal connectors:
- headphones.




info SOUND
Coldfire-based processor manages 64 digital voices polyphony.
a basic patch is composed by 4 tones PCM samples with independent parameters:
- chorus mode stacks twice the same waveforms
- sample start offset and delay
- 5 solo modes
- volume
- pitch tuning
- panning
- keyboard zone.

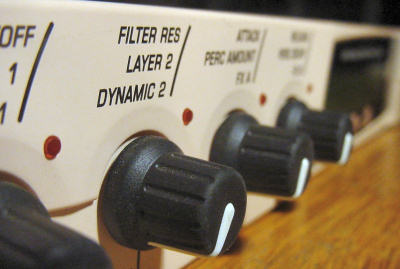

knobs


editWAVETABLE many PCM are directly sampled from the authentic Hammond B3 with different Leslie and valves saturation or amplifications combinations.
ROM: PCM are divided in 2 categories:
1- pre-calculated digital harmonics
2- samples from most famous drawbars combinations (numbers), a lot of presets are ready to go and need no changes: the box is already loaded with the top vintage from many historical hits!


hammond b3





mrmory EXPANSION B3 can be expanded with the other ROMS, some are standard in other EMU machines:

ROM NAME Can be found on:

Pure Phatt MoPhatt / MK6 / MP-7
Protean Px7
Techno Synth Yard Orbit 3
Beat Garden Orbit 3
Orchestral Session 1-2 Virtuoso 2000
World Expedition Planet Earth
Sounds of the ZR Ensoniq Halo
X-Lead Xtreme Lead1 / XL7 / XK6
Vintage vintage pro / keyboard vintage keys
Composer proteus 1000 / 2000 / 2500 / PK-6
Audity audity 2000
Siedlaczek Orchestra Not included in any machines
Protozoa Not included in any machines
Holy Grail Not included in any machines
Ensoniq Project Not included in any machines




xp UPGRADE optional TURBO board add some upgrades:
- doubles polyphony
- 2 extra SIMM slots
- twice Midi channels
- a second Midi set
- digital spdif out
- 4 extra analog outs.
TECH: this upgrade brings the 1000 series to full 2000 series power - it is also possible to fit the B3 SIMM directly to a 2000 model for extra features.




filter FILTER there are 50 models of Z-plane filters simplified from the previous module EMU Morpheus. First types are the classic ones including lowpass, highpass and bandpass and more sophisticated ones like swept octave EQ, phasers, flangers, vocal formant filters. Filters are classified in 9 categories:

LPF Low-pass filter
PHA Phaser
HPF High-pass filter
FLG Flanger
BPF Band-pass filter
VOW Vowel/ formant
EQ+ EQ boost
EQ- EQ cut
SFX Special Effect


filter




Eg ENVELOPE
3 EGs:
EG1: amplitude (1 for each layer)
EG2: filter (1 for each layer)
EG3: AUX assignable.
EG share same structure and characteristics: 6 segments + 6 times.

adsr




Eg LFO
up to 2 interchangeable delayed modulators (0.08 Hz to 18.14 Hz) both can be assigned to and open matrix structure (see modulation processor) that manages various sources and modulation destinations. Typical destinations are: pitch, amplitude or filter.
The modulators can be key-synched and features 17 waveforms:

random
triangle
sine
saw
square
33 / 25 / 16 / 12 % pulse width
hemi quaver
pat octaves
pat 5th
pat sus 4th
pat neener
sine 1,2
sine 1,3,5
sine and noise

filter




Eg
MODULATION PROCESSOR like a modular, the B3 handles 24 routings or virtual patchcords that connect a modulation source to a destination. The modulator polarity can be also changed (value relation that can be set to positive or negative).
A list of the matrix elements would be too long and complex, here's a schematic simplification:



Sources: Destinations:
note key
velocity
bender
modulation wheel
Midi CC#
footswitch
EG1 -2 -3
LFO1 - 2
noise (pink/white)
random
time dividers
mathematical - logic functions
key sustain
pitch
glide
start wave offset
filter cutoff / resonance
pan
amplitude
EG1 ADSR
EG2 ADSR
EG3 ADSR
LFO1-2 frequencies
mathematical - logic functions



multitimbral MULTITIMBRAL the global mode manages 16 parts with individual settings:
- Midi channel
- analog out
- stereo panning.
- volume
- transpose
- split (link).



FX EFFECT a 24 bit DSP manages 2 editable main FX groups:
- DSP1: 44 reverb and echo algorithms including hall, room, plate and delay
- DSP2: 32 modulation algorithms like chorus, flanger, phaser and vibrato
Full list HERE


Eg SYNC the internal masterclock from 25 to 300 BPM controls the LFO frequency or can be clocked to MIDI source.


mrmory MEMORY:
- 512 RAM patches
- 384 ROM patches on the B3 SIMM
- 12 ROM microtuning
- 12 RAM microtuning.
Created sounds can be only saved to Midi Sysex dump.

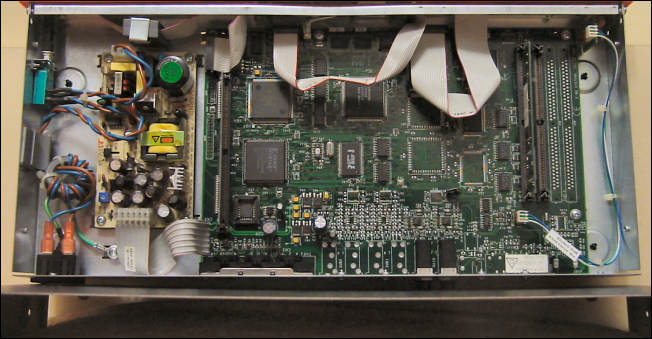

b3 in




effet HAMMOND B3 VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set for:

  name price link demo
AZR3 AZR3 VST free
effet AZR3
master Hammond B3 master Hammond B3 VST commercial effet master Hammond B3
NUBIPLUS NUBIPLUS VST free effet NUBIPLUS
Lightbag Lightbag VST free effet Lightbag
VL122 VL122 VST FREE effet VL122
UVI retro organs UVI retro organs VST commercial effet UVI retro organs
vintage organs vintage organs
(replaced the famous B4)
VST commercial effet vintage organs
LinPlug Organ 3 LinPlug Organ 3 VST commercial effet LinPlug Organ 3



demoAUDIO DEMO

demo demo1
demo demo2
demo demo3





effet Soundcloud B3

track1 3 tracks




video VIDEO CLIP SELECTION

E-MU B3 64 Voice Tone Wheel Organ Module E-MU B-3 Riffs Part 1
Organ Module Riffs Part 1

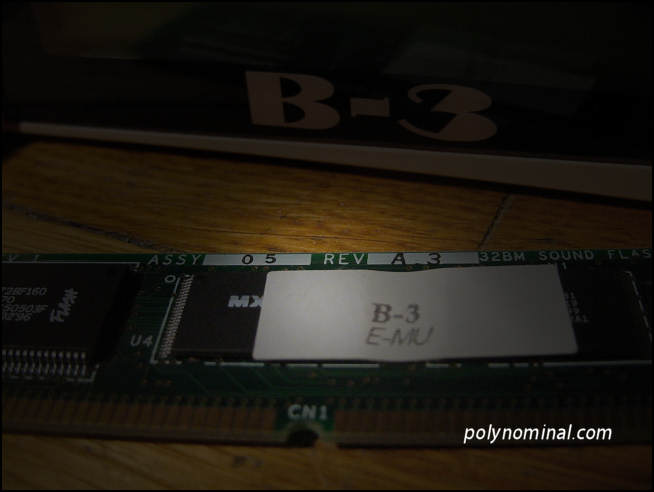

emu b3 rom




manual
EMU B3 MANUAL








manual
EMU B3 SERVICE MANUAL /SCHEMATICS




B3 RESET FACTORY PROCEDURE

1.Hold both CURSOR KEYS (Arrow Keys) down and turn on the POWER at the same time. Hold the cursor keys until the unit boots up in the DIAGNOSTIC test menu. go CURSOR KEYS. Turn the DATA WHEEL to the right to INITIALIZE USER DATA Press the HOME/ENTER twice.

playmodes











If you are into hammond emulation you should also check:

HAMMOND XM1 module

turbo emu



PEAVEY SPECTRUM XP








side







Emu B3 for sale

Emu B3 for sale
CHECK OUT EBAY OFFERS

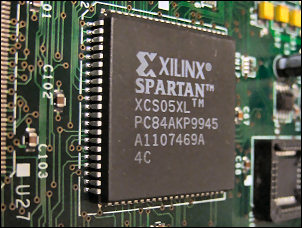

spartan memory motherboard coldfire


manual

- Hammond stuff
- some presets
sound good

manual

- no drawbars
- edit
-May results too static

comment

REVIEW "Emu B3 is a box loaded with a lot of most famous B3 combinations - for sure professional hammondists should look somewhere else. Not too impressive for today's standard, but B3 does its dirty job."
