EMU Mo Phatt







EMU Mo' Phatt

infoCountry: USA
Weight: 3,1 Kg
Dimensions: n/a
audio demo trend price : 150€
manual demo video comments

Emu Mo Phatt (2000)
64 voices Urban Dance Synth



Rackmount rompler expander full of drum kit, scratched vinyls and dirty rhode.

Upgrade from previous series EMU Planet Phatt.

main display
emu mophatt

info RACKMOUNT 1 rack unit.
Main panel features a LCD display, 9 buttons + 4 knobs for real-time parameter controls (they do transmit Midi CC#)

Back panel terminal connectors:
- Midi interface
- main signal out

Front panel terminal connectors:
-headphones.





edit SOUND Coldfire-based processor manages 64 digital voices polyphony.
a basic patch is composed by 4 tones PCM samples with independent parameters:
- chorus mode stacks twice the same waveforms
- sample start offset and delay
- 5 solo modes
- volume
- pitch tuning
- panning
- keyboard zone.

knobs

mophatt 2 explained




edit WAVETABLE the 32 MB wavetable contains 1100 PCM at 44 kHz at 16 bit resolution.
Many PCM were directly recorded from viny-recorded samples, dirty rhodes, noises, hihop and RNB material.
Internal wave ROM is split in 3 main categories:
- guitar, noise and keyboard waveforms with loops and textures
- pre-generated harmonics PCM
- electro-oriented drum percussions.


motherboard




mrmory
EXPANSION Mo'Phatt module can be expanded with 1 more ROM, some are standard in other EMU machines:

ROM NAME can be found on:
Definitive B-3 Emu b3
Pure Phatt MoPhatt / MK6 / MP-7
Protean Px7
Techno Synth Yard Orbit 3
Beat Garden Orbit 3
Orchestral Session 1-2 Virtuoso 2000
World Expedition Planet Earth
Sounds of the ZR Ensoniq Halo
X-Lead Xtreme Lead1 / XL-7 / XK6
Vintage vintage pro / keyboard vintage keys
Composer proteus 1000 / 2000 / 2500 / PK-6
Audity audity 2000
Siedlaczek Orchestra Not included in any machines
Protozoa Not included in any machines
Holy Grail Not included in any machines
Ensoniq Project Not included in any machines



xp UPGRADE optional TURBO board adds some useful upgrades:
- it doubles polyphony
- adds 2 extra SIMM slots
- twice Midi channels
- extra second Midi set
- digital SPDIF out (coaxial)
- 4 extra analog outs .
TECH : Turbo upgrade brings the 1000 series to full 2000 series power but it is also possible to fit the XL1 lead SIMM directly to a 2000 model for the extra features.



filter FILTER there are 50 models of Z-plane filters but slimmed down-version from previous Emu Morpheus. First filter types are the classic ones including lowpass, highpass and bandpass and more sophisticated ones like swept octave EQ, phasers, flangers, vocal formant filters. Filters are classified in 9 different categories:


LPF Low-pass filter
PHA Phaser
HPF High-pass filter
FLG Flanger
BPF Band-pass filter
VOW Vowel/ formant
EQ+ EQ boost
EQ- EQ cut
SFX Special Effect

filter





Eg ENVELOPE 3 main EGs sharing same structure : 6 segments + 6 times:
- EG1: amplitude (1 for each layer)
- EG2: filter (1 for each layer)
- EG3: AUX freely assignable in MATRIX.


adsr





Eg LFO up to 2 interchangeable modulators (range from 0,08 Hz to 18,14 Hz) both can be assigned to and open matrix structure (see modulation processor) that manages various sources and modulation destinations. Typical destinations are: pitch, amplitude or filter.
The modulators can be key-synched, delayed and features 17 waveforms:

random
triangle
sine
saw
square
33 / 25 / 16 / 12 % pulse width
hemi quaver
pat octaves
pat 5th
pat sus 4th
pat neener
sine 1,2
sine 1,3,5
sine and noise


filter


Eg MODULATION PROCESSOR like a modular, the module handles 24 internal routings or virtual patchcords that connect a modulation source to a destination. The modulator polarity can be also changed: that is the value relation that can be set to positive or negative.
A list of the matrix elements would be too long, here's a schematic simplification:


Sources Destinations
note key
velocity
bender
modulation wheel
Midi CC#
footswitch
EG1 -2 -3
LFO1 - 2
noise (pink/white)
random
time dividers
mathematical - logic functions
key sustain
pitch
glide
start wave offset
filter cutoff / resonance
pan
amplitude
EG1 ADSR
EG2 ADSR
EG3 ADSR
LFO1-2 frequencies
mathematical - logic functions



multitimbral MULTITIMBRAL the global mode manages 16 parts with individual settings:
- Midi channel
- analog out
- panning
- volume
- transpose
- split (link).



FX EFFECT a 24 bit DSP manages 2 ditable main FX groups:
- DSP1: 44 reverb and echo algorithms including hall, room, plate and delay
- DSP2 : 32 modulation algorithms like chorus, flanger, phaser and vibrato.
Full FX list HERE




arpeggiator ARPEGGIATOR each of the 16 global parts can have an arpeggiator (also outputs Midi).
The note/octave range can be assigned as well as velocity gate, latched, looped to specific bars or assigned to 19 tempo dividers (arpeggio list).
SUPERBEATS included 299 pre-programmer rhythmic patterns.
These patterns are usually sliced on the keyboards with 2 grooves variations and 4 fills and latch mode; it is also possible to program some user beats using 16 different tracks.
SYNC the internal masterclock from 25 to 300 BPM controls the superbeats, arpeggiator, the LFO frequency or can be clocked to MIDI source.
TIP: the enter button acts as a tap tempo.



mrmory MEMORY:
- 512 RAM patches
- 384 ROM patches on the Mophat
- 200 ROM arpeggiator patterns
- 100 RAM arpeggiator patterns
- 12 ROM microtuning
- 12 RAM microtuning
Created sounds can be only saved to Midi Sysex dump.

motherboard





mrmory EDITOR some computer-based editors for MOPHATT:
- Soundquest (mac / pc $$)
- Prodatum (mac / pc / linux free donation) LINK

motherboard



mrmory RELATED EMU Mo' Phatt FAMILY

emu mk6 Emu MK-6- 61 keys version same characteristics

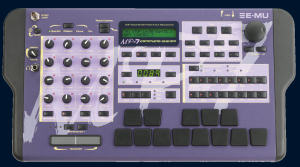

emu mp7 Emu MP-7 desktop version with 128 voices and 4 SIMM slots
Planet Phatt Planet Phatt previous module series, the Mophattcontains all waveforms.




demo
VST PLUGIN / SAMPLED VERSION free and commercial samples set:

  name price link demo
emu proteus x EMU CREATIVE Xtreme Lead X PLUGIN commercial.
Should contains all Mo' Phatt samples. For emulator X and Proteus X softwares.
effet n/a
planet phatt samples digitalsoundfactory commercial sample pack digitalsoundfactory n/a




demo AUDIO DEMO

demo Factory demo 1
demo Factory demo 2
demo Factory demo 3
demo Factory demo 4
demo Factory demo 5
demo Factory demo 6
demo Factory demo 7
demo Performance 1
demo Performance 2
demo GuitarWah
demo Rhodes
demo Rhodes + drum
demo Organ
demo Clavinet
demo Sub bass
demo String 1
demo String pizzicato
demo Pad filter
demo Pad ambient
demo Pad LFO
demo Pad dreamcatcher
demo Synth filter
demo Synth sample
demo Synth Formant voice
demo Synth Sample voice
demo Kit 1
demo Kit 1
demo Kit 1




video YOUTUBE VIDEO CLIP SELECTION

demo1 demo2 demo3
video demo1 video 2 Sunday Night Fever

xl-1 emu





manual
EMU Mo' Phatt MANUAL









EMU Mo' Phatt RESET PROCEDURE


1.Hold both Arrow Keys down and turn on the POWER On . Hold the cursor keys until the unit boots up in the DIAGNOSTIC
Go CURSOR KEYS. -select INITIALIZE USER DATA -
HOME/ENTER button

edit









edit

TIP: HOW To Create a Random Preset

using the Edit menu.
1. Press the Save/Copy menu button.
2. Move the cursor to the bottom line on the display and press Enter.








manual
SERVICE MANUAL / SCHEMATICS










EMU Mo' Phatt FOR SALE

EMU Mo' Phatt for sale
CHECK OUT EBAY OFFERS





memory internal flash memory reset


manual

- samples
-
so much functions

manual

- interface
-edit
-sampled hundred of times

comment

REVIEW "A rompler with a LOT of edit with EMU know-how. Many waveforms are useless and static, and sampled many times. Good kit drums"


mophat
