Roland U220 RS
PCM SOUND MODULE (1989)

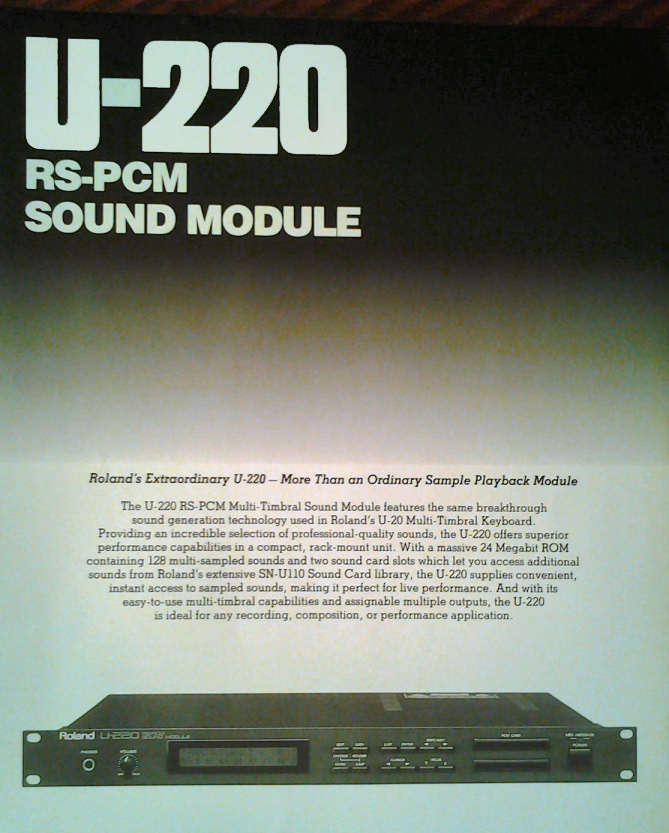

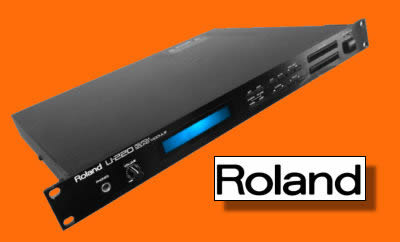

Rackmount version of the famous Roland U20 an early rompler keyboard.

u220
u220 rack

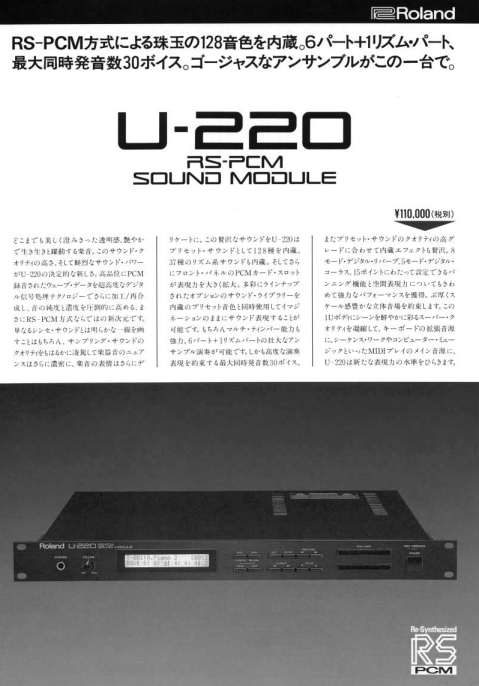

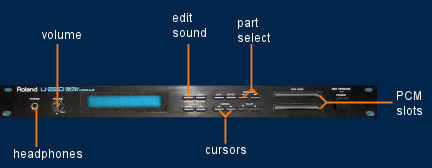

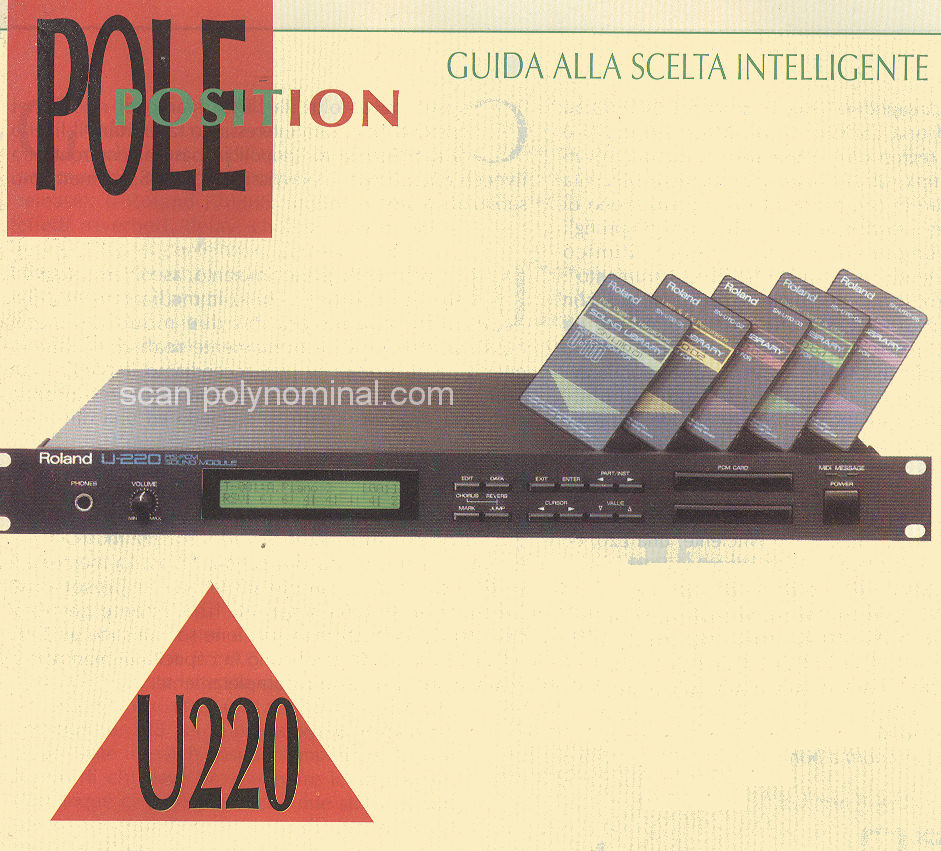

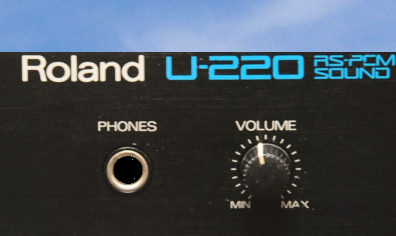

info RACKMOUNT MODULE The main panel features a 24 x 2 lines display, 12 buttons and a volume knob.

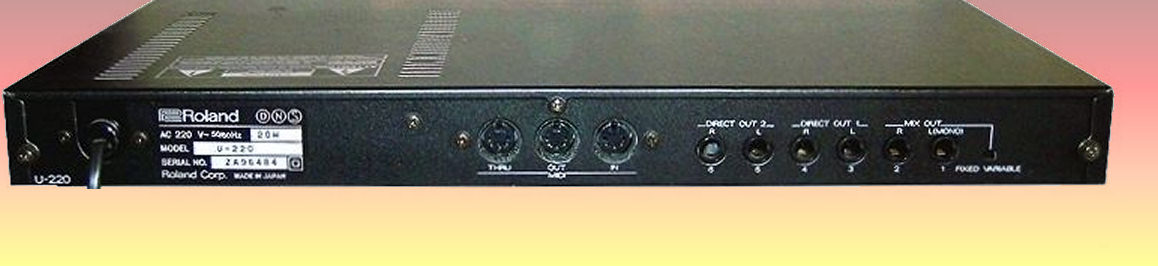

Back panel terminal connectors:
- Midi interface
- 2 main out
- 4 stereo aux outputs (no effects)

Front panel terminal connectors:
- 2 PCM card slots
- headphones out.

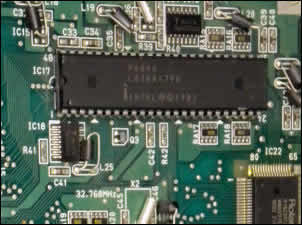

edit VOICE system based on a Intel P8098 CPU which handles up to 30 voices polyphonic subtractive synthesis RS PCM Resynthesized Pulse Code Modulation.
RS SYNTHESIS the RS concept resynthesizes and rebuilds new harmonics using a custom sample interpolation, but it badly lacks a filter structure. The RS could be mistaken with older L.A synthesis implemented in the later Roland D-50 model, but the reality is that RS is more like a plain rompler than a true synthesis system.


cpu u220



roland u220



edit EDIT sound hierarchy is a bit confusing: the lowest level is a tone which is composed by either 1 or 2 samples (2 samples tone reduces the whole polyphony) out of 128 tones available (drum is apart) with no possible edit.
STRUCTURE the upper level is the timbre composed by a single tone that has some editable parameters including:
- volume
- detune
- vibrato (LFO)
Finally 6 timbres make a patch for final performace.



edit timbre



edit WAVETABLE the 3MB PCM ROM (6X 512 kb ROM) is organized in 2 sound groups:
- acoustic samples eg: piano, bell, guitar, string, organ, brass ...
- precalculated basic waveforms e.g: pulse, saw and generated harmonics.


rompler

tone


edit PERFORMANCE module manages up to 6 timbres (+ 1 drum part) and individual settings:
- split zones
- stereo panning position
- volume
- voice priority
- analog out routing
- voice reserve : sets a number of voice for each part for priority
The incoming aftertouch can be assigned either to LFO, pitch and volume.

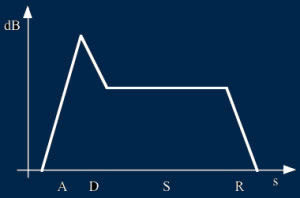

edit ENVELOPE a simple 4-stages amplitude EG.

adsr



edit LFO modulates only the amplitude with variable depth, delay time and 9 shapes: triangle, sin, square, saw up, saw down, trill (x2) and random (x2).
Special AUTOBEND function is a basic modulation for a pitch-warp effect, so it should be considered as another simpler LFO.


vibrato LFo



edit EFFECTS there are 2 main FX sections with limited edit parameters:
- reverb: 9 presets including hall, delay, room and gate
- chorus: 5 presets including chorus, flanger and delay.


FX





edit MEMORY:
- 128 tones
- 64 patches
- 64 performances
- 4 rhythm sets
RAM is doubled if RAM card model m-256 is present.

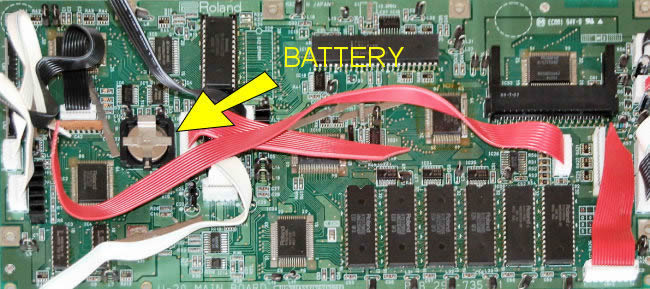

Battery replacement: a simple 3V CR-2032 in holder.



roland u20 battery





edit EXPANSION the ROM can be expanded using special PCM cards,
Here's the list of available models:

SN-U110-01 Pipe Organs & Harpsichords INFO
SN-U110-02 Latin and FX Percussion INFO
SN-U110-03 Ethnic INFO
SN-U110-04: Electric Grand and Clavi INFO
SN-U110-05: Orchestral Strings INFO
SN-U110-06: Orchestral Winds INFO
SN-U110-07: Electric Guitar INFO
SN-U110-08: Synthesizer INFO
SN-U110-09: Guitar and Keyboards INFO
SN-U110-10: Rock Drums INFO
SN-U110-11: Sound Effects INFO
SN-U110-12: Sax & Trombone INFO
SN-U110-13: Super Strings INFO
SN-U110-14: Super Ac Guitar INFO
SN-U110-15: Super Brass INFO
Musitronics Akkordeon (ID: 25)
Musitronics Analog Synthesizer
Musitronics Voices (ID: 22)
Musitronics Eldek (ID: 21)


roland-u-pcm-cards

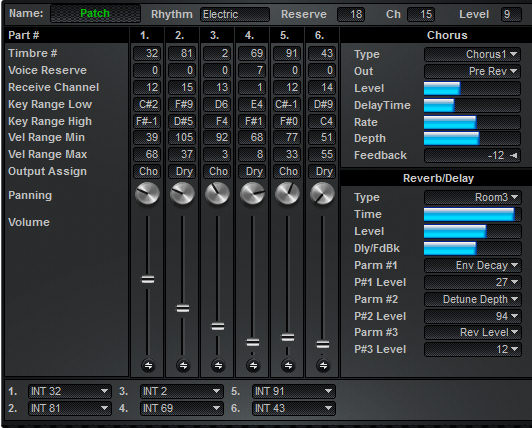

edit U-220 EDITOR here is a list of available software editors for the rack:
- Soundquest (MAC/PC commercial) PIC
- U20 patch editor (PC freeware ) PIC
- Sounddiver (out of business)
- LIB-220 (PC Sharewave) PIC
- Motu Unisyn (MAC commercial)
- Patchmeister (Amiga) PIC

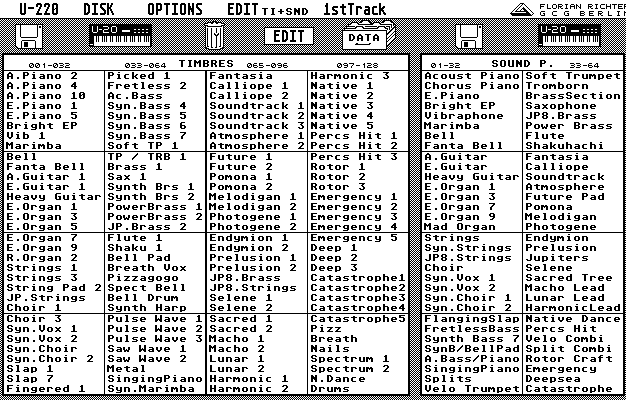

- Atari ST U220 / U20 editor pic below


atari st




edit RELATED FAMILY:

u family

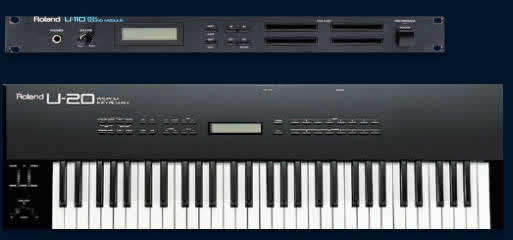

U110 first model, noisier circuit but more PCM slots card- also smaller internal ROM.



U20- like the u220 61 keys more performances controls






effet VST PLUGIN / SAMPLED VERSION there are some commercial and free samples sets:

  name price link demo
U110 sample pack Martin 78 FREE
drum sample pack
effet n/a
onion Nion

Commercial
sample pack

effet n/a





demo AUDIO DEMO

demo classic strings
demo sweet bells
demo ambient works
demo other strings
demo U20 arpeggiator
demo square waveforms
demo moments of...
demo Hammond RIFF
demo deep choirs
demo mellow rhodes
demo bass sequence
demo U20 factory song
demo U220 factory songs
demo U110 factory songs



effet Soundcloud U-220

demo1 demo1 demo1


video YOUTUBE VIDEO CLIP SELECTION

original composition on 220 U-220 with Kawai Q-80 Brandenburg Concerto No. 2 In F Major.
original composition with Kawai Q-80 Brandenburg Concerto No. 2 In F Major.



Roland U220






manual
ROLAND U-220 MANUAL








manual
U220 SERVICE MANUAL






U220 FACTORY RESET
