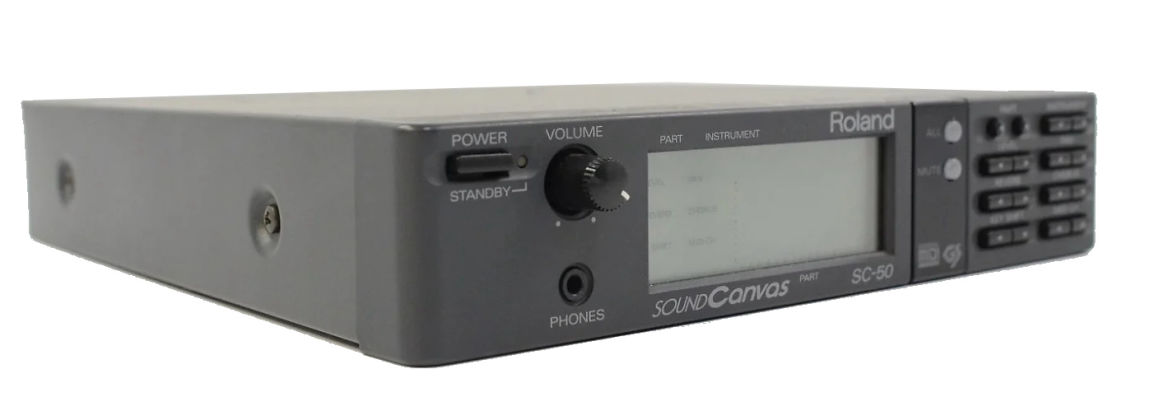

OVERVIEW Half rack unit with backlight display, the SOUND Canvas is a 16 parts multi - timbral sound module compatible with the General MIDI system, with up to 28 voices polyphony. Each part responds on its own MIDI channel. You can create a bit thicker textures by assigning more than one Part to the same channel, and one or two Parts can be designated as drums, which use their own entirely different set of sounds.
CONNECTIONS
MIDI (IN 1, OUT, THRU)
Audio Input CINCH x 2
Audio Output CINCH x 2
Headphone jack (front)
Computer terminal (quite obsolete rs232 / rs422 with selector needs specific driver)
PSU 9VDC with negative center at least 600 mA draw
TIP: roland SC50 initialize reset: Turn ON holding both instruments arrows (left and righ), INIT ALL , SURE, YES
SOUNDS rompler 18 bits 32 khz with 226 sounds and 9 drum kits in ROM, edit is very minal and needs external editor with sysex.
EFFECTS 4 simple digital GS chorus and reverb
• Number Of parts
16 (TWO parts can be set as drum pans)
• Maximum Polyphony
28 (voices)
18-bit @ 32 kHz
• Effects
Reverb
Chorus
• Display
70.6 x 24.5mm (backlit LCD)
Connectors
MIDI (IN 1, OUT, THRU)
Audio Input jack x 2 (L R)
Audio Output jack x 2 (L R)
Headphone jack
Computer terminal
• Power supply
DC 9V (AC adaptor)
600 m A
• Dimensions
218 (w) x 250(D) x
8. 5/8(W) x 9.7/8 (D) x J. 15/16 (H)inches
Half • rack mounting type
• Weight
1.3 kg
3 lbs 2 oz
• Accessories
Owner' s manual
AC adaptor
MIDI cable (1 m) x 1
Lithium (CR2025)
Audio cable (RCA pin pin < 1/4 inch phone type > )
• Options
Rack mount adaptor (RAD • 50)
Computer cable
RSC - ISAT (For IBM pc AT)
RSC .15APL (For Apple Macintosh)
