Roland IR3109

VCF IC by International Rectifier (1982?)

IR3109

Overview

DESCRIPTION ir3109 is a quad OTA integrated circuit (DIP16) voltage controlled filters VCF , developped in the 80' by International Rectifier for Roland synthesizers and modules. It has been featured in many historical machines and have a very pleasant sound. Today it is quite difficult to find one a good price, but some companies have managed to clone some new batches. Here's the list of IR3109 machines:

ModelType Model
Jupiter 8Synthesizer-
Jupiter 6Synthesizer-
Jupiter 4Synthesizeronly on second release
PromarsSynthesizeronly on second release
Juno 6Synthesizer-
Juno 60Synthesizer-
Jx3pSynthesizer-
Juno 106Synthesizerencapsulated on 80017a
Mks 30Moduleencapsulated on 80017a
Mks 80ModuleOnly rev4
Sh101Synthesizer-
MC202Module with sequencer-
HS60Synthesizerencapsulated on 80017a
JUNO106SSynthesizerencapsulated on 80017a

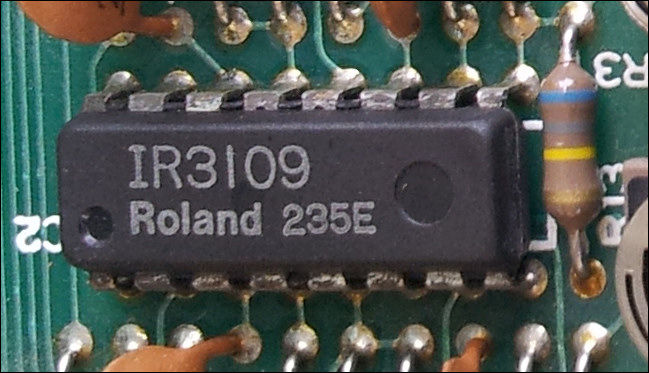

Ir3109

Ir3109 specs

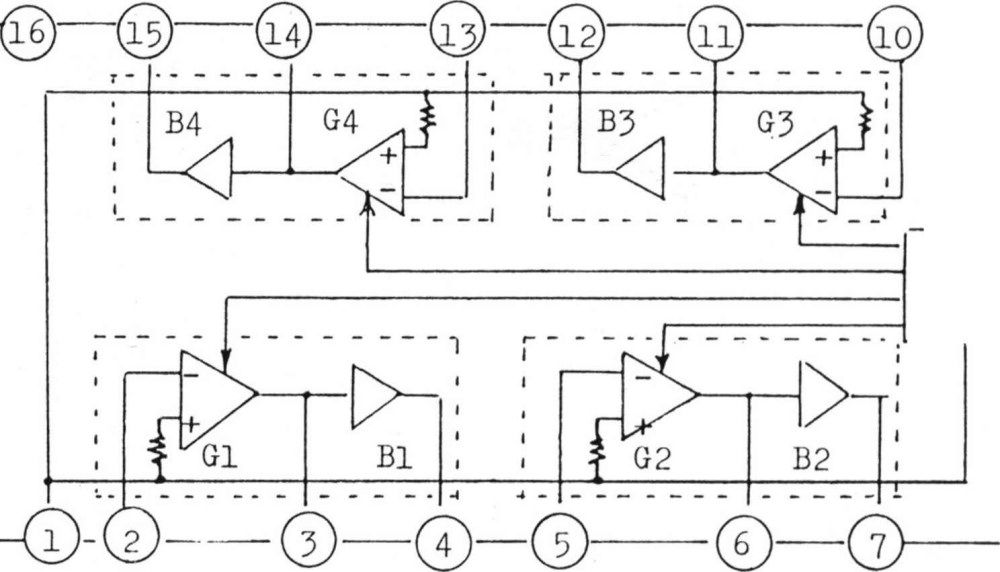

The IR3109 contains four variable transconductance amplifiers designed for VCF applications in electronic musical instruments.  The device is equipped with four high input impedance buffers, and anti-log circuitry ( V-in to I-out) which controls conductances of four amps.
- wide transconductance variable range (1 μ ℧ -10 ℧  )
- low input offset voltage ( less than +- 3mV) (transconductance amplifier)
- high input impedance MOS P-channel (buffer)

Roland Jp8
