Moog Subsequent 37 CV

Price: 1500€ / manual / schematics (2017)

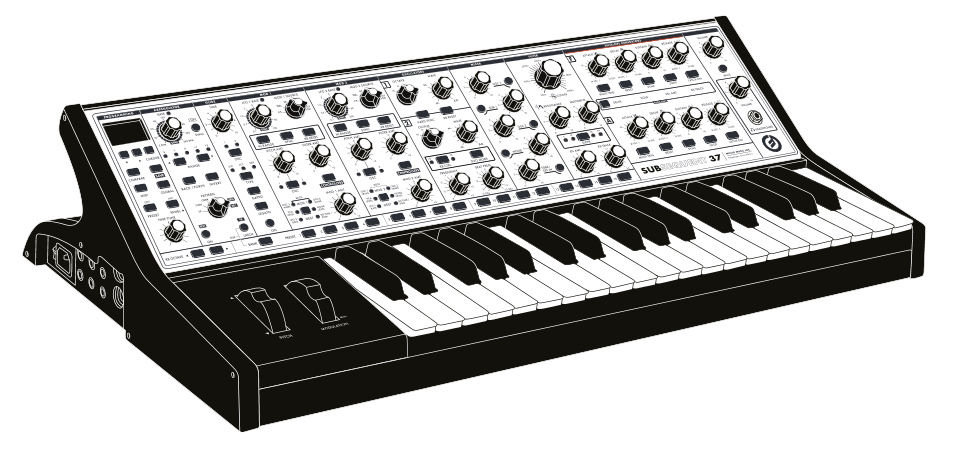

Moog subsequent 37 CV

Overview and Oscillator

KEYBOARD  a 37 keys, dynamic with aftertouch, 2-notes (paraphonic) analog synthesizer, Main panel features 40 knobs and 74 switches and a simple mono display. The moog subsequent 37 CV is a limited edition (2000 approx) of the Subsequent 37 with new CV connection for better interaction with modular machines..

OSCILLATOR 2 syncable oscillators with same footage (2' 4' 8' 16') based on Moog’s continuously variable waveform (from moog voyager) +suboscillator  + noise generator that can be mixed in the dedicated MIXER section. The 37CV is a paraphonic synth the two oscillators can be played individually in special button DUO MODE.

subsequent 37CV

Filter, EG and LFO

FILTER  typical 20Hz-20kHz Moog Ladder  type with resonance and different slopes; It is possibile to filter external sources with the dedicated input on the side. Special Multidrive knob controls how hard you drive the OTA and FET stages and feedbacks, which are located between the filter and the amplifier in the signal path.

ENVELOPE 2 DAHDSR looping envelopes

LFO 2 fully assignable modulation busses assignable to matrix. LFO are digital and features various shapes: Triangle, Square, Saw, Ramp, Sample & Hold, Filter EG/PGM.
subsequent 37CV

Arpeggiator,  sequencer and memory

ARPEGGIATOR from 2  to 280 BPM arpeggiator ith 4 modes direction which can be synched and slaved to clock with variable dividers.
Arpeggiator have special latch mode, backwards, tie and pendulum mode.

SEQUENCER  Special sequencer mode with 64 steps and famous moog ratchet notes.

MEMORY  16 banks of 16 sounds, sound can be edited using the free editor

editor

Subsequent 37 CV Technical Data

Analogue Synthesiser

  • 37 Velocity-sensitive keyboard with aftertouch
  • Mono- and duo paraphonic mode
  • Arpeggiator
  • Step Sequencer
  • 256 Presets
  • 40 Controls
  • 74 Button
  • LCD display
  • Classic Moog filter
  • Feedback
  • Multi Drive
  • 2 Modulation buses
  • DAHDSR envelopes
  • Dimensions (W x D x H): 679 x 375 x 171 mm
  • Weight: approx. 9.98 kg

Connections:

  • Line input 1/4" mono jack
  • Line output 6.3 mm mono jack
  • Headphone output
  • MIDI I / O
  • 4x CV Outputs + 2 x Gate Outputs
  • USB

Data

Number Of Keys 37
Touch-Sensitive Yes
Aftertouch Yes
Split Zones No
Modulation Wheel Yes
Number of simultaneous Voices 2
Sound Engine Analogue
MIDI interface 1x In, 1x Out
Storage Medium None
USB-port Yes
Effects None
Arpeggiator Yes
subsequent
