Semi-modular monosynthesizer (2015)

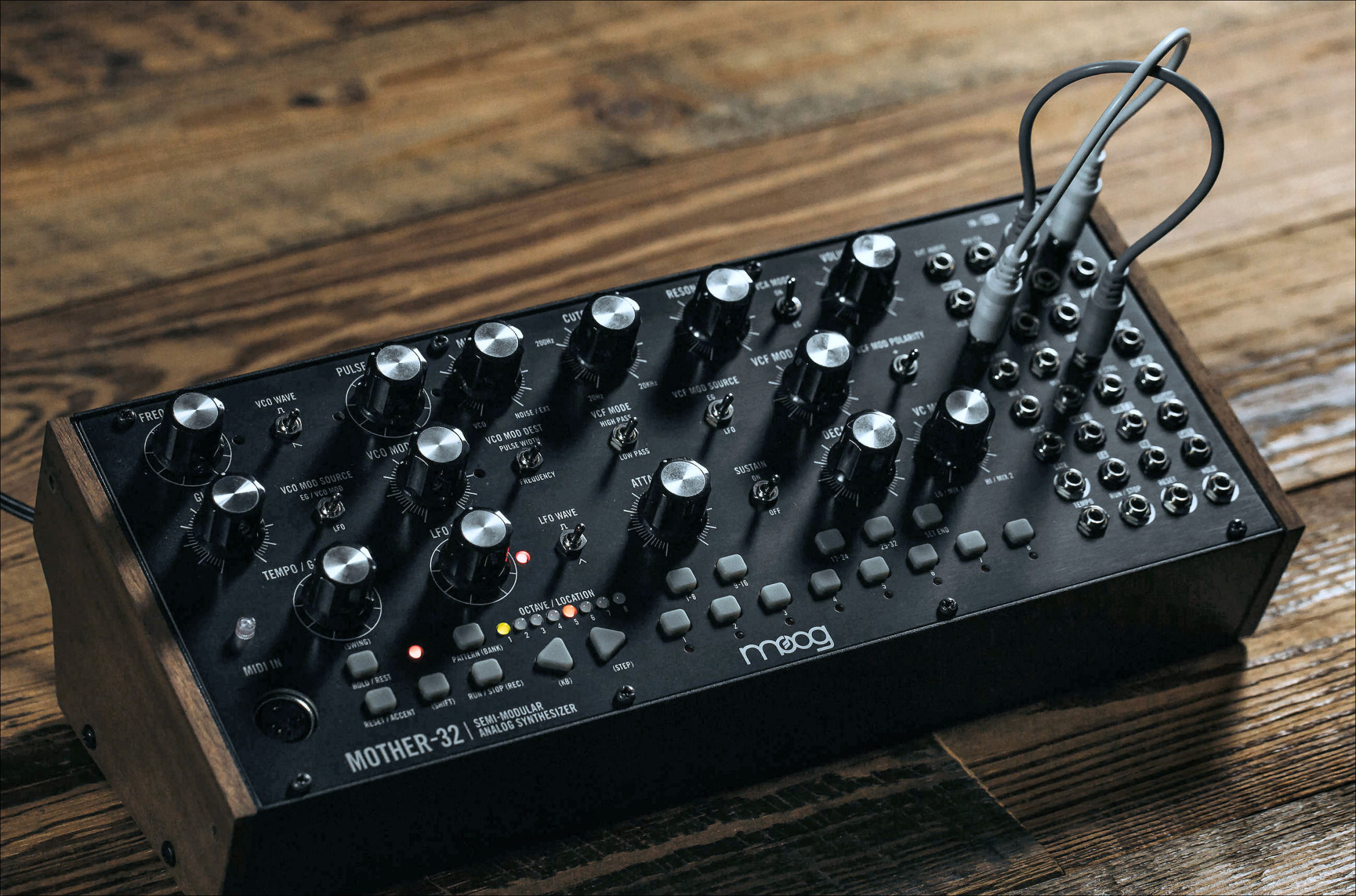

OVERVIEW High-end finish module with wood-sides and 11 shiny knobs, the mother features 32 frontal patch points for interaction with modulars or other CV synthesizers. It offers also a handy front Midi connection but sadly no display but some minimal leds for sequencer operation.
Many function (especially settings) must be done using tricky key combo (I hate that), especially hateful the ASSIGN patch point with up to 16 options. Basically the unit is prepatched and can be played directly, of course you can route, stop, modulate any parameters using the patch panel.
RELATED SERIES MODELS :
Moog DFAM
Moog Subharmonicon
Moog Bfam
Moog Spectravox
TERMINAL CONNECTORS
- Rear jack audio (when euroracked we must use front VCA OUT)
- Rear 12 VDC input (switch PSU)
- Rear kensinghton thief stuff (dunno)
- 32 patch points (IN and OUT depending on label color)
- Midi INPUT
SEQUENCER astep sequencer is incorporated with up to 32 steps lenght, organized in 8x8 banks memory to save your works.
Notes entry can be done using the 13 rubber buttons (located as a mini keyboard to help the data entry) the TEMPO/GATE LENGHT is used to set some functions like note lenght, octave high glide, swing amount, accent and very tangerine dream like "RATCHET" note repetition. The sequencer can be also synched to both Midi clock or analog incoming pulses or even used to control another CV synthesizer (not midi out!)
VCO waveforms |
Sawtooth and pulse, the latter with PWM. |
VCO range |
1V/oct from 8Hz to 8kHz, maximum frequency ~ 16kHz. |
Portamento |
Yes. |
Noise generator |
White. |
Voltage controlled mixer 1 |
Mix between VCO and noise/external signal. |
VCF |
Resonant 24dB/oct switchable low/high-pass, 20Hz to 20kHz. |
Audio VCA modes |
On/contoured. |
LFO waveforms |
Triangle and square. |
LFO range |
0.1 to 600 Hz. |
Contour generator |
Switchable AD/ASR. |
Voltage-controlled mixer 2 |
Two channels, externally patched. |
Multiple |
One-in/two-out, buffered. |
Keyboard |
13 buttons with eight octave settings. |
Sequencer |
32–step, 64 memories. |
Patch bay |
32 connections (3.5mm). |
Audio output |
Quarter–inch TRS, combined line-level and headphones. |
Dimensions |
Eurorack 60HP, 26mm deep. Case size 319 x 107 x 132 mm. |
Weight |
1.6kg. |
Power supply |
Universal wall-wart: input 100–250 V AC, 50–60 Hz, output 12V DC, max 1A. |
Current draw |
Maximum 230mA. |
