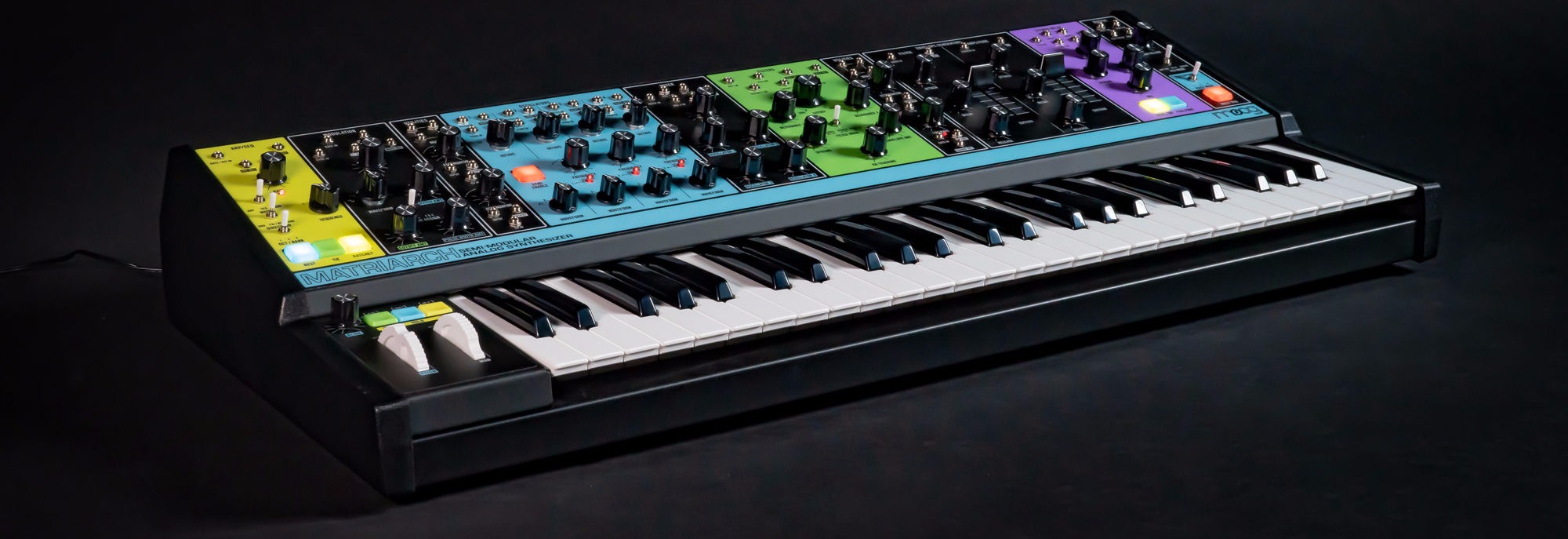

Moog Matriach

Matriarch Addendum:

• Mono, duo, and 4-note paraphonic playability
• Stereo analog delay w/ up to 700ms of MIDI sync-able stereo or ping/pong style repeats
• 256 step sequencer w/ up to 4 notes per step and 12 stored patterns. Can be decoupled from Matriarch to independently sequence external gear
• Arpeggiator with selectable modes (Order, Forward/Backward, Random)
• Semi-modular analog synthesizer - no patching required
• 90 modular patch points for endless exploration
• Expressive 49-note Fatar keyboard w/ patchable velocity and aftertouch
• 4 analog oscillators w/ selectable waveshape and hard sync per-oscillator
• Full-range analog LFO with 6 selectable waveshapes
• Dual analog filters with parallel (HP/LP), stereo (LP/LP), and series (HP/LP) modes available
• Dual analog ADSR envelopes
• Dual analog VCAs
• 3x bipolar voltage controlled attenuators with ring mod capability
• 2x4 parallel wired unbuffered mults
• Additional simple analog LFO useful for adding modulation to delay, filters and VCAs.
• 1/4“ external audio input for processing guitars, drum machines, and more through Matriarch’s analog circuits
• Stereo ¼” and 3.5mm Eurorack level audio outputs

MODULE PROVENANCE:

• Oscillators based on the Minimoog
• Mixer based on the classic CP3 module
• Filters based on the classic 904A module
• Envelopes based on the classic 911 module
• VCAs based on the classic 902 module
• Analog Delay based on the MF-104M and 500 Series effects

SPECS:

• TYPE - Semi-Modular Analog Synthesizer
• SOUND ENGINE - 100% Analog
• NUMBER OF KEYS - 49 Full-Size Keys
• TYPE OF KEYS - Velocity-sensing with Aftertouch (Velocity and Aftertouch are not hard-wired – available via MIDI, KBD VEL OUT and KB AT OUT jacks)
• OTHER CONTROLLERS - Pitch Bend, Mod Wheel, Variable Glide, Expression pedal in to CV out, and Sustain Pedal in
• POLYPHONY - Monophonic, 2-Note Paraphonic, and 4-Note Paraphonic
• SOUND SOURCES - 4x Analog Oscillators with Selectable Waveforms (Oscillators 2, 3, and 4 support Hard Sync), White Noise Generator, External Input jack.
• MIXER - 6 input (5 eurorack level and 1 instrument level) DC coupled discrete mixer with asymmetrical clipping behavior
• FILTERS - 24dB/Octave Low Pass Filter with Resonance, 24dB/Octave switchable Low Pass/High Pass Filter with Resonance. Configurable in parallel (HP/LP), stereo (LP/LP), and series (HP/LP).
• MOD SOURCES - Analog Modulation Oscillator with selectable and patchable output (Sine, Saw, Ramp, Square, Stepped Triangle, Smoothed Random, Sample and Hold, Noise). Additional LFO (Tri, Square)
• ENVELOPES - 2x Four-Stage ADSR with End of Envelope gate outputs
• ATTENUATORS - 3x Bipolar Voltage Controlled Attenuators with Ring Mod capabilities
• MULTS - 2x4 Parallel-wired Non-buffered Patch Points
• VCAs - 2x discrete analog VCAs routed in stereo
• EFFECTS - Stereo Analog Delay with Ping/Pong, MIDI and CV clock sync, voltage controlled Mix, and independant L/R delay times, feedback, and I/O.
• ARPEGGIATOR / STEP SEQUENCER - 256 Steps with up to 4 notes per step; 12 Sequence locations
• PATCH POINTS - 90 x 3.5mm front and rear panels, 49 Inputs, 33 Outputs, 2x4 Parallel-wired Mults.
• PEDAL INPUTS - 1/4” Sustain, 1/4” Expression
• AUDIO INPUT - 1/4” TS jack (Rear Panel)
• AUDIO OUTPUTS - 2x 1/4” TS jacks for line level output (Rear Panel), 1/4” Headphone jack with dedicated level knob (rear panel), 2x 3.5mm Eurorack level outputs, 2x 3.5mm Delay outputs
• MIDI I/O - 5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)
• DIMENSIONS - 32” (81.28cm) Wide x 14 1/4” (36.19cm) Deep x 5 1/2” (13.97cm) High
• POWER - Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC, 50/60Hz with screw-on barrel connector.
• WEIGHT - 24lbs. / 10.89kg
