Montarbo R16
Programmable digital effects processor (199?)
Programmable digital effects processor (199?)
Company: Montarbo
Model: R16
Class: effect steel chassis rack 1 unit
Keyboard: none
Dates: 1990?
Country: Italy
Weight: 4kg
Dimensions: / mm
Price: 200€
Display: LCD
Technology: digital DSP
Polyphony: 1 (when using internal sampler)
Multitimbric: 1 part
Oscillator: none
Filter: digital LPF HPF
Memory: 64 slots
Midi: in out thru
PSU: internal
OS: can be updated by eprom
IC: -PCM54 HP Burr Brown DAC
Rear panel connectors:
-Midi Input
-custom remote controller
-4 outs with pad
-input balanced + unbalanced
We're looking for the Montarbo Atari Software for Atari ST, for real time FFT
- No official VST plugin
- NO owner's manual download
- No service manual yet
Scegli tra la vasta selezione di blocchi già pronti più recenti: intro a tutto schermo, caroselli immagini di bootstrap, Slider dei contenuti, galleria di immagini responsive con lightbox, parallax-scrolling, sfondi video, menu hamburger, intestazioni fisse e altro ancora.

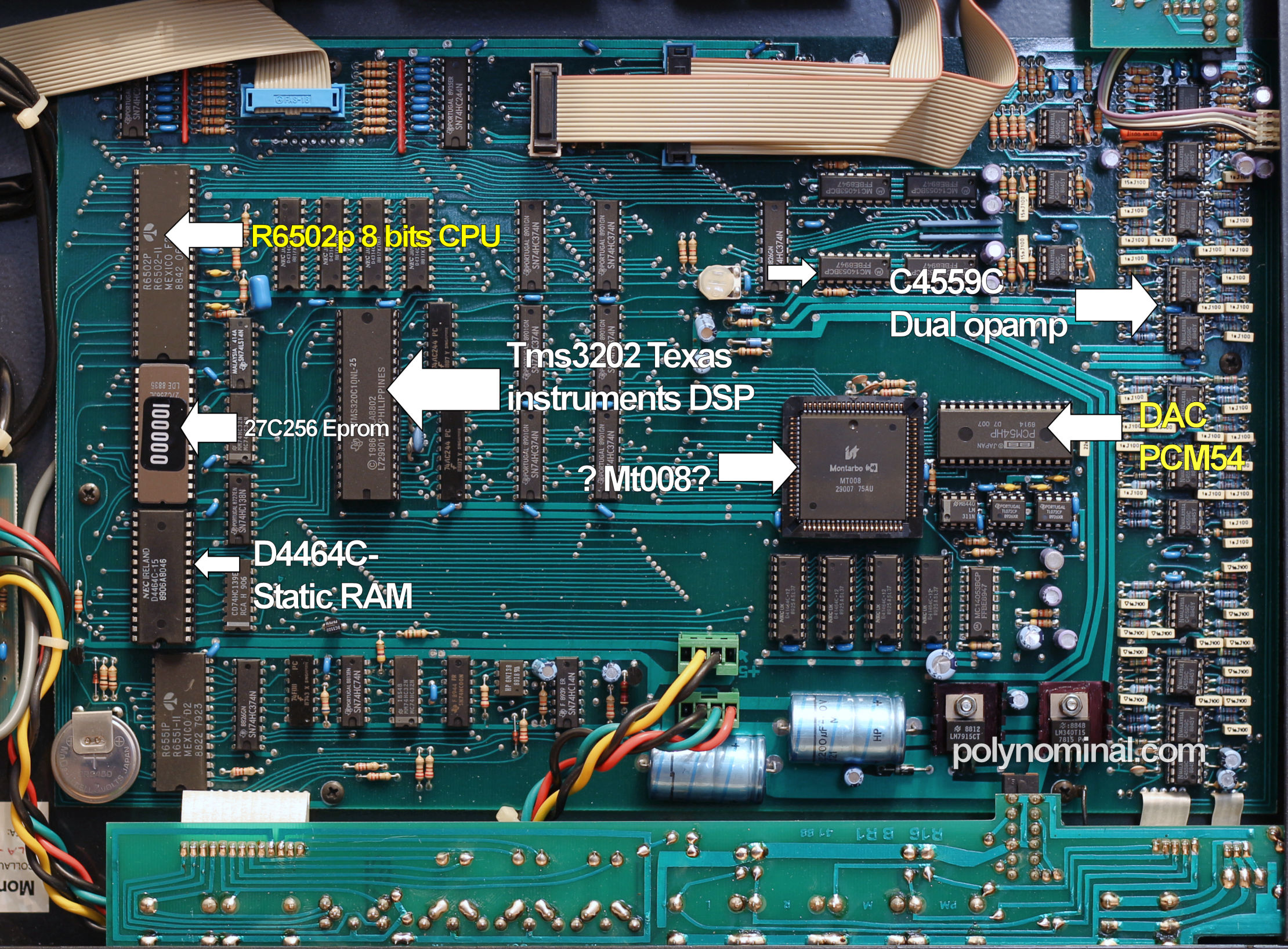

Core with R6502 8 bits cpu + mysterious MT008. The DSP is a single tms3202 Texas instruments which calculates delay
flanger,multitap ,chorus ,tremolo
pitch and freeze/sample.
-PCM54 HP Burr Brown DAC
-C4559C dual operational amplifier
-Mc14053bcp multiplexer
-HP6N138 opto
-R6551 Asynchronous CIA
-D4464C-15 Static RAM
-27C256 Eprom OS
An very old software for atari st was available to calculate FFT real time effects with 3d. We still do miss it!
64 slots that can be loaded/saved by Midi Sysex. Backup memory with CR battery soldered to the mobo.
- rare
- limited panel edit
-good sound
- midi edit
- atari expansion
