Hammond Gm 1000

GS Module (1994)

hammond

"Gm GM module with of course particular attention to organ, also branded as Sound Saurus BH-1000."

Overview

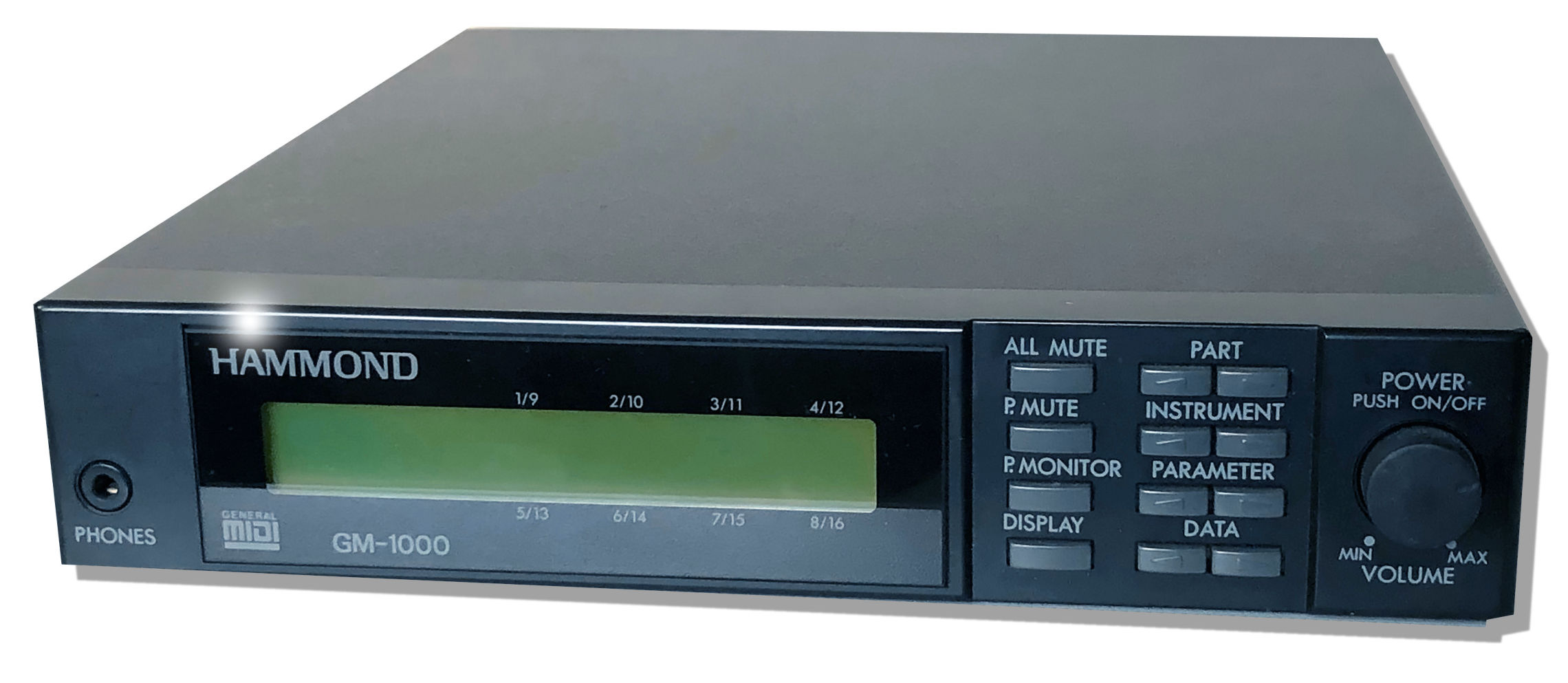

OVERVIEW half rack module, with 16x2 lines display backlit. General-Midi Expander with traditional (and variation) GM-sounds and Hammond sounds based on VASE (versatile advanved sound technology) developped by hammond-suzuki.
INITIALIZE RESET: turn on pushing (ALL MUTE) button

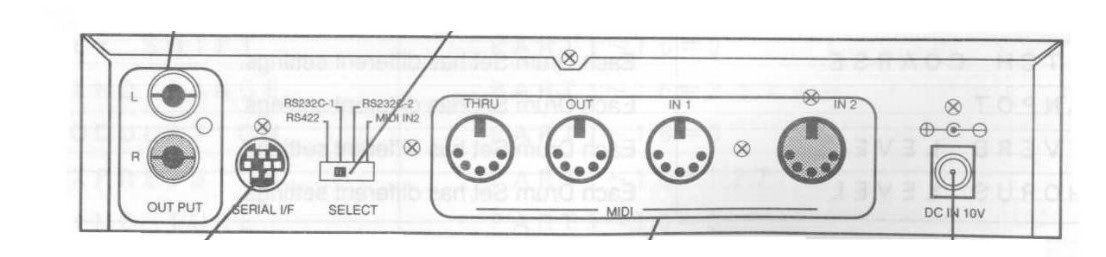

TERMINAL CONNECTORS: Not much on the front but headphones, rear:
-audio out cinch LR
-Serial I/O for old computer RS232 (select with dedicated nearby switch selector)
-2 Midi input + 1 out + 1 thru
-PSU input, negative center 10VDC

Hammond GM 1000

Sound and effects

SOUND plain rompler with 8mb wavetable at 16 bits 44kHz machine, includes 266 sounds (GM 128 voices + 138 variations) + 9 drums sets (102 voices) = 368 voices;  Special, and most interesting the 32 hammons variations with dedicated digital leslie emulation

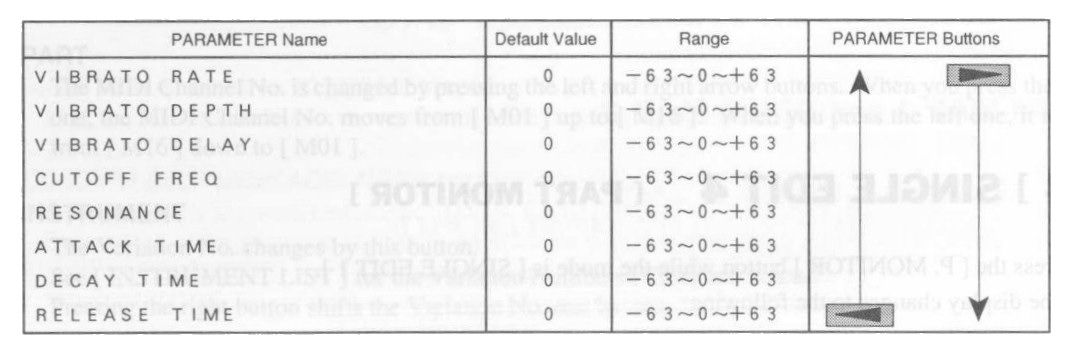

Sounds cannot be really edited, but module a couple of parameters such as envelope attack/decay/release, filter cutoff and resonance, plus LFO modulator vibrato depth, delay and of course rate.   Module is fully compliant to sysex editor for advanced editing.

EFFECTS: 8 reverbs: like room hall plate and 8 choruses including also echo, and leslie , flanger and delays. Parameters can be adjusted basically on the screen.

hammond gm1000

 Gm1000 Technical Data


    Brand: Hammond
    Model GM1000
    Type: half rack Organ module
    Year :1995
    Sound generation: VASE system (Versatile Advanced Sound Engine), PCM, eight MB ROM, 16 bit / 44.1 kHz sampling rate
    Polyphony: 32 voices, 16 times multimode
    Sounds: 128 GM sounds,
    138 variations, nine drum sets,
    102 drum / percussion sounds,
    40 organ sounds
    Display: 2 x 24 character LCD, backlit
    Effects: eight reverb and eight chorus effects (delay, leslie)
    Sound processing: LFO, filters and envelopes via controller and SysEx
    Audio: line-out (l / r, cinch), headphones (mini jack)
    Connections: 2 x MIDI In / Out / Thru,
    To-host (8-pin mini-DIN), select switch, external power supply
    Special features: two MIDI inputs; Leslie effect; 12 special Hammond presets
    Dimensions: 21.8 x 25.1 x 4.4 cm, 1U
    Weight: 1.5 kg
