Gem Sk- 88

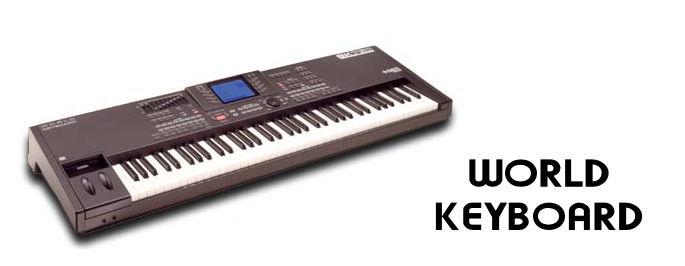

World Keyboard

Gem

Overview and synthesis

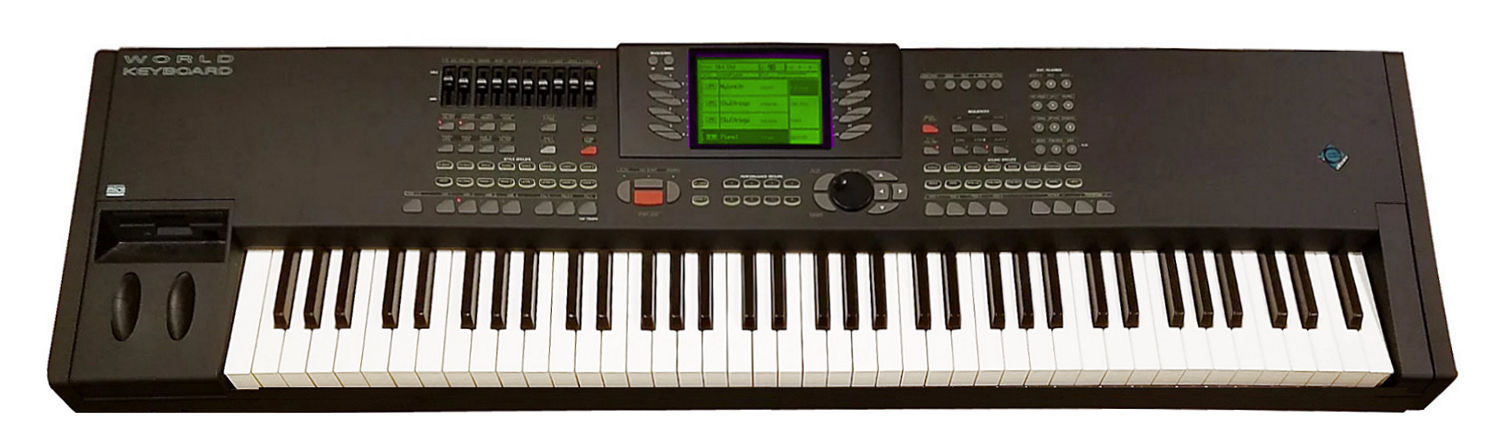

Overview After the WK4, General Music offers  the SK88, 88 keys weighted arranger with the possibility of loading samples.
 Another version is the 76 keys Sk-76 and also a UPDATED version Sk880 with better keyboard, new sound set and IDE controller

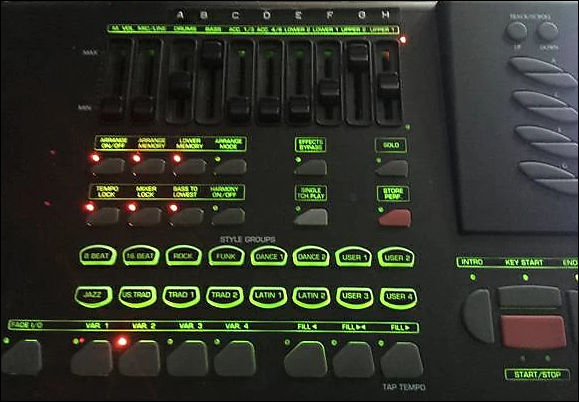

KEYBOARD Keyboard features pitch bend and modulation, a unusual trackball and quite obsolete 3 "1/2 DD and HD floppy disk drive and two stereo headphone outputs. LCD screen of 320 x 240 pixels with nice  readability.
At the rear connectors:  four separate audio outputs, 2 MIDI In, 2 Out and 2 Thru (sorry!), Four sockets for pedals , two microphone inputs, two other lines and finally two video outputs - operational with the optional audio / video card - in analog SVHS format (both PAL / NTSC. )

world

Sound, sample and RAM

SOUND 64 voices polyphony, the SK88 has 8 MB of sounds in ROM (rompler technology) and 600  sounds  classified into sixteen groups (piano, guitar, synth, bass, etc.). Each category is then divided into sixteen banks of eight sounds. The first is dedicated to General MID and the others are specific to the GEM keyboard. Also locations are available to save your own sound

SAMPLE /  RAM Sounds can be processed by 64 programmable digital filters (low pass, high pass, bandpass, parametric ...). In addition, samples from other machines such as the GEM WX, WK and the S series, the Kurzweil K2000, the Akai S1000  can be loaded inside the device; also Wave (PC), AIFF (Macintosh) and classic (but sluggish) MIDI Sample Dump Standard. RAM memory with a capacity of 2 MB expaded with SIMM modules up to 32 MB maximum. In addition, an optional 2.5 "internal IDE hard drive (max 500 MB)

Arranger

Arpeggiator,  sequencer and memory

ARRANGER  128 internal styles (96 in ROM and 32 programmable in RAM), each recorded on eight tracks - drums, bass and six accompaniments. With four variations (12 introductions, 12 finals and 48 different patterns per style), you are at the head of over 3,000 patterns.
The ROMstyles are classified into eight categories ranging from jazz to techno, including funk, rock or salsa. Obviously, each of the styles is editable and can be stored in one of the 32 memory locations provided for this purpose.  A capacity of 250,000 events, up to sixteen songs on thirty two tracks (resolution of 1 / 192th quarter note) Standard edit functiona as delete, move and copy.

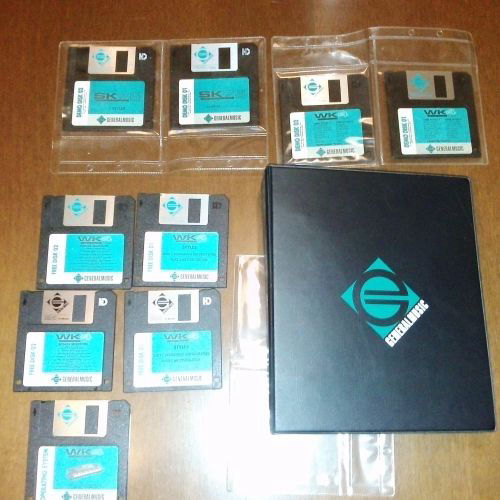

MIDI The sequencer is compatible with the MIDI File standard (0 and 1 + lyrics), and retro compatible with non-standard GEM formats of the WK, WX / SX series.  It is possible to manadge MS-DOS (HD 1,44 kb) and  historical vintage computer Atari ST (but onlyDD 720 KB)

disk

Gem Sk88 Technical Data

Keyboard
 76 / 88
Polyphony
 64 notes max
Sounds
 600 editable
Real-time performances
 64
Parts
 Multitimbral 32 parts
Styles
 128 (96 ROM + 32 programmable) x 4 variations
Effects Processors
 4 editable
Sequencer
 32 tracks, 250,000 events, Microscope edit, QuicRec, resolution 1/192 ppq
Disk Drive
 3.5" HD/DD
Pedals
 3 programmable
Connectors
 4 Audio Out, 2 Audio In, Serial port, 2 MIDI In/2 Out/2 Thru, Video Out (RGB/S - VHS), Dynamic pedalboard, 2 headphones
Display
 Graphic display (320 x 240 pixels)
Controllers
 2 wheels, 10 sliders, 4 pads
Extra
 Open Software (upgradable via disk), backlit buttons
Optionals
 Audio/Video interface, Hard Disk interface
Dimensions (LxHxD)
 126.5 x 12.5 x 37 cm / 135 x 13.5 x 42 cm
Weight
 21.6 kg / 34 kg
Sk88
