Synthesizer deluxe (2019)
KEYBOARD at first glance the iconic finger conductivity is disappeared! this is a quite simple module (it can be euroacked width: 70 HP) with front Midi:

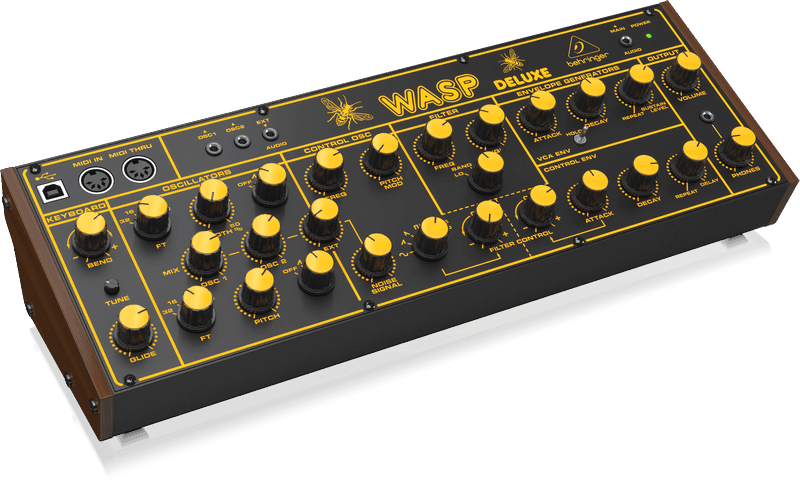

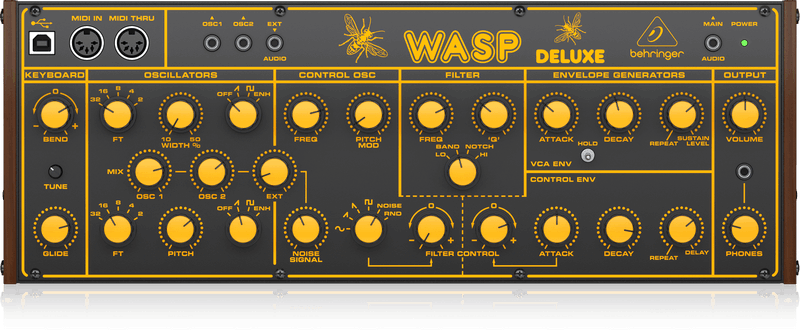

The main panel is quite similar to the original design.
OSCILLATOR mono synth (it can be 16-note Poly Chained with other units). Like the original (digital) oscillator with NE555, the behringer features 2 osc with three variable waveforms: sawtooth, square wave and a new mode that should add some clarity to the oscillator’s tone. Both oscillators can be adjusted across a wide 5-octave range (32’, 16’ 8’, 4’ and 2’). Oscillator 1’s wave shape can be adjusted via the Width knob, while oscillator 2 has a pitch control that can be adjusted against oscillator 1’s pitch to create modulation effects. A noise generator can be mixed to the mix.
FILTER multi-mode VCF with Lo, Hi, Band and Notch filter options as well as a Freq and Q resonance
ENVELOPE two analog Envelope Generators for modulating the VCA and VCF; the VCA Envelope section contains an Attack, Decay, Sustain Level/Repeat knob as well as a hold switch that can be used to sustain a note indefinitely while the Control Envelope features Attack, Decay and Delay/Repeat knobs
LFO six waveform shapes such as a sine wave, rising sawtooth, falling sawtooth, square wave, noise and random which can be further manipulated with the Frequency and Pitch knobs.
