Yamaha Mu100







yamaha mu100

info Country: Japan
Weight:1.3 kg
Dimensions: 220 x 210 x 44 mm
audio demo trend price : 80€
manual demo comments

Yamaha Mu100
Tone Generator (1997)



Half rack synthesizer from MU series based on PCM romplers with XG / GM midi files compatibility

Also a rackmount version called Mu100R with 2 plg expansion installed
rack
edit

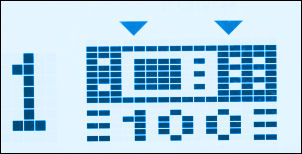

info RACKMOUNT main panel features an LCD display, 16 buttons 2 knobs for input gain and master volume.

Back panel terminal connectors:
- Midi interface (2 In + 1 out + 1 thru)
- host serial connection (obsolete) for MAC/PC
- main out RCA
- signal input RC

Front panel terminal connectors:
- headphones out 1.5 mm
- signal input with gain


edit TECH
main core Renesas H8 manages up to 64 voices polyphony, relative DAC is a APD63200GS-E1. A basic Mu100 voice uses 1 sample PCM (part) at 16 bits based on AWM2 synthesis.

attack

PCM and Sound cannot be really edited but by Exclusives Systems.

edit




edit PCM WAVETABLE the internal 20.MB wave ROM is organized in 3 wave categories:

PCm

- 1267 PCM tones

- 46 drum kits





edit
EXPANSION the Mu100 can be expanded with 1 PLG100 board:

XG PLG

- PLG 100DX: FM synthesis like DX7

- PLG 100VL: Virtual Acoustic

- PLG 100VH: a kind of harmonizer effect

- PLG100XG: another set of XG sounds





editPERFORMANCE The MU100 handles 32 Midi channel is also fully compatible with the GM and Yamaha XG format.

XG midi files



edit FILTER is a digital low pass filter that can be assigned to LFO (wheel modulation)

FILTER



edit LFO the modulator can be assigned to 3 destination (PMOD AMOD FMOD)

pitch wheel

- LFO to pitch

- LFO to filter

- LFO to amplitude





edit ENVELOPE 2 EGs:

EG

- EG01 amplitude: 3 segments

- EG02 pitch: 2 segments + 2 times



edit EFFECTS Reverb and Chorus are "System" effects for the overall mix. Insertion 1 and 2 can be applied as an "Insertion" effect to any specific instrument part. Variation can be set to either System or Insertion. Variation and Insertion includes:

effect Rotary Speaker, Tremolo, Overdrive, Distortion, Auto Wah.Plus each part has its own 2-band EQ + 5-band EQ for the overall stereo mix.

editTIP Analog input can process external sources
.



edit MEMORY:

battery replacement

- Preset Performances: 100 slots

- User Performances: 100 slot

No external media.

edit Internal battery replacement: a simple CR2032, that ebay crooks will sell to you a 5/6 the price!




edit RELATED FAMILY:

MU series

Mu series started in 1994:


Mu 5, 10, 15, 50, 80, 90, 90r, 100R, 128, 500, 1000 and 2000





demoVST PLUGIN / SAMPLED VERSION

softsynth Yamaha released a few versions of their XG softsynth, but now no more updated and no more compatible :

S-YGM S-YXG50 S-YXG50NT S-YXG50 VSTi
S-YXG70 S-YXG100 Plus S-YXG100 PVL S-YXG/DM S-YXG2006LE


Company: Yamaha
Model: Mu100
Class: Module
Dates: 1997
Display: back lit LCD
Synthesis: PCM rompler
Synthesis: AWM2
Resolution: 16 bits
ROM size:
Polyphony: 64 notes
Multitimbral: 32 parts
PCM: 1267 tones
ROM: 20 MB
Oscillator: digital
Filter: Digital Low pass
LFO: 1 modulator
Envelope: 2 EGs
Memory: 100 user slots
Effects: 6 algorithms
CPU: Renesas H8
DAC: APD63200GS-E1 / XP867A00
PSU: 12VDC PA-5B AC



demoDEMO:

demo factory
demo fun track

demohave some MU100
demo?
upload!





manual

manual


manual
-FREE SOUNDSET
-MORE DEMO
-EPROM OS DUMP



edit Sample SHOP
edit Report Error
edit SUPPORT US




YAMAHA mu100 FOR SALE

mu100 for sale
CHECK OUT EBAY OFFERS





xg logo xg logo xg logo
awardSPECIAL AWARDS:
solid
Retrogamer

solid
CHEAP as HELL


comment

REVIEW "old fashioned midi player with limited edit. For retrogamers or Midi files fan. Synth freaks should look away"

manual manual
-old fashioned - poor edit interface
-cheap
- limited
