Erica Synths Syntrx

(in preorder 2020)

Erica-Synths

"A modern inspiration from classic Synthi AKS with digital matrix, not s not a clone as  the developers have designed from scratch new circuits for it "

Overview

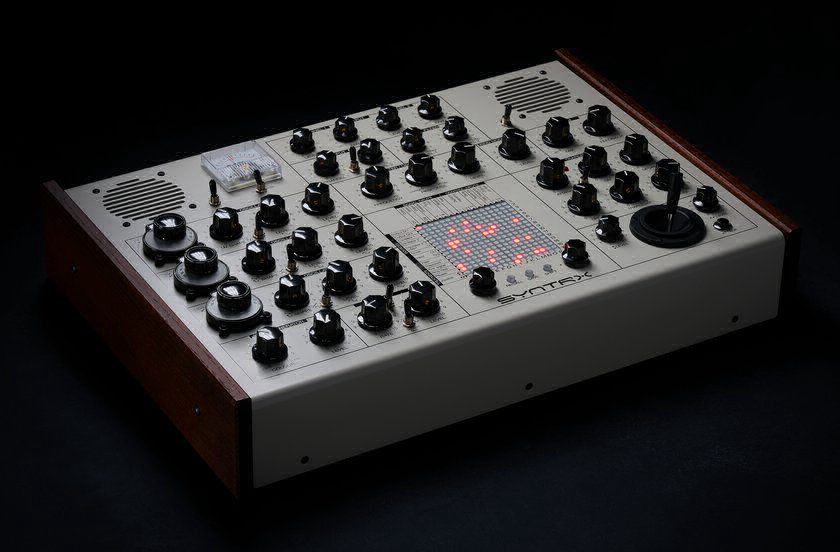

KEYBOARD Classic EMS sylish case with icon matrix (but digital no more pins) , internal speakers, spring reverb and a joystick performance assignable to Midi or CV (bipolar tension)

TERMINAL CONNECTORS:
-Headphones
-2 mono ouputs
-2 mono inputs
-Midi IN / THRU
-GATE IN
-2 CV tension Input


rear

oscillators and filter

OSCILLATORSThe machine features 3 oscillators and a white noise generator :
-OSCILLATOR 1 is primarily an audio rate oscillator and without an external CV applied, it generates sine and sawtooth waves at frequencies from 1Hz to 10kHz and has a +-1 oct switch. Both waves are mixed before being routed to the patch matrix with an adjustable level for each wave. Furthermore, the sinewave has a manually adjustable waveshape.
-OSCILLATOR 2 is primarily an audio rate oscillator and without an external CV applied, it generates pulse and triangle waves at frequen-cies from 1Hz to 10kHz.
-OSCILLATOR 3 is functionally similar to Oscillator 2, but it’s primarily a low frequency oscillator that goes into audio range, and without an external CV applied, it generates pulse and triangle waves at frequencies from 0.05 Hz to 500 Hz

FILTER  resonant lowpass filter with auto-oscillation (for sinewave).
External sources can be injected into the machine.

PATCH MATRIX has 256 possible patch points, each with three levels of attenuation and has a memory of 254 patches.

OSCILLATOR

Syntrx Technical Data

Type: Analog monophonic
Case: Desktop
Controls: Knobs, Switches, Joy Stick, Modulation Pin Matrix
Year Released: 2019

  • 3 VCOs8 octaves Sine, Square, Triangle, White Noise
  • Octave switch for the VCO1
  • Sync option for the VCO2
  • Noise generator with “color” filter
  • Resonant VCF
  • Ring modulator
  • Spring reverb
  • ASR/AD looping envelope generator
  • Joystick controller
  • Input amplifier with adjustable gain
  • 3 VCAs
  • Sample & Hold circuit with an individual clock
  • Output signal filter
  • Mechanical CV/audio signal level indicator
  • MIDI In and MIDI Thru
  • Built-in speakers
  • Dimensions: 309mm x 457mm x 115mm (with the joystick in center position)
  • Weight: 4.05 kg


Syntrx

video demo
