Critter & Guitari Organelle

Pure Data Synthesizer (2016)

Pure Data Synthesizer

Overview

KEYBOARD Handheld device, sound generator and effects, reprogrammable with Pure data (visual multimedia programming environment) using already made patches that are very different from mellotron, to delay, looper, sequencer and much more! it's a box of tricks! The 25 wood buttons interacts with the loaded patch (by rear micro sd), very visual for instagram generation. It's basically a  computer based on a 1GHz ARM Cortex A9 with Linux onboard and an OLED display or connected to an HDMI screen.
In 2019 it has been updated with improved performance with "ORGANELLE M"

TERMINAL CONNECTORS:
-Audio Output Connections: 1/4" Phone Jack, 1/8" Phone Jack, Stereo Main, Stereo Headphone
-Inputs: 1/4" TRS stereo input
- Pedal Input
- MIDI Ports: USB
- HDMI digital out

REAR

(some) Factory patches

Analog Style classic sawtooth plus resonant filter patch. It features the usual controls: filter cutoff, resonance, and oscillator tuning, while the Aux button controls a note to internal sequencer.

Arpeggio Sampler a basic sampler with internal arpeggiator, pedal can be assigned to latch mode.

Apeggio synthesizer: same as above with mini synth.

Basic Poly Multi-waveform synthesizer: sine, square, saw, and triangle. The knobs control overall tuning, vibrato, and envelope.

Basic Sampler up to two seconds maximum, the keys  plays back the sound at different pitches. Use the knobs to adjust overall speed and to add an envelope to the sample

Quad Delay  uses four delay lines, each multiple or dividers of master tempo, control on feedback.

Sampler Style Each key plays a different assignable sample with  controls for: reverb, playback speed, and sample decay.

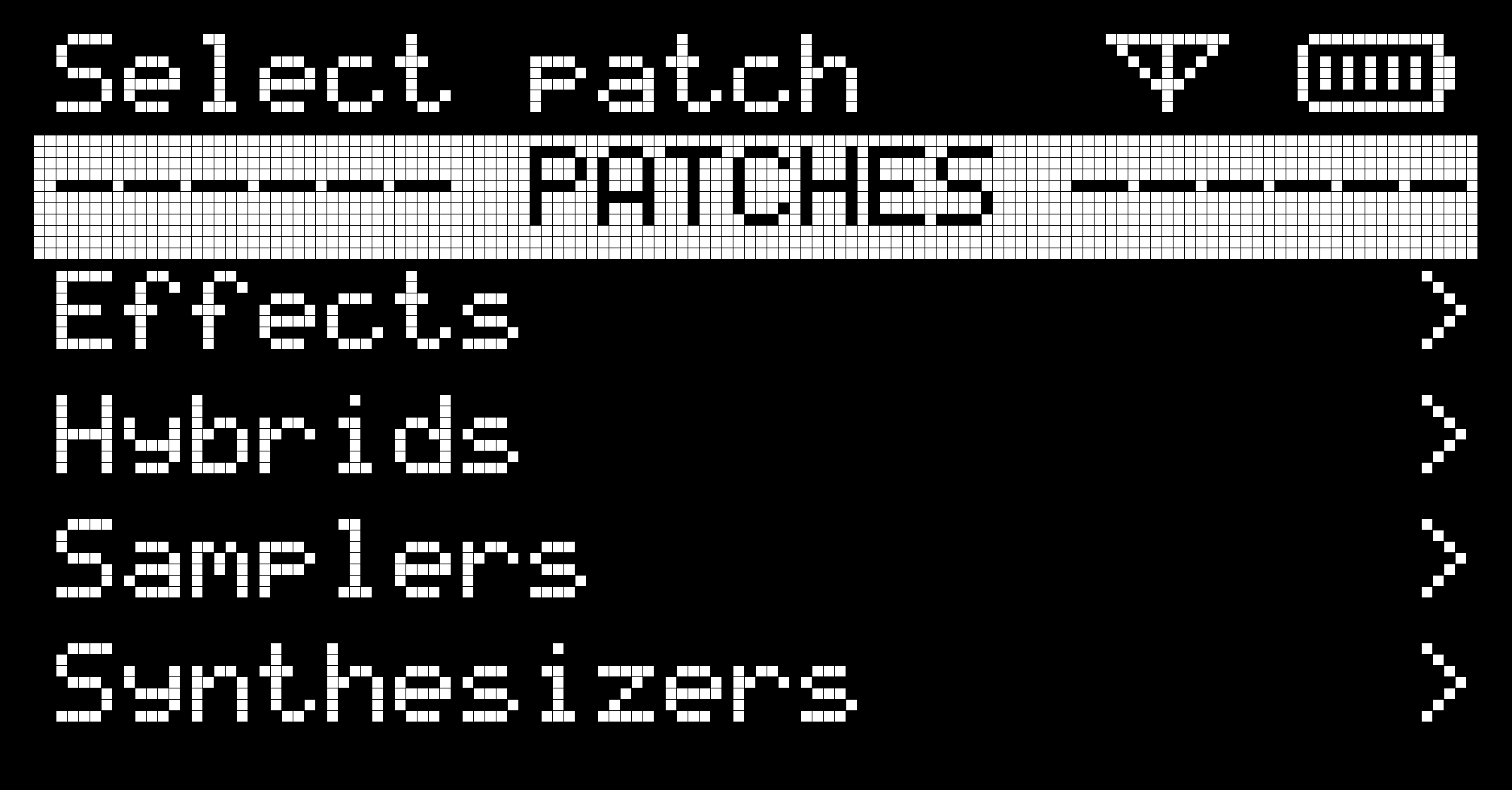

organelle display

Organelle Technical Data


Synthesis:
digital open souce
Case: handheld keyboard
Keyboard: 25 keys, Buttons, Wood
Year Released: 2016
Controls: Buttons, Knobs, Modulation - Audio Input, Pedal - Sustain
Display Type: LCD, LED, OLED, Backlit
Display Notes: HDMI output port
Sampling: 16 bit, 44.1 kHz

Oscillators: depends
Envelopes: depends
Filters: digital data depends
LFO:depends

MEMORY Size: 4GB internal storage
Storage: Internal, Micro SD, USB

Audio Output Connections: 1/4" Phone Jack, 1/8" Phone Jack, Stereo Main, Stereo Headphone
Audio Output Count: 4
Inputs: 1/4" TRS stereo input
MIDI Ports: USB

Dimensions (WxDxH): 10.5" x 3.25" x 2.125"
Weight: 1.45 lbs / 657g
Power: 9VDC, 1.0 Amp, Center-positive tip / Can be powered by four 'AA' Batteries (1.2-1.5V per cell)

Organelle

video demo
