Spectral Audio Syntrack (1997)
Analog Filter synthesizer

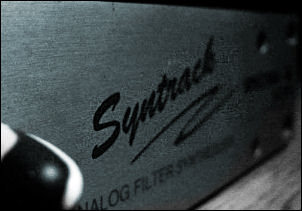

Hybrid Module synthesizer from Switzerland: digital short waves and analog filter.

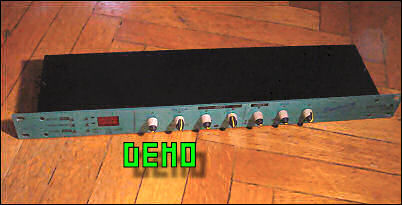

RACKMOUNT single unit rack.
The main panel features a basic segment display, 6 knobs (they do transmit Midi CC#) and 8 push buttons for edit.

Back panel terminal connectors:
- audio mono out
- audio line input for external filtering
- Midi interface.

Power supply is external 9V AC-AC.

VOICE main engine manages 1 voice of polyphony.

STRUCTURE: a Syntrack voice is composed by 1 digital oscillator based on a very short one-cycle waveforms.

WAVETABLE there are 100 wave just pure electronics, no acoustic.
The wavetable includes standard waves like square and saws and many computer-generated harmonics and precalculated FM.
TECH: internal ROM can be upgraded with an optional chip giving an extra 100 PCM, but today it is quite impossible to find it out.

0	Sawtooth	18-21	Organ
1	Square	22-28	Synth
2	Pulse 1	29+30	Synth Bell
3	Pulse 2	31-55	Synth
4	2. Harmonic	56-61	Organ
5	3. Harmonic	62+63	Synth
6	4. Harmonic	64-68	Synth Highpass
7	Triangle	69-74	Synth
8	Sawtooth+Square	75+76	Organ
9	Sync Square	77-82	Synth
10	Sync Sawtooth	83+84	Organ
11	Synth High pass	85-98	Synth
12-17	Synth



FILTER analog resonant 4-poles VCF range is from 20 up to 20.000 Hz.
TIP: the VCF can filter external audio sources.



ENVELOPE a single 2-segments RELEASE/DECAY EG for the amplitude VCA.







LFO a single modulator accessible only by display which modulates OSC pitch - relative frequency rate can be synched to external Midi clock at various rate dividers.

EFFECTS analog distortion-saturation for very aggressive basslines but it emphasizes click-glitches noises.



MIDI every parameter is assigned to a Midi Control Change.
TECH: bulk Sysex dump is very simple and effective.

MEMORY:
- 100 RAM slots for sounds
Non-expandable RAM no external media, DUMP saving by MIDI SYSEX.



RELATED FAMILY not really related, but some other interesting products from Spectral Audio and a similar DIY synth: the shruthi.

	Protone: analog monophonic VIDEO
	Neptune (mk1 + mk2): analog monophonicVIDEO
	Mutable Shruthi box: DIY wavetable voice with analog filter. VIDEO



AUDIO DEMO

wavetable cycling Spectral audio demo1 Spectral audio demo2

YOUTUBE VIDEO CLIP SELECTION preset sounds demo
