Hohner Bass 3 (197x)

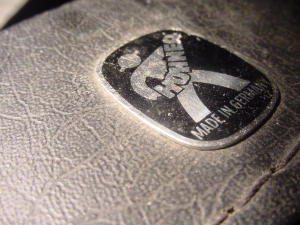

Suitcase monophonic bass transitors synthesizer made in Germany- compact keyboard based on 3 presets with no possible edit.
Hohner is a society born in 1857 still in business, mostly famous for Accordions and harmonicas, not to mention the funky god keyboard Clavinet D6.

Note: this unit has been sold a long time ago, information may be now incomplete. If you want to add something about it, demos or else- get in touch.

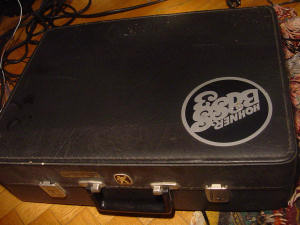

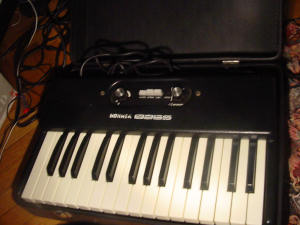

KEYBOARD keyboard in black-leatherette suitcase with 30 keys, it originally came with a little stand for performance play.

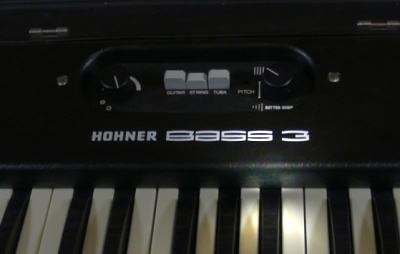

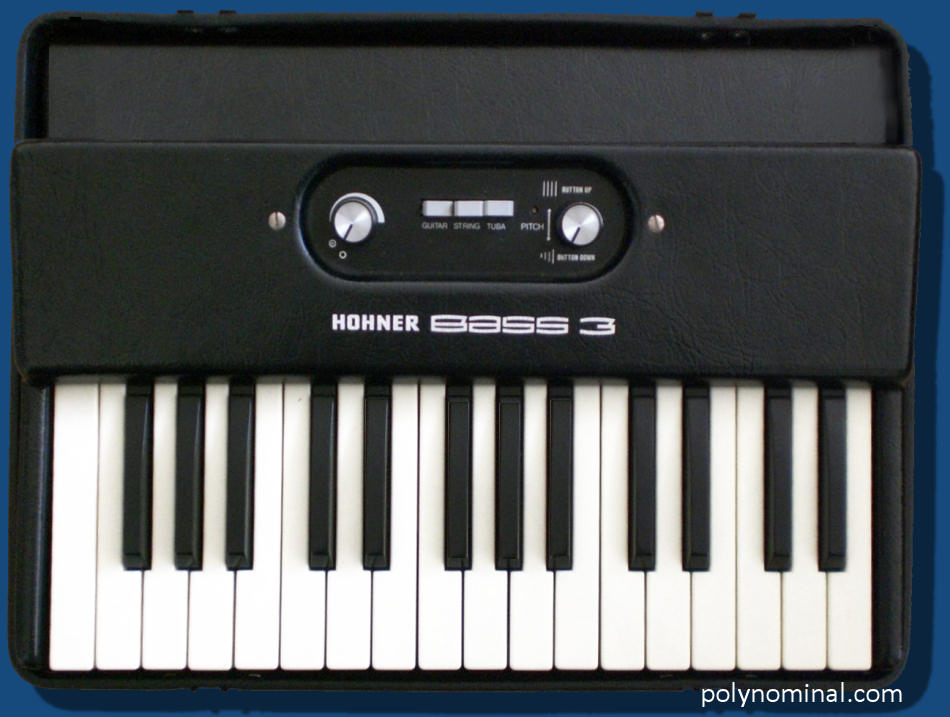

The mainboard features:
- 3 push button
- 2 knobs
- 1 trimmer for master tuning

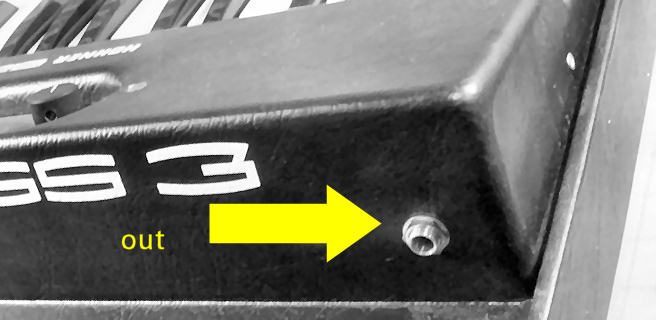

Back panel terminal connectors:

- main signal out



VOICE single oscillator structure based on MM74C14N which generates squared waveforms.
The Hohber Bass 3 generates 3 presets with very limited edit:

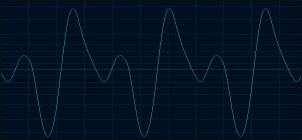

- guitar - string - tuba HEAR waveforms

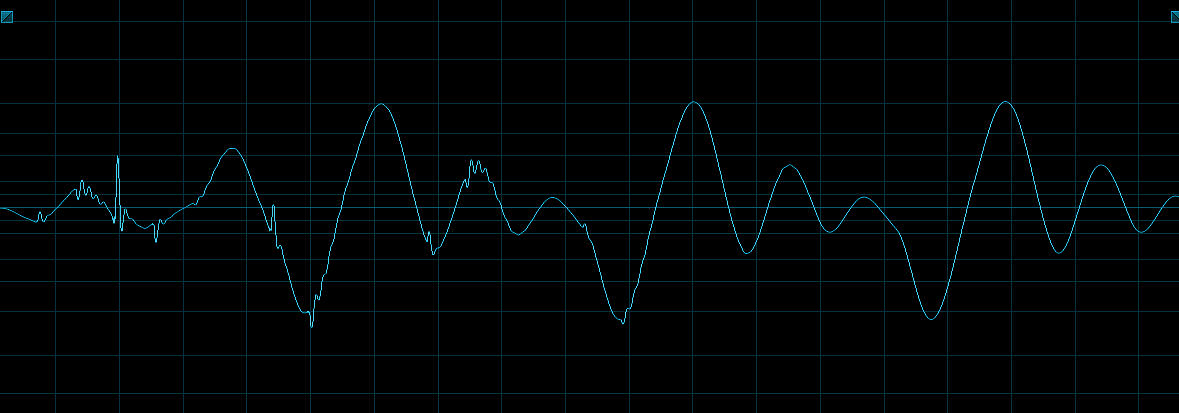

<- All presets sound quite similar but the attack which is more sharped on guitar preset, tuba is more square-shapped sound with overtones.

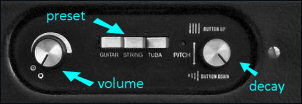

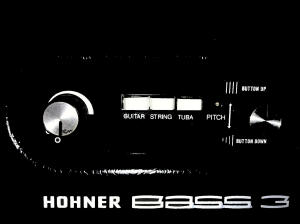

FUNCTION the left knobs is the main volume while the right one is a kind of envelope decay from shorter to longer for more sustain.

RELATED FAMILY:

	Hohner Bass 2
	Hohner Bass 1 also labeled "Basset"





VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

"BASS 3"

Commercial Reaktor samples



VIDEO SELECTION demo1 audio 2 another demo
