Cacophonator
Electronic DIY (2006)

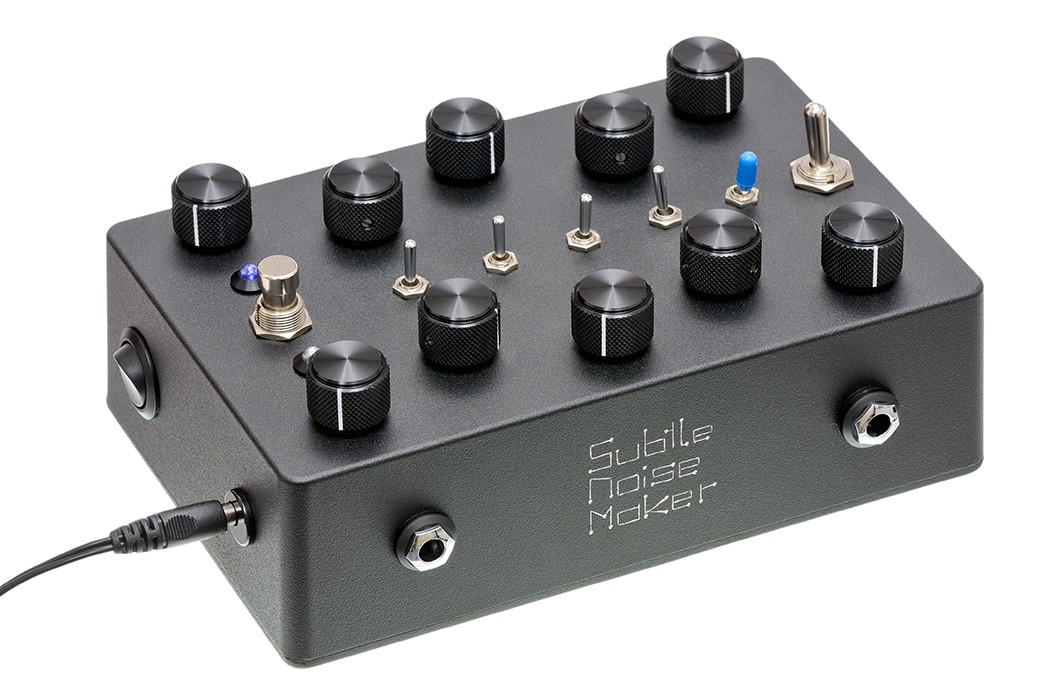

PopularDIY originally based on a single IC 40106 the first project was projected by Arthur Harrison and Kevin Buckhold. Note that a commercial version was realesed by SubtleNoiseMaker (PIC)

NOTE: the name "cacophonator" is a mix between "cacophony" and oscillator.

DIY layout depends on what you want to build: plastic box, tin can, wood case or other recycled stuff... it is up to you! this one was very very cheap and does not implement advanced functions.

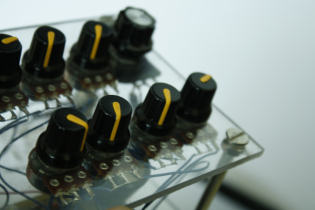

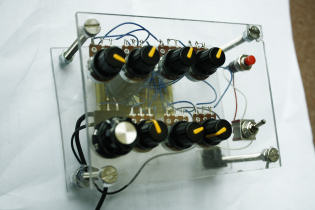

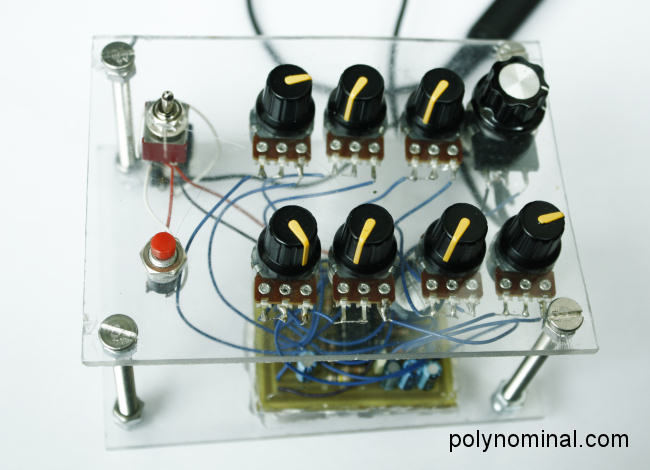

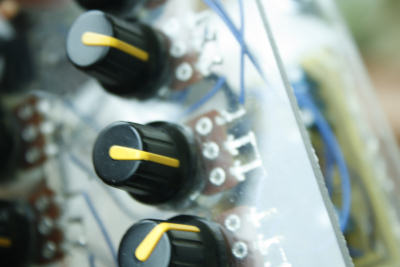

Main panel features 6 knobs + 1 volume pot, 1 lever switches for drone sustain modeor push button for manual triggering.
Back panel terminal connectors:
- mono output



Power supply just plug an external PSU or batteries.

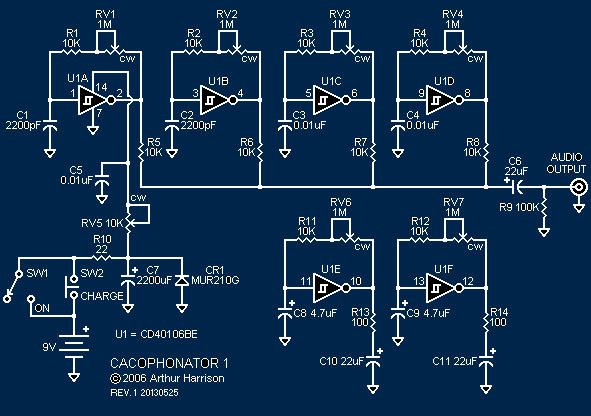

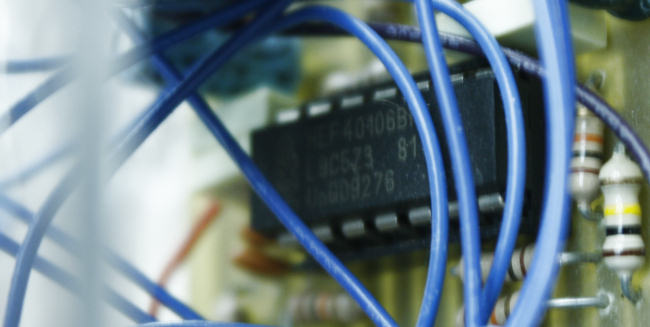

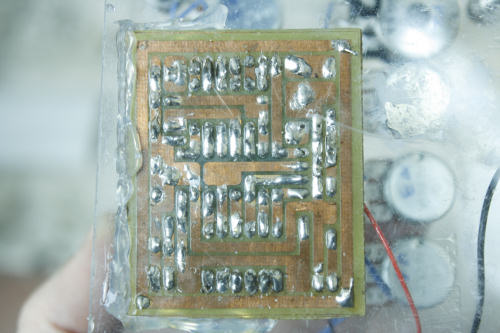

VOICE this noisebox uses a IC 40106 hex schmitt trigger and it generates 6 identical oscillators with individual pitch frequencies and a non periodic modulator LFO. It works like a source of random noises quite unpredictable but soon boring.



AUDIO DEMO

demo 1 demo 2

demo 3 demo4



Soundcloud ATARI PUNK CONSOLE



YOUTUBE VIDEO CLIP SELECTION video1 video2 video3
