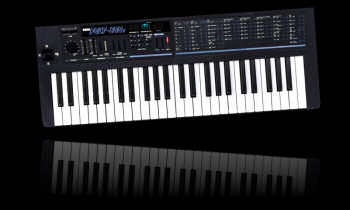

Korg Poly-800 II Mk2 (1985)
(also known as mk2)



Updated version of the classic poly-synthesizer Poly-800 with some new features and a better Midi management.

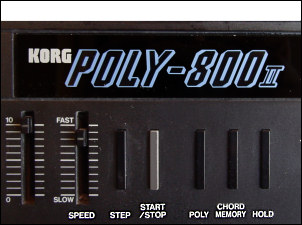

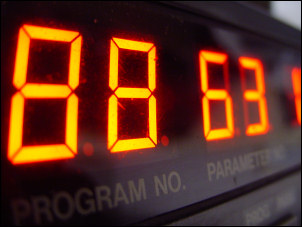

poly800 II display
DCO Editing parameters

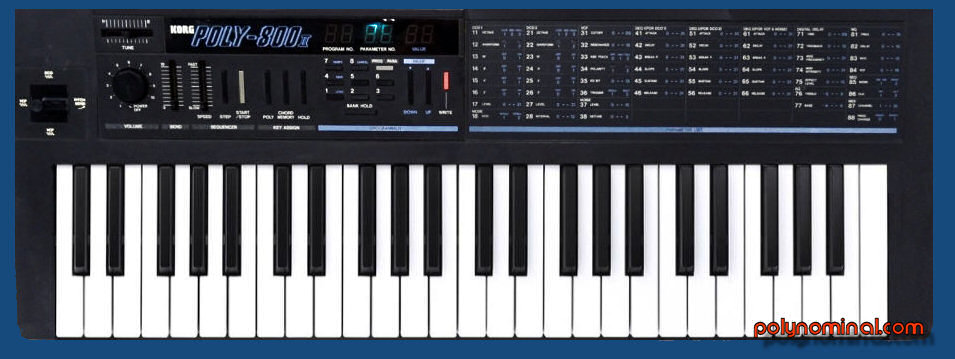

info KEYBOARD 49 keys.

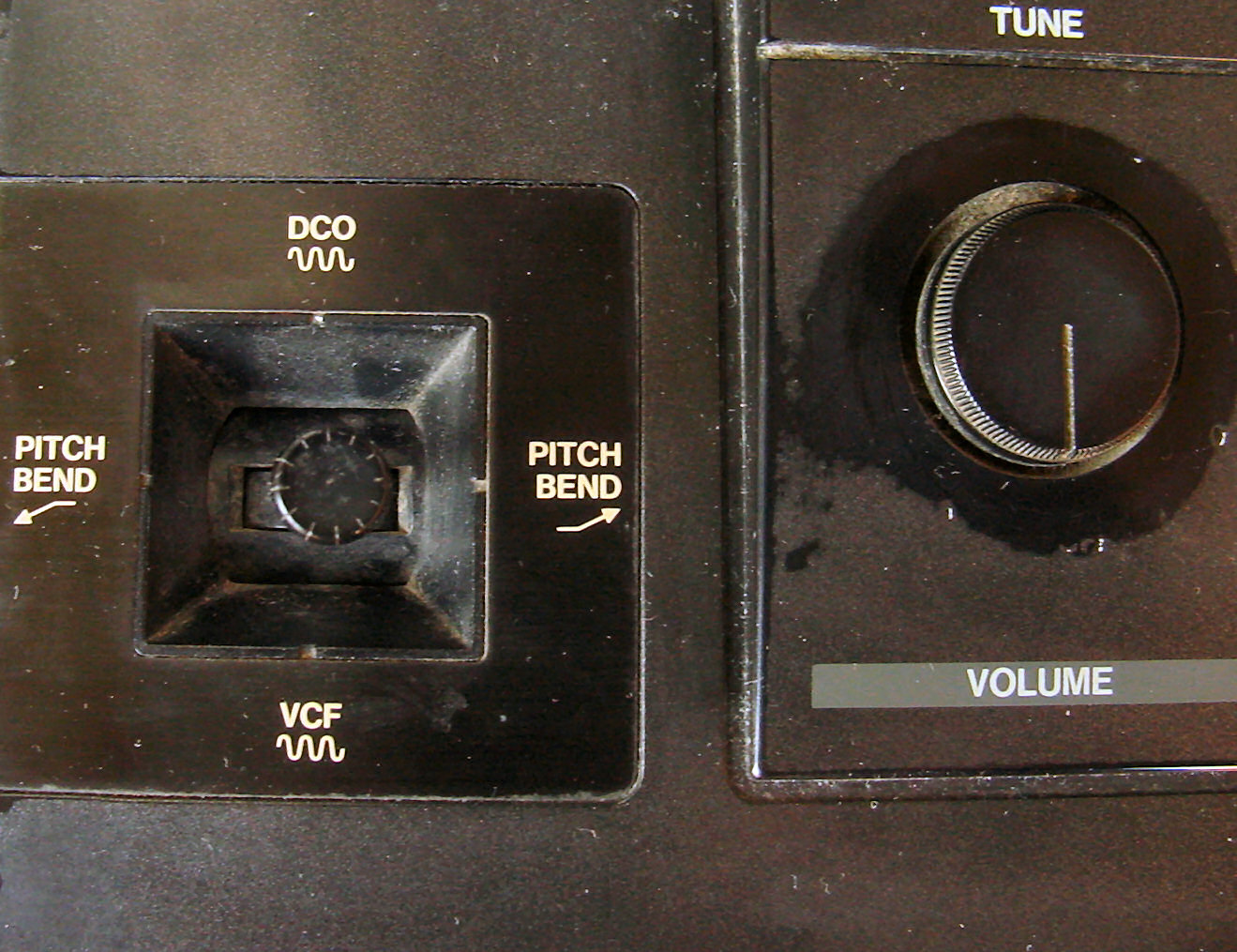

Main panel features a segments display, 3 sliders, 19 buttons, 1 data slider and a pitchbender.

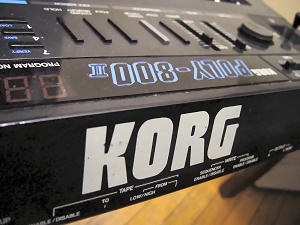

Back panel terminal connectors:
- Midi Interface (no Thru)
- main signal out
- headphones out
- tape interface
- switch tab memory protection
- pedalswitch input for program up.


ac Power supply is external PSU with 9V AC/DC -)+ polarity.

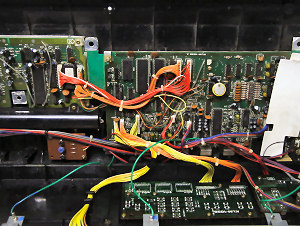

edit TECH main unit is a 8 bits controller CPU Intel 8085 family.
Music oscillator DCO is based on a OKI MS-M5232 chip, best known as implemented on some early '80 arcade games (now emulated by famous MAME emulator).

DCO Editing parameters The OKI generates 8 DCO digitally controlled oscillators assignable in 2 different manners:

- double mode: 2 x 4 voices for a thicker richer sound2
- whole mode: 1 x 8 voices for full polyphony.




DCO DCO
an oscillator features 2 summable waveforms sawtooth and square + 4 additive harmonic octaves heights at 16' 8' 4' 2' + 1 white noice generator.

waveforms demo Hear OKI square wave

demo Hear OKI sawtooth wave




adsr ENVELOPE
there are 3 EGs with ADBSSR segments, wich stands for: Attack, Decay, Break point, Slope, Sustain and Release.

waveforms - 1 DCO1 amplitude: 6-stages ADBSSR
- 1 DCO2 amplitude: 6-stages ADBSSR
- 1 VCF: 6-stages ADBSSR




lfo LFO 2 delayed triangle-shapped modulators triggered by joystick control.

waveforms - MG LFO 1 modulates FILTER VCF
- MG LFO 2 2 modulates DCO pitch.




filter FILTER
a limited paraphonic filter based on a single NJM2069:

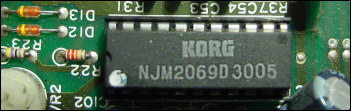

NJM2069

The chip is a resonant (but not up to self-resonance) bipolar analog 4 poles lowpass with cutoff and contour.

- click to enlarge pic -






edit SEQUENCER
a very basic 256 steps sequencer syncable to external Midi clock.


steps



fx EFFECT

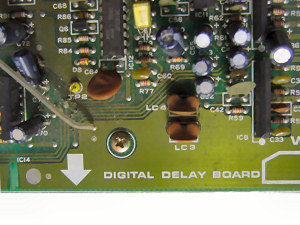

famous chorus from original Poly-800 has been replaced by a 1024 ms digital delay at 12 bits resolution with some edit parameters such as wet balancing, time, feedback and a final 2-bands EQ.




memroy
MEMORY:
- 64 RAM patches
- NO ROM memory.

battery

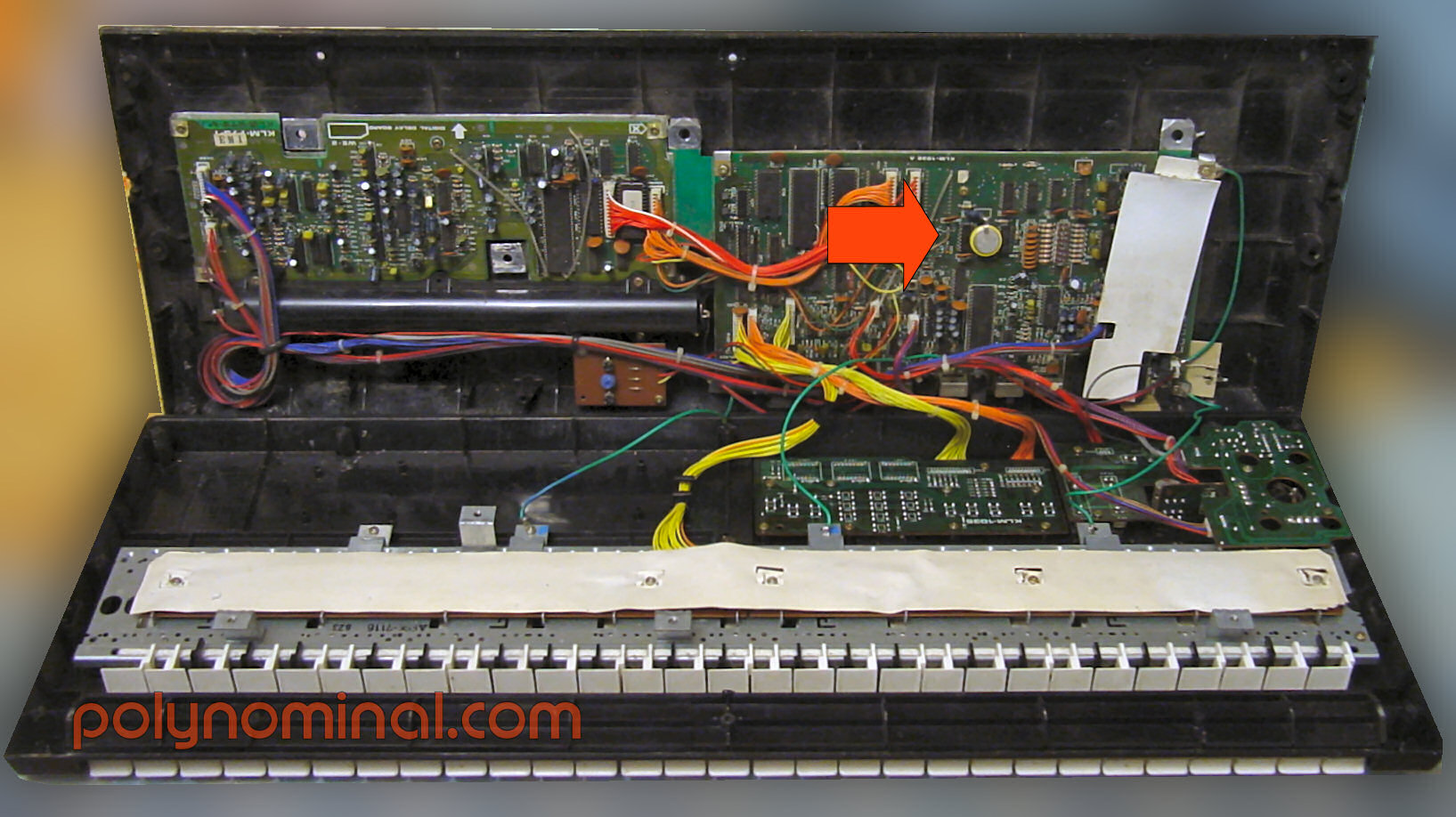

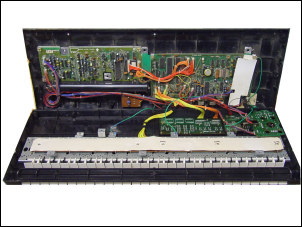

-LEFT - RAM system based on a CR-2032 battery, replacement needs soldering skills



- Click to enlarge picture -





lfo EDITOR some computer-based editors for the Poly 800 II and Ex-800:
- Midiquest (PC/MAC, comercial).


battery





effet VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

EFM Oddse Poly-850
then X-POLY

VST
commercial

poly 800 plugin

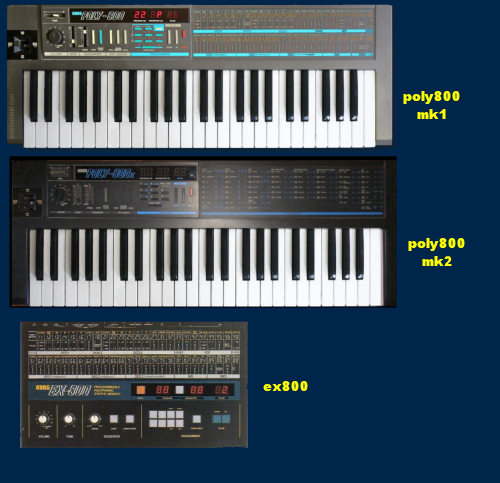

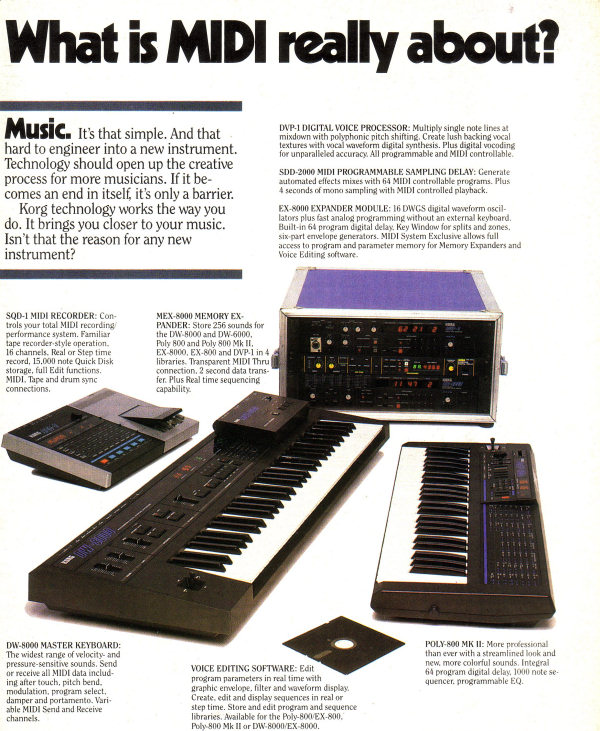

family RELATED FAMILY:

POLY800

Poly-800 first version, It is quite the same it but features a Chorus board instead of digital delay. Memory backup system is older with no CR-2032 battery and no Sysex handling.

korg ex800 EX-800 module enhanced version of poly800 mk1 with Midi thru, Midi sysex.
korg ex800 MEX-8000 memory expansion adds 4 extra banks.
