VOICE

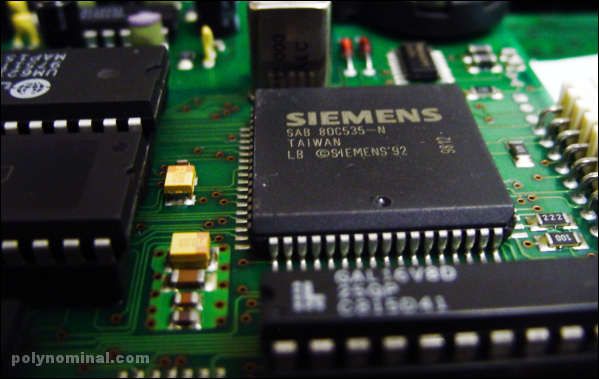

Siemens SAB80C535 with physical-modeling DSP
core generates 12
voices polyphony at 20
bit resolution.
|
VIRUS A: the synthesis is a mix of virtual
analog modeling and short PCM waveforms -
these are the Harmonic Waveshapes.
HEAR all waveforms
|

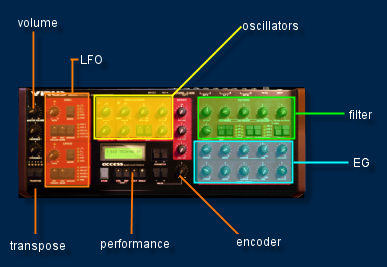

STRUCTURE
A VIRUS voice is composed by 2 oscillators +
1 sub-oscillator + 1 noise source.
|
OSC1 |
OSC1 |
SUB
|
Modeling
waveforms |
sin / tri |
sin / tri |
sqr / tri |
Pulse width |
yes |
yes |
- |
Smooth shaper |
yes |
yes |
- |
PCM waveshapes |
64 |
64 |
- |
Volume |
bal osc1/2 |
bal osc1/2 |
yes |
Pitch tuning |
yes |
yes |
- |
Wave sync |
- |
1>2 |
- |
FM |
- |
1>2 |
- |
|
|
|
PERFORMANCE
system handles 16 multitimbric parts with individual
settings:
- velocity assign to FM, pan, shape and
width
- variable portamento time
- 4 mono playmodes
- 2 voices stack (with detune)
- Midi channel assign
- key zone assign
- note transpose
- pitch detune
- assign analog out / volume
- note priority
- FX amount
unison mode
|
|
FILTER
2 filters (-12 dB each) can be combined in 2
serial, 1 parallel or directly set to independent mode.
Both filters feature 4 different models:
|
- lowpass
- highpass
- bandpass
-
bandstop
In addition a special Keyfollower
option plus a filter saturation which
basically emulates a vacuum tube distortion.
filter test
|
ENVELOPE 2 EGs:
|
- EG1 AMP: 4
segments + 1 time
- EG2 filter: 4 segments + 1 time with possible
EG inversion. |
LFO
up to 3 delayed modulators:
all LFO |
LFO
1 |
LFO
2 |
LFO
3 |
Shape: |
sin / tri /saw / sqr /
S&H / sample & glide |
sin / tri /saw / sqr /
S&H / sample & glide |
sin / tri /saw / sqr /
S&H / sample & glide |
EG mode: |
yes |
yes |
no |
Symmetry: |
yes |
yes |
no |
Destinations: |
pitch / width /
resonance / filter gain |
osc shape/ Fm amount /
cutoff / pan |
pitch /width |
|
MATRIX
like a modular, the Virus handles 3 internal routings or
virtual patchcords that connect a modulation
source to a destination:
Sources: |
Destinations |
bender
mod wheel
breath
MIDI cc#
expression
balance
data slider
hold pedal
sustain pedal
portamento pedal
|
volume
transpose
osc shape
width
pcm
cutoff
detune
ADSR
LFO rate, symmetry
effects control
|
|
|
EFFECTS
there are 2 digital FX onboard:
- delay: with rate, time, modulation LFO and feedback.
- chorus: with rate, depth, delay, feedback and LFO
shape HEAR
chorus
ARPEGGIATOR
simple function with latch and 4 directions: up
/ down / up-downd / as played. Virus arpeggiator and
LFO1-LFO2 can be sync internally from 63 to 190 BPM (there
are 17 time dividers) or slaved to external
Midi clockHEAR arpeggiator
MIDI
full Control Change implementation + full exclusive
systems
TIP: there are 2 freely assignable knobs to any Midi
CC#.
MEMORY
CMOS ram UM621024C:
- 256 RAM single
- 128 RAM multi.
|
-

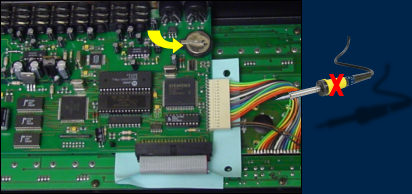

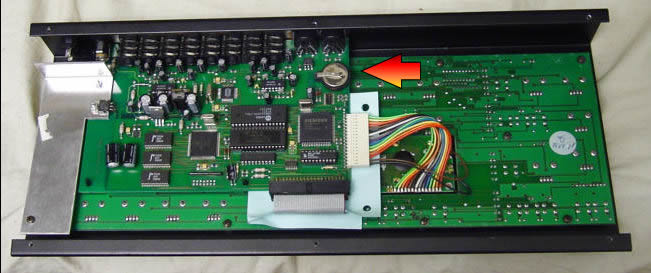

LEFT Battery replacement-
Memory works with a lithium 3V battery in a
dedicated holder
- click to enlarge picture -
|

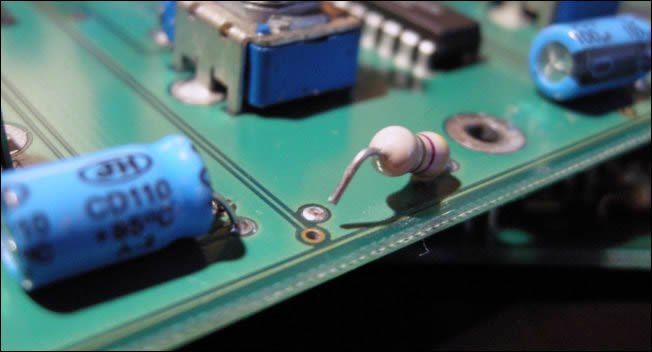

REPAIR
/ MAINTENANCE my model always had trouble
with random values, finally found out a non-soldered
resistance (from factory?) probably I had bad
luck, now it is perfect (check out pic).
|
LEFT - WHAT THE HEELLL!!!!
(thanks to TOPOPICCIONE for great pic ;)
- click to enlarge picture -
|
