Korg MS-02
Cv/trigger interface (197x)



Analog synth interface converts synthesizers tension controls between Hz/V and 1 V/Oct and vice versa.

The Korg Interface MS-02 is designed for the purpose of connecting Korg MS-Series synthesizers with other synthesizers available throughout the world. This sophisticated signal processor greatly enhances the performance possibilities of the MS-Series.

interface
interface



info INTERFACE converter
small black black box with MS series design.

The main panel features 6 knobs and 2 switches.

Front panel terminal connectors:

- 22 jack inputs for modular patching
- 6 knobs
- 2 function switches
- power on/off switch






cv CV FOREWORD
before the Midi system, analog ynthesizers and other musical gears could played be externally played or sequenced by an analog control system: the Control Voltage with a trigger.
The CV/Gate combo is basically composed by 2 tensions that controls

cv gate - oscillator pitch

- the envelope trigger




cv
CV STANDARDS there are 2 main CV standards with different scale values:

hzv - 1 V / Oct. linear tension and is used by Roland, Sequential Circuits (e.g Sequential Pro1) , Arp (e.g Arp Odyssey), Oberheim and Moog (e.g Minimoog)

- Hz/ V logarithmic and used by most of Korg machines (e.g MS-20) and Yamaha (e.g cs-15)




tip
CONVERTER the Hz / V system is technically more precise but defintively less common than 1V/Oct, so for for linking different systems a converter is needed - the MS-02 just does that job.

log amp log amp





edit FUNCTIONS the Ms02 handles 4 main functions:

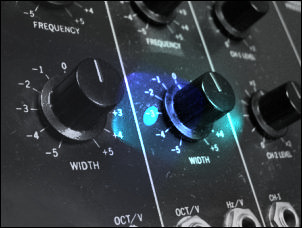

- LOG AMP changes Hz/Volt tension to 1V/Oct - you have to plug the signal to IN, calibrate the Lowest pitch with FREQUENCY and higher with WIDTH so both scales are matched.
- ANTILOG AMP exactly the LOG AMP contrary.

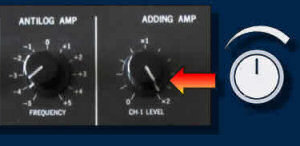

- ADDING AMP 2 channels +/-5 V can be added to incoming tensions.
- TRIGGER PROCESSOR 2 inverts the signal polarity that trigger the EG. If the controlled synth plays at note release, then use this polarity inverter.
volt




edit
FAMILY RELATED:

foot controller

PEDALS for MS series:
MS-01
: simple voltage controller with lag
VIDEO
MS-04: like MS-01 but with more functions and modulation LFO

ms interface

INTERFACES for MS series:
MS-03: external signal processor

Korg Ms10

Synth:
-MS-10 -
1 VCO synth
-MS-20 - 2 VCOs synth MINI MS20 a 2013 remake
-MS50 basically a Ms10 with open structure
-SQ10 dedicated MS sequencer: 3 X 12 steps.

VC-10

VC-10 a vocoder with some CV interaction with MS family- Sounds like a big juicy frog!



video VIDEO SELECTION

demo of my Korg MS02
conversion interface test


back



Company: Korg
Model: MS-02
Class: Synth Interface
Technology: analog
Display: none
Dates: 197x
Price: 300€
CV1: 1V/oct
CV2: Hz/ V
Trigger: bipolar
Midi: none



manual
MANUAL

schematics
SERVICE MANUAL (schematics)



original scan

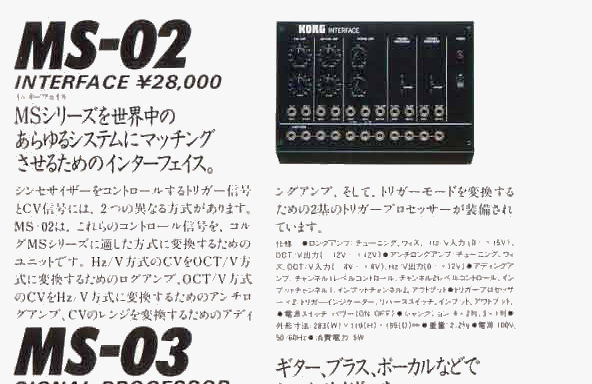

edit orignal brochure



original scan
edit original advert



original scan
edit orignal brochure



original scan
edit orignal brochure

Korg MS-02 FOR SALE

ELKA OMB5 for sale

CHECK OUT EBAY OFFERS





back fronta serial
