Amdek Flk-100
Flanger (197?)

A not well-known pedal from the end of seventies from an early Roland and Boss division AMDEK.



PEDAL The main panel features 4 knobs for sound edit.

Back panel terminal connectors:
- audio input
- audio ouput


Powers supply 9V battery or external power supply 9V DC- 1.5mm jack

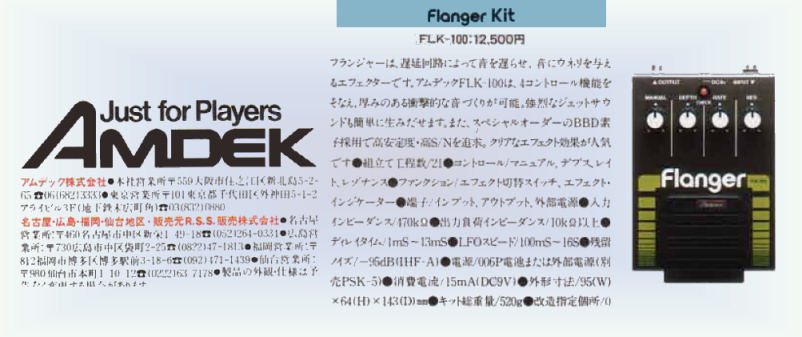

KIT Amdek was famous to be sold in KIT DIY, in other words: you have to assembly it yourself, so maybe when buying an FLK be sure a serious technician made the job.

SOUND circuit based on delay line Buck.et brigade from PANASONIC model MN 3102 and MN 3207 (time range from 2.56 to 51.ms) chips.

PARAMETERS 4 MAIN knobs functions:
1- MANUAL controls the center amount of shift.
2- DEPTH intensity of the flanger effect
3- RATE frequency of the LFO modulation for slow or fast effect - range speed from 100 ms to 16s.
4- RES filter resonance Q brilliance for PEAK effect



AUDIO DEMO

guitar demo1 guitar demo 2 synth demo

YOUTUBE VIDEO CLIP SELECTION video1
