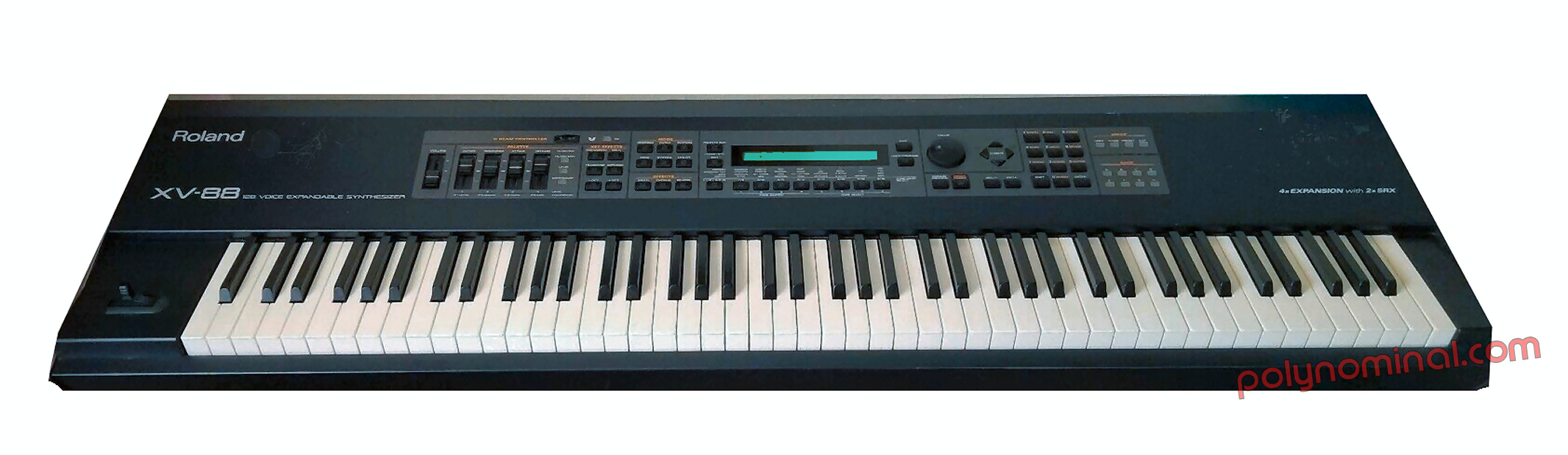

Roland XV-88

128 Voice keyboard (2000)

88-note precision hammer-action keyboard based on Xv-3080 module synthesis

Overview

OVERVIEW full 88-key piano keyboard utilizing a hammer action system for rexpressiveness, with aftertouch provided as well. t with a tiny 40 x 2 character backlit LCD , main data encoder, pitchbender and famous DBEAM controller (from mc-505) and smart media card reader.

Terminal connectors (from left)

- smart media car reader
- midi interface
- computer interface (requires old drivers in serial protocol)
- 3 pedals input
- 2 main outs + 2 aux
- headphones out

Sound

OSCILLATORS the XV-88 is a 16-part multitimbral keyboard synthesizer (compatible to GM GS Midi protocol, GM Level 2 system Compatibl) that produces up to 128 simultaneous polyphonic voices.The internal 64 mb rom contains 1083 waveforms at 44.1kHz , including 112 from famous JD-990 PCM + derived from jv2080.

EXPANSION XV-88 PCM and patchmemory can be also expanded using internal slots (just unscrew top cover)
- up to two Wave Expansion Boards (SRX Series)
- up to four Wave Expansion Boards (SR-JV Series)

Effect and memory

EFFECTS The reverb, the XV-88 ’s most central effect, incorporates the classic SRV-3030 DSP.
63 types of multi-effects, 4 types of reverb, 2 types of chorus

Arpeggiator: 45 styles

MEMORY
Preset Patches: 1024

Preset Performances: 64

Preset Drum Kits: 16
