Roland CR-1000 (1986)
Digital Drummer



A kind of preset version of classic drum machine TR-505 with same samples soundset but inexplicably lacking the great sequencer.

Part of the famous CR - computer rhythm - series started with the famous analog CR78.

DRUM MACHINE main panel features a 7 segment LED display, a rotary selector, 9 knobs and 23 push buttons.

Rear panel terminal connectors:
- main mono signal out
- Midi input
- Midi Thru (no out)
- pedalswitch input start / stop
- pedalswitch input fill-in
- pedalswitch input restart

Power supply is a 9V external PSU DC -)+ negative center.





TECH the internal CPU is based on a HD6301 family (HD6301Y033P) manages up to 8 voices polyphony based on PCM samples.



PCM drum machine synthesis in based on PCM samples playback.
Internal (non-expandable) PCM are read from a single 128 kb ROM (at IC12) which contains 16 non-editable percussive sounds recorded at 8 bits /25 kHz rate

Sound list: kick, snare, rimshot, clap, tom (x3), timbale, hh (open/close), crash, cymbal, tambourine, claves and conga (x2). HEAR all PCM

RHYTHM SEQUENCER the internal ROM memory contains 24 preset that cannot be altered but some user-variations that can be manually set:
- shuffle groove amount
- accent button
- intro/ending
- fill-in
- rhythm variation
- accent level
- clap variation.

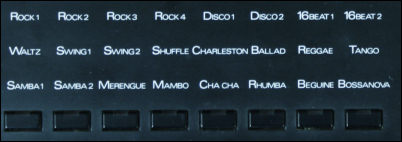

Preset list: rock (x4) disco (x2), 16 beat (x2), swing (x2), shuffle, ballad , reggae, tango, samba (x2), merengue, mambo, chacha, rumba, beguine and bossanova. HEAR samba 1 & 2 pattern

SYNC internal tempo range from 40 to 240 BPM or tempo-slaved to external Midi clock.



MIDI the CR percussions can be triggered using MIDI but it only responds to note ON/OFF no other controls or CC.



MEMORY
- 24 ROM presets.

-LEFT - Battery replacement: 3V Cr2032 soldered to mainboard although there's is not much data to save since it is a preset machine... maybe Midi channel setting? Probably you won't even notice battery is dead. - Click to Enlarge Pic -



MAINTENANCE and MODIFICATION pretty solid machine but common tact switch that need replacement.

BENDING - CR1000 - can be also easily Circuit bent... as I did   HEAR circuit bending demo

AUDIO DEMO

	some preset rhythms p1
	some preset rhythms p2
	shuffle range
	accent range

VIDEO SELECTION   Demo circuit bend
