Korg DRM-1







Korg DRM-1

info Country: Japan
Weight:4,3 kg
Dimensions: 482 (w) x 315 (d) x 44 (h)
audio demo trend price : 80€
manual demo video comments

Korg DRM-1 (1987)
Digital Rhythm Module



Rackmount brain module dedicated to drum expansion.

The 12 bits samples engine is similar to the drum machine series model DDD-1 and DDD-5.

tech
edit


info RACKMOUNT
1 rack unit.
Main panel features a 2 x 16 lines LCD display a a volume knob- note that * the unit can be edited only using the IR remote control DRM-1R * which features 40 rubber buttons.

Back panel terminal connectors:
- Midi interface
- displat contrast knob
- 2 assignable footswitch inputs
- 1 expression pedal (for values)
- 2 main signal out
- 8 trigger inputs
- 8 individual out
- 4 card slots (3 rom + 1 rom/ram)




edit TECH system based on NEC 8 bits CPU is able to manage 8 voices.
Each voice is composed by 1 digital oscillators PCM sample with variable parameters:

DWGS

- volume gain
- panning position
- pitch tune
- mono o polymode
- start phase adjust (mainly for cymbal flanging effect)



edit WAVETABLE internal ROM contains 23 PCM samples onboard recorded at 12 bits, these sounds are mainly classic acoustic percussion.

edit

DRM1 sound list:

kick (x4) , snare (x4), hihat (x2), ride, crash, handclaps, tom (x3) , conga (x3) and timbale (x2)




editEXPANSION
the wavetable can be expanded using PCM cards memory card ROM also compatible with other DDD model.
There are about 45 official Korg cards around plus third-part:

DDC-A01 Rock 1
DDC-A02 Rock 2
DDC-A03 Jazz 1
DDC-A04 Fusion 1*
DDC-A05 E Drums 1
DDC-A06 E Drums 2
DDC-A07 Brushing 1*
DDC-A08 Gate Reverb 1
DDC-A09 Gate Reverb 2
DDC-A10 Gate Reverb 3
DDC-A11 Gate Reverb 4 Electronic
DDC-A12 Rock 3 / Ambience
DDC-A13 Rock 4 / Hydraultic
DDC-A14 Fusion 2 Fiberskin
DDC-A15 E Drums 3
DDC-A16 Rhythm Box
DDC-B01 Latin 1
DDC-B02 Latin 2
DDC-B03 Latin 3
DDC-B04 Latin 4
DDC-B05 Latin 5
DDC-B06 Japanese 1
DDC-B07 India 1
DDC-B08 Gate Percussion
DDC-B09 African 1
DDC-B10 Gamelan
DDC-C01 Orchestra 1
DDC-C02 Variation 1*
DDC-C03 Orchestra 2
DDC-C04 Variation 2
DDC-C05 Variation 3 (Bass)
DDC-C06 Reverse 1
DDC-C07 Finger Snaps
DDC-C09 Variation 4
DDC-D01 Cymbal 1*
DDC-D02 Cymbal 2
DDC-D03 Cymbal 3
DDC-D04 China Cymbal
DDC-D05 Cymbal 4
DDC-E01 Timbales 1
DDC-E02 Bass Drum 1
DDC-E03 Snare Drum 1
DDC-E04 Snare Drum 2
DDC-E05 Sound Effect
DDC-E06 Tom 1
DDC-E07 Bass Drum 2

manual

PCM MEMORY CARD FOR SALE

for DDD5/DDD5/DRM1

-> actually on EBAY
Korg DDD- 1/5/drm PCM variation1 ddc c02 INFO
Korg DDD - 1/5/drm PCM fusion 1 ddc a04 INFO
Korg DDD- 1/5/drm PCM brushing 1 ddc a07 INFO
Korg DDD- 1/5/drm PCM cymbal 1 ddc d01 INFO




edit
ENVELOPE only the sample decay can be set for each percussion.

decay demo Hear decay crash




edit

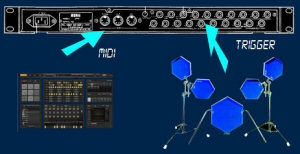

PERFORMANCE basically the DRM-1 can be played in 3 ways:

trigger in - Midi interface with velocities (e.g keyboard, drum machines):

- Trigger interface (hook up to electronic drum pad ) up to 8 sound samples can be assigned to an invidual out and trigger input with adjustable pad sensibility. The incoming trigger signal are converted to Midi out data.

- Sequencer (described below)





edit
SEQUENCER patterns can be recorded in real-time mode with some features e.g : punch in/out options, overdub, loop mode, metronome, tempo change and quantisize (up to 1/48 resolution maximum).

sequencer SYNC internal tempo (from 40 to 250 BPM) can be set by TAP tempo or synched to external Midi clock.
demo Hear synched sequencer




edit MEMORY:
- 16 settings
- 16 songs
- 4400 notes.
The Recorded sequences can be stored either to to magnetic tapes Midi exclusives or to a RAM card model MCR-02 (128kb) also compatible with MCR-03 (256kb) also used by workstation synthesizer Korg M1.

battery replacement


- LEFT - Battery Replacement memory system works with a 3V CR-2032 soldered to the lowest board (it is hidden) a bit of skill is required

- CLICK TO ENLARGE PICTURE -




edit RELATED FAMILY:

KORG DDD-1

KORG ddd5

DDD-1 flagship D

DDD-5 the DDD1 budget





demo AUDIO DEMO

demo drum session
demo session DRM1 + korg DW-8000 synth
demo Session DRM1 + chroma polaris





Company: Korg
Model: DRM-1
Class: drum brain
Display: 16 x 2 lines LCD
Rack: 1 standard unit
Dates: 1987
Synthesis: PCM rompler
N. Samples: 32 PCM
Sample Resolution: 12 bits
Polyphony: 8 voices
Sequencer: 4400 notes
Resolution: 1/48 PPQ
SYNC: Midi Clock
Envelope: 1 EG
Effect: phase adjust
LFO: none
Filter: none
Trigger: 8 analog inputs
Memory: 16 setups
Midi: IN / OUT /THRU
Demo: 3





manual
MANUAL



FACTORY RESET PROCEDURE / TEST MODE

edit

NO INFO, sorry!



manual
-DRM1 SERVICE MANUAL
-SYSEX factory





brochure
editadvert

brochure
editadvert




Korg DRM-1 FOR SALE

Korg DRM-1 FOR SALE
CHECK OUT EBAY OFFERS





motherboard logo eh0400 circuit
awardSPECIAL AWARDS:

solid
solid
PCM obsolete Nervous edit

comment

REVIEW "The DRM1 is a pain to use on this tiny panel, but once set it can be fun playing with triggers and old' 80 punchy sounds- Just be sure to get the remote controller or you will not be able to properely use/edit the unit."

manual manual
-cheap - needs remote
-Midi and trigger
- edit interface

"The DRM-1 digital rhythm module incorporated advanced sound generation capabilities in a compact body which fits a 1 unit rack. It comes with a wireless controller that allows the remote player to control most of the functions, a feature which is very handy for a drummer playing a series of digital drum pads." MANUAL
