Jomox MBase 11
Analog Bass Drum Module (2009)



A revamp from previous Mbase 01: an affordable monophonic analog module dedicated to Kick drum creation.

The model Mbase 11 adds some updates and a brand new look.

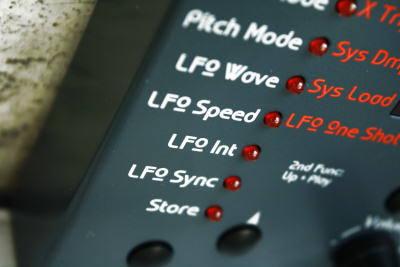

DRUM MACHINE Main panel features a basic 7 segments display, 1 knob, 16 leds, 1 rotary encoder and 4 buttons.

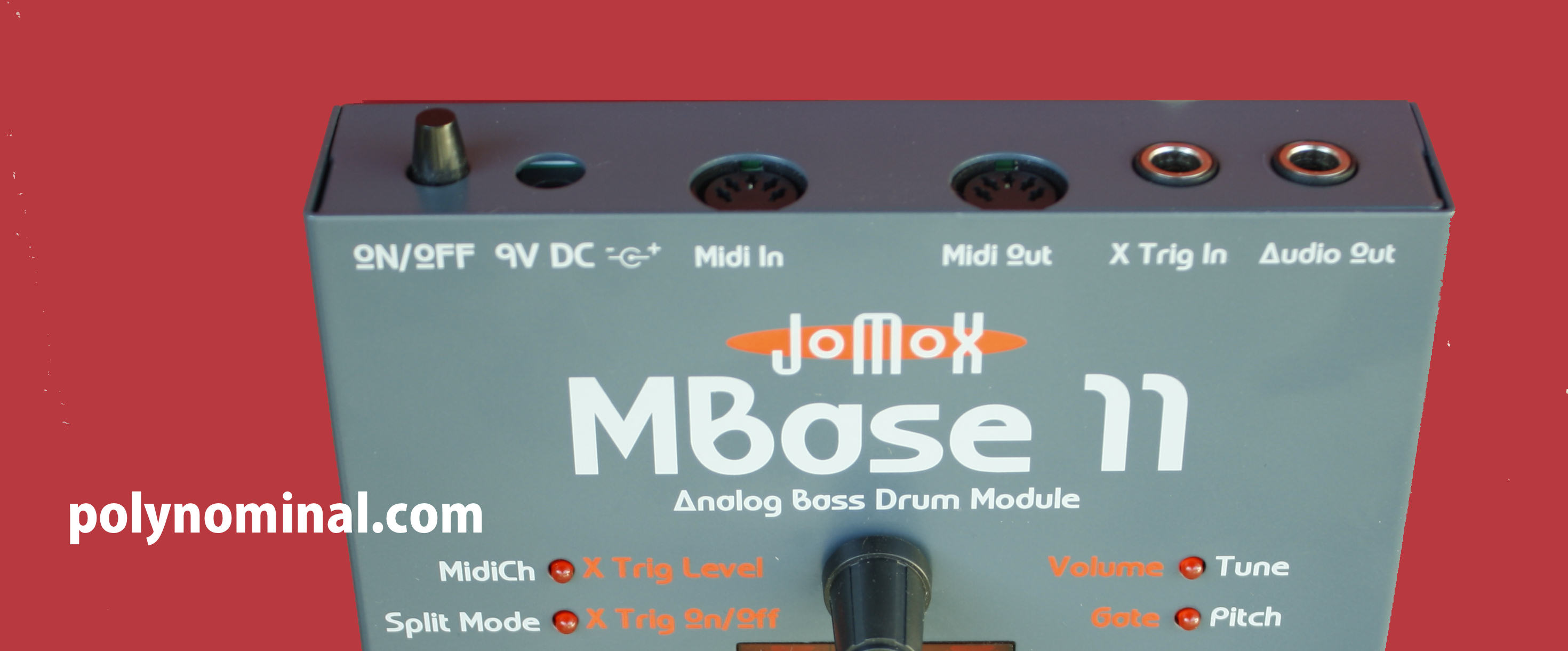

Rear panel terminal connectors:
- main signal out (mono)
- Midi interface (no THRU)
- Trigger input (signal threshold can be set).



Power supply is a 9V external PSU DC +)-





VOICE core based on PIC16F887 - 8-bit PIC Microcontroller manages 1 channel polyphony.

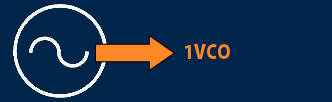

A single VCO generates Kicks (also kind of toms and basses). Jomox claimed that the bass drum VCO and the sound production are 100% identical to the XBase09, XBASE999 and the AirBase99 but with different value ranges.

Once created, the sound can be played in 3 ways:
- Midi (channel can be set)
- external analog trigger
- pushing the "play" button.

PARAMETERS the generated sound can be modified choosing a parameter per time:

- TUNE controls its pitch EG amount on VCO for warping
- PITCH overall tuning: starting from rumbling 10 Hz
- DECAY controls the generated EG decay up to a long time of 2 seconds
- HARMONICS adds harmonics to the sinewave with some distortions
- PULSE (attack) add a square impulse to the attack for click
- NOISE (attack) adds some white noise
- METZNE (metallized noise) changes the noise of the noise generator to a metallic noise.
- ATTACK ratio of added pulse and noise attack to the sine
- EQ simple lowpass filter attenuates high frequency
- VOLUME sets the main gain
- COMPRESSION adds dynamic compression
- GATE TIME sound can be gated from 0,1 to 16 ms.

PERFORMANCE using Midi triggering it is possible to choose different playmodes:
- Split mode 1: the sound is played only by C1 keys
- Split mode 2: the sound is played on all keyboard with pitch variations
- Pitch mode: chromatic play on 3 octaves.

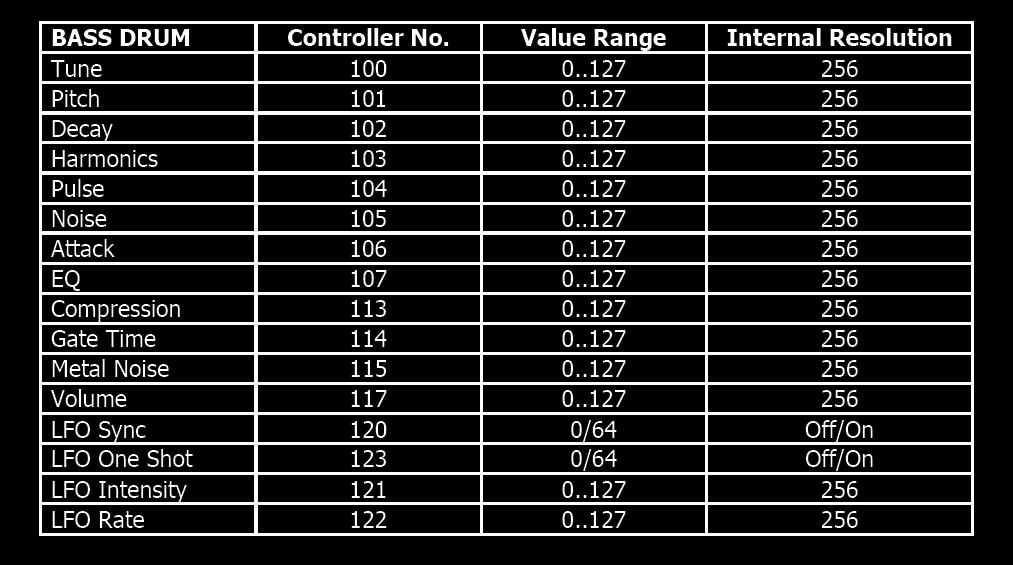

- MIDI all parameters can be controlled by Midi Control Changes. LIST



LFO a single modulator with possibile polarity inversion (shapes: saw up, saw down, sine up/down, triangle up/down and rectangle up/down) assigned to VCO PITCH.
The LFO frequency can be synched to Midi clock or manually set in a 41-290 BPM range.

MEMORY:
- 100 flash ROM sounds
- 10 RAM user sounds.
Created sounds can be dumped to Midi exclusives system.

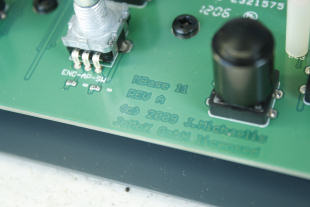

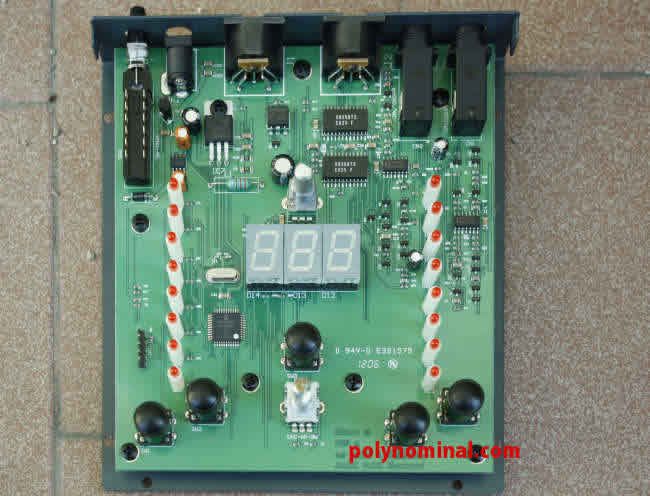

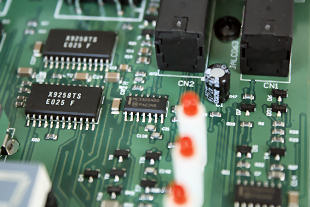

Jomox Mbase 11 guts

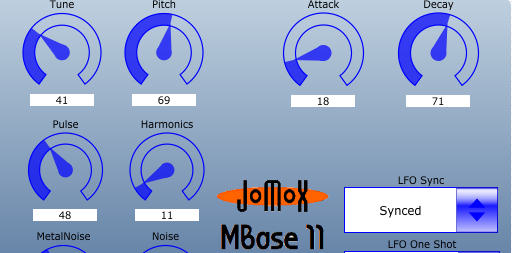

EDITORS some computer-based editor are handy:
- CTRLR (free)
- Editoral MBase11 Editor (win/mac $$$)



RELATED FAMILY:

	JOMOX MBRANE11 - Analog Percussion Synthesizer for snare/percussion production VIDEO
	JOMOX MBase01 previous model lacks parameters like Compression, Gate and Metallizer VIDEO



AUDIO DEMO

Jomox factory demo1 Jomox factory demo2 Jomox factory demo3 Jomox factory demo4 Jomox factory demo5 overdub Mbase11 we sampled the Mbase with Akai MPC60 we resampled the Mbase with Akai MPC60

TEST HARMONICS range TEST PULSE attack range TEST Decay range TEST EQ range TEST LFO freq TEST noise add

VIDEO CLIP SELECTION Demo with Roland TR-606 with korg electribe MX
