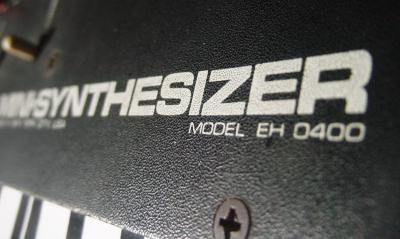

Electro harmonix Mini-Synthesizer (1980)
Model EH 0400



Basic monophonic synthesizer with a superb compact design and a membrane keyboard, similar concept found on EDP Wasp.

logo
tech

info KEYBOARD portable 25 membrane keys with no velocity but the IMPACT SENSOR circuit which opens filter to major pressure.
Synth bottom is made out of cheap cardboard which is a total shame.
The EHX synth features 7 sliders potentiometers, 6 two-ways switches and a built-in audio speaker.

Back panel
terminal connectors:
- audio signal output
- master tuning.

ac Power supply is a 9V external PSU or 2 x 9V batteries.





edit VOICE monophonic single analog oscillator structure.
A voice is composed by a 1 VCO pulse + 1 suboscillator (1 octave lower) which is obtained from divider structure, while octave function switches the VCO to 2 octaves below.




tech

minisynthesizer



edit
FILTER the VCF is resonant (Q switch) and the 2x switch steps the filters 1 octave up.


VCF





edit EFFECT
VCF phase function activates a phase shifting on the sound.


VCF




edit
ENVELOPE a single EG control on the cutoff filter: the START and STOP sliders set the lower and higher frequencies range at key down and up.





edit
LFO a very basic modulation on the VCO pulse rectangular width (PWM).


width




edit MAINTENANCE
after some pressures (and some years) the keyboard usually has some issues: it is necessary to refurbish the contacts using some homemade tricks or directly redisigning a new cardboard.

ehx minisynthesizer repair





edit RELATED FAMILY:

minisynthesizer 2

Mini-synthesizer Mk2 - with red script : adds an analog delay feature and an external filtering on the VCF, but it is the same machine.
