Crumar CPB-2
Analog Bass Pedal Synthesizer







Crumar CPB-2


info Country: Italy
Weight: / Kg
Dimensions: / mm
audio demo trend price : 300€
  demo comments

Crumar CPB-2
Bass Pedal Synthesizer (1980)

Italian Analog bass synthesizer from early 80: definitely not a Moog Taurus, but more like the Eko bass pedal series. Second version of the CPB1 mk1 with some "new" features.
info this page is incomplete and can be updated, if you have more info, sounds or material, just share it.

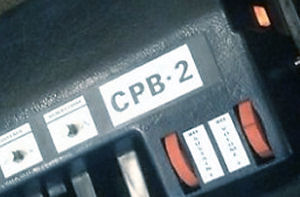

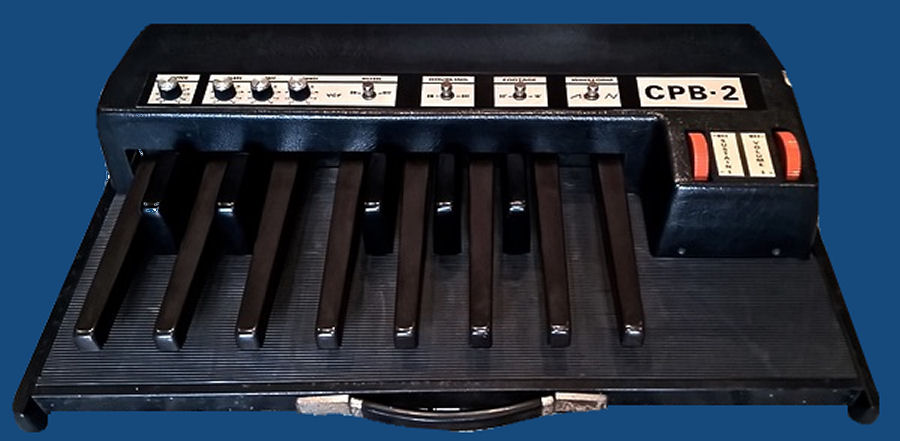

front

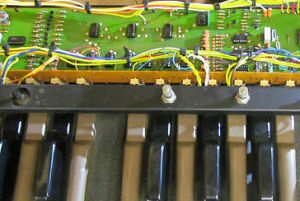

circuit

info PEDALBOARD 13 keys pedal keys no display, pretty essential, produced in both 110 and 220V.

Back panel terminal connectors:
- Mono out
- VDE input
- no midi, cv or else.




edit TECH
single monophony VCO system with 2 octaves height (32 ' + 16') + tuning and 2 waveforms:

voice

- SAW VCO demo

- TRIANGLE VCO demo



editPERFORMANCE not much, no CV no MIdi, just your pretty feet.

pedal




edit FILTER analog resonance low pass filter with EG.

VCF demo Hear the acid filter




edit ENVELOPE 1 EGs with 2 segments:

EG

- Sustain

- Release





edit EFFECTS the DOUBLING is an analog chorus with fixed values.


CHORUS










edit MEMORY none

SN




edit RELATED FAMILY:

Mk1 Crumar CPB-1 First MK1 version
BASSMAN BASS MAN modern from 2010: digital osc and analog gilter





demoVST PLUGIN / SAMPLED VERSION no official Crumar plugin nor samples.

n/a n/a n/a


Company: Crumar
Model: CPB-2
Class: synth
Keys: 13 pedal
Dates: 1980
Display: none
Synthesis: analog
Synthesis: subtractive
Polyphony: 1 voice
Multitimbric: 1 part
Oscillator: 1 VCO
Filter: analog low pass
LFO: none
Envelope: 2 EG s
Memory: none
Effects: none
CPU: none
IC: CEM3320 + 3340




demoDEMO:

demo acid
demo wave1
demo wave2

demohave some crumar
demo?
upload!



manual

manual



edit Sample SHOP
edit Report Error
edit DONATE


manual
-SERVICE MANUAL / SCHEMATICS
- USER MANUAL




Crumar cpb2 FOR SALE


CHECK OUT EBAY OFFERS



pedal moog sustain
awardSPECIAL AWARDS:
solid
rare

solid
old school


comment

REVIEW "a kind of weird Tb303 like sound - lol fun and pretty rare"

manual manual
-rare - limited
-acid
- poor features
