Solton MDR 16









info Country: Italy
Weight: 4 Kg
Dimensions: 380 x 80 x 290 mm
audio demo trend price : 30€
  demo comments

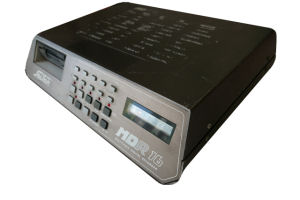

Solton MDR16 (1986)
Multi track digital recorder



Not really a synthesizer but an obsolete 16-tracks Midi player/recorder with Floppy disk storage.

SEQUENCER
title

info main panel features a 16 X 2 lines Push button keyboard 0 - 9. Operating modes: PLAY, EDIT, MIDI-CLOCK, DISK. Other controls: START, STOP, ENTER, DOWN, UP.

Back panel terminal connectors:
- MIDI IN / OUT / THRU
- SYNC IN / OUT (5 v. TTL).
- Metronome Audio output +volume: Low, High, Off.
- Start/Stop Footswitch.
- Trigger Input



edit RECORD: Real Time or Step by Step.

record - Some various QUANTIZE option: 1/4, 1/8, 1/12, 1/16, 1/24, 1/32, 1/48, 1/96.
- Step by Step programmable musical notes or rest: 1/1, 1/2, 1/4, 1/8, 1/12, 1/16, 1/24, 1/32, 1/48, 1/64.
- TIME SIGNATURE: Any value between 1/4 and 16/8.
-Track selection: MASTERTRACK, SUBTRACK, TEMPORARY TRACK.
- TIE and GATE Fuctions





edit
EDIT: some limited internal edit:

edit -Master, Sub., Temporary, Mixing of Sub and Tempo to Master. - MIDI channel modification
- Calling-up a MIDI channel from master to Sub. Modificatio an of Tempo, Voice Program, Transposer, Quantize and Time Signature.
- BLANK, DELETE, INSERT, COPY and LOOP functions.


edit PLAY Number of the Song, Track selection: Master, Sub, Tempo
MIDI channel used in the Song. Bars and notes used in the Song. TRANSPOSER: Transposer range: 1 octave down - 1 octave up.




editDISK
: 3 1/2" double sided - double density, 1 Megabyte (about 160.000 notes).

Internal functions:

- INITIALIZING

- SAVE Song, LOAD Song, VERIFY Song, Song LIST, Disk FREE

- RENAME Song, DELETE Song, LOCK/UNLOCK Song.

- Disk BACKUP



editMIDI
Accepted MIDI informations: Note On/Off, Program Change, Key Velocity, Pitch Bend, Control Change, After Touch, Exclusive Message, Echo back.






edit
SYNC: 4 Clock types: INTERNAL, EXTERNAL, TRIGGER, MIDI.
- Clock values available for SYNC IN: 1, 2, 4, 8, 12, 24, 48, 96
- values available for SYNC OUT: 12, 24, 48, 96.
- Synchronization with external trigger.
- tempo rage from 30 to 255 BPM




editMEMORY
: Internal RAM of 64 Kbytes - non volatile:

edit

- 12.000 notes
- 16 songs











edit GALLERY:

m3r artwork




Company: Solton
Model: Mdr16
Class: sequencer
Dates: 1986
Display: 16 x 2 LCD
Polyphony: none
Multitimbric: 16 parts
Tempo: 30 to 255
Memory: 12.000 notes
- 16 songs
Storage : 1,4 mb FD
Sync: Midi / trigger



demoDEMO:

demo Song: doom seq1
demo Song: doom seq2

demohave some MDR16
demo?
upload!



edit Sample SHOP
edit Report Error
edit SUPPORT US



manual

manual


manual
-SERVICE MANUAL / SCHEMATICS
-EPROM OS DUMP
- MORE INFO



Solton MDR16 FOR SALE


CHECK OUT EBAY OFFERS



solton multitrack
awardSPECIAL AWARDS:
solid
vintage tool

solid
CHEAP as HELL


comment

REVIEW n/a

manual manual
- old fashion -obsolete
-cheap
- storage
