VOICE the synthesizer features 2 oscillators VCO (with crossmodulation) that can be played either in MONOPHONIC mode or independently in DUOPHONIC one. Both VCOs can be set at different volume gain and mixed with a white noise generator and external filtered signal input.
TECH:
for some strange reason the glide mode only affects VCO1 .
PIC: Polivoks waveform on vacuum oscilloscope.
| |
VCO1 |
VCO2 |
| gain |
yes |
yes |
| octaves |
32' 16' 8' 4' 2' |
32' 16' 8' 4' 2' |
| detune |
master tune |
yes |
| shapes |
tri / saw/ sqr / pulse1 / pulse2 |
tri / saw/ sqr / pulse1 / pulse2 |
click on pic for translation
FILTER famous screaming 2-poles resonant filter with contour mode and true aggressive auto-oscillation that can be set to :
- Lowpass
- High pass
mode.
click on pic for translation
ENVELOPE 2 main EGS with 4-segments ADSR :
- EG1 VCA
- EG2 VCF.
Both EGS can be switched to
either standard ADSR or to special REPEAT (auto-trigger) mode.
Special GATE - VCA switch for continuous DRONE mode.
click on pic for translation
LFO a single modulator features 4 shapes (triangle, square, samplehold and noise) and 4 destinations:
- VCF cutoff
- VCO1 pitch
- VCO2 pitch
- VCA amplitude.
click on pic for translation
MODIFICATION classic mod is the CV gate INPUT (1V/oct.) which is kind of "easy" or internal MIDI.
RELATED FAMILY:
|
New Polivoks - desktop remake clone with midi features VIDEO
|
 |
Some filter clones for modular.
erica polivoks VCO + VCF, also stompbox acidbox VIDEO
-harvestman polivoks VCF VIDEO |
 |
MUTABLE SHRUTHI - open source project, version with Polivoks filters VIDEO |
VST PLUGIN / SAMPLED VERSION there are some free VST and samples set:
AUDIO DEMO warming! a lot of HIGH FREQUENCIES here: protect your hear and speakers!
 VIDEO CLIP SELECTION
|
Country: Russia
trend price : 1000€

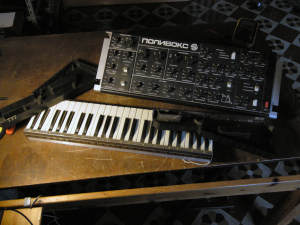

KEYBOARD 48 keys keyboard. Main panel features 6 switches, 5 rotary selector and 28 knobs- no modulation or pitch bending wheels.
